Two-way 12G-SDI Fiber Converter with SMPTE FUW-PUW Connector

Home Telecast AV Broadcast SDI Fiber Optic Extender 4K 12G-SDI Fiber Optic Extender Two-way 12G-SDI Fiber Converter with SMP

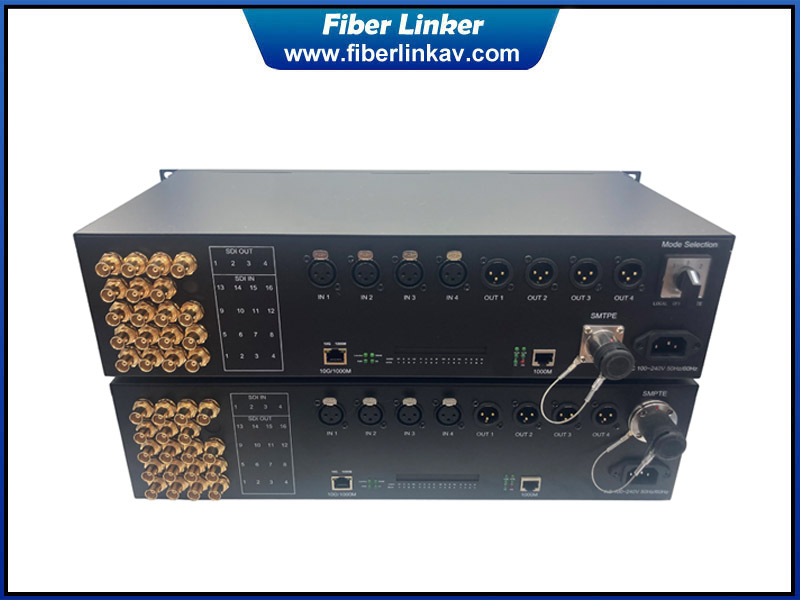

Two-way 12G-SDI Fiber Converter with SMPTE FUW-PUW Connector

  • Product Item:FLG164PSA
  • Max 20 channels 12G-SDI
  • Support 10G Ethernet
  • Support 3K.93C SMPTE311M and SMPTE304M
  • Support FUW-PUW HDTV Hybrid Fiber cable
  • Category:4K 12G-SDI Fiber Optic Extender
  • Inquiry Send Email Manual Download

    Description

    Description

    Beijing Fiber Linker has been in video audio transmission system solution for over 10 years. This 12G-SDI fiber converter support max 20 channels SDI with 10G bandwidth Ethernet and external line audio over SMPTE 311M and SMPTE304M type FXW and EDW connector so it could support remote power supply over FUW-PUW HDTV hybrid fiber cable. Our SDI fiber optic extender has been widely used in our domestic and overseas for broadcast TV transmission system. We could do SDI extender over fiber by CWDM, DWDM and TDM uncompressed solution with data, external audio Ethernet, tally and other functions. The fiber connectors could be ST, FC, SC, LC, SMPTE, LEMO type. We welcome any OEM request for SDI over fiber series.

    Features

    1.16-ch forward 12G-SDI and 4-ch reverse 12G-SDI
    2.Support 1-ch Gigabit Ethernet, 1-ch 10G Ethernet
    3.Support 4 forward and 4 reverse analog line audio
    4.Compatible with 6G-SDI, 3G-SDI, HD-SDI, SD-SDI
    5.Bandwidth range from 270Mb/s to 11.88Gb/s
    6.SMPTE ST 2082-1 (11.88Gb/s) clock recovery
    7.SMPTE 292M, 259M, 296M, 297M, 372M, 424M, 425M, ST-2081, ST-2082
    8.Support automatic cable equalization based on the data rate detected
    9.LED status indicators monitor the critical parameters
    10.SMPTE304M/SMPTE311M FXW and EDW connector
    11.Support remote power supply from EDW to FXW end
    12.Support OEM configuration according to real needs
    13.Optional CWDM or DWDM solution
    Specifications

    SDI Input

    Number

    16 input on TX box, 4 input on RX box

    TV signal standard

    SMPTE ST 2082, SMPTE ST 2081, SMPTE ST 424, SMPTE ST 425, SMPTE ST 292, SMPTE ST 259

    Reflection loss

    >4DB @12G

    Equilibrium

    >50M @ 12Gb/s

    Connector

    75Ω BNC

    SDI Output

    Number

    16 output on RX box, 4 output on TX box

    Signal level

    800mV nominal

    Rise/fall time

    <135ps @3G-SDI ,<80ps @6G UHD-SDI

    <45ps @12G UHD-SDI

    Overshoot

    <10% amplitude

    Reflection loss

    > 15dB

    Jitter

    < 0.5UI

    Connector

    75Ω BNC

    Ethernet

    RJ45 Connector

    1-ch 1000M bandwidth and 1-ch 10G bandwidth

    Audio

    XLR connector

    4-ch bidirectional analog balance audio

    Fiber Optic

    Connector

    3K.93C FXW and EDW

    Type/Distance

    800meter with SMPTE hybrid fiber cable

    Wavelength

    CWDM

    Pure Fiber Distance

    10KM

    Output Power

    About +3 dB to -5dB

    Fiber Loss

    4 dB

    Power and Environmental

    Operating temperature

    -40℃~+45℃

    Power Supply

    110 to 245VAC and remote power supply

    Power Consumption

    About 12W

    EMI/RFI

    FCC Part 15 Class A, EU EMC standard

    MTBF

    >100000 hours

    Other

    Size

    2.5U rack mount

    Weight

    11Kg (TX+RX)

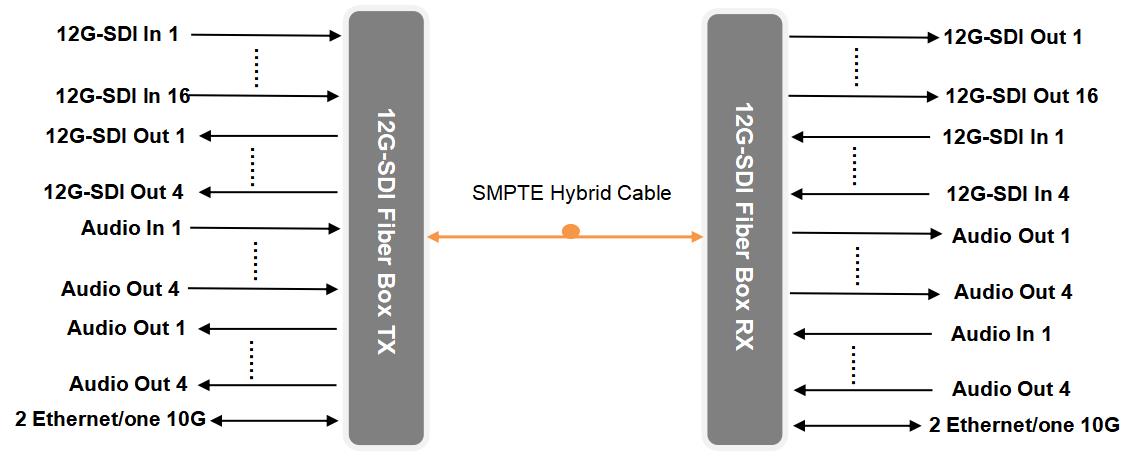

    Diagram
