Multiple Functional 4K Broadcast Camera Link 12G-SDI FIber Optic Extender

Home Telecast AV Broadcast SDI Fiber Optic Extender 4K 12G-SDI Fiber Optic Extender Multiple Functional 4K Broadcast Camera

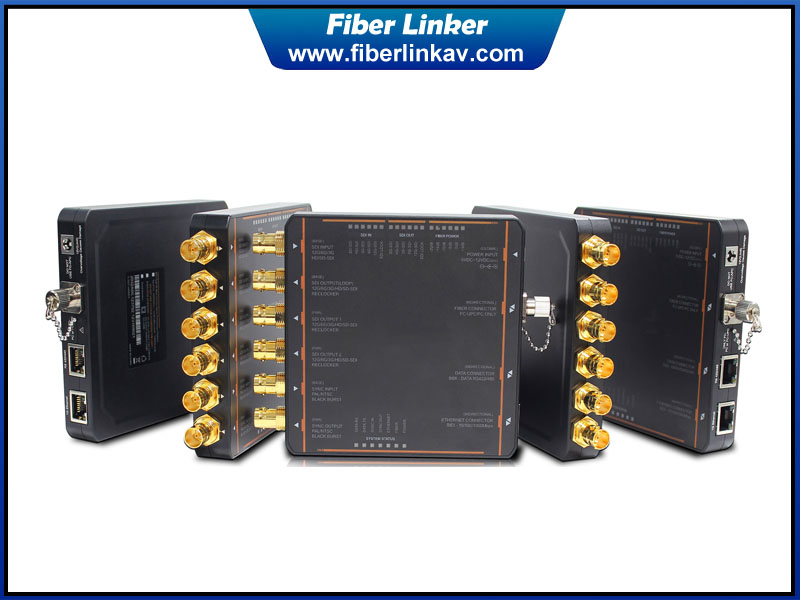

Multiple Functional 4K Broadcast Camera Link 12G-SDI FIber Optic Extender

  • Product Item:FLG11BP
  • 1-ch bidirectional 12G-SDI
  • 1-ch bidirectional SYNC BB
  • High rate RS422 for sony 700 protocol
  • single fiber transmission
  • Category:4K 12G-SDI Fiber Optic Extender
  • Inquiry Send Email Manual Download

    Description

    Description

    This is bi-directional 12G-SDI transmission compatible with 6G/3G/HD/SD over fiber optic cable. The 12G-SDI fiber converter has 2-channel 4K interface, which can form a bi-directional 4K transmission link. The transmitting end has a loop-out port, and the receiving end has 2 double output. It supports SMPTE ST-2082 full format signal transmission, and is backward compatible with signals of different formats and different rates such as 5.94Gbps/5.934Gbps, 2.97Gbps/2.967Gbps, 1.485Gbps/1.4835Gbps and 270Mbps, meeting the requirements of SD to 4K format transmission over optic. It also support Genlock SYNC BB and Trilevel signal, Gigabit Ethernet, hight speed RS422 and RS485 with compatible with Sony 700 protocol

    Feature

    1. 1-ch bidirectional 4K@60Hz 12G-SDI with loop out
    2. 1-ch bidirectional SYNC BB and Tri-level siginal
    3. 1-ch duplex high rate RS422 and RS485
    4. 1-ch duplex full Gigabit Ethernet
    5. Compatible with 6G-SDI, 3G-SDI, HD-SDI, SD-SDI
    6. Bandwidth range from 270Mb/s to 11.88Gb/s
    7. SMPTE ST 2082-1 (11.88Gb/s) clock recovery
    8. SMPTE 292M, 259M, 296M, 297M, 372M, 424M, 425M, ST-2081, ST-2082
    9. Support automatic cable equalization based on the data rate detected
    10. LED status indicators monitor the critical parameters
    11. Single core fiber cable, FC connector, 10KM.
    12. Support broadcast pathological signal transmission
    13. 5-15VDC power supply

    Specification

    SDI Input

    Number

    1 input on TX and 1 input on RX

    TV signal standard

    SMPTE ST 2082, SMPTE ST 2081, SMPTE ST 424, SMPTE ST 425, SMPTE ST 292, SMPTE ST 259

    Reflection loss

    >4DB @12G

    Equilibrium

    >50M @ 12Gb/s

    Connector

    75Ω BNC

    SDI Output

    Number

    2 output on TX and 2 output on RX

    Signal level

    800mV nominal

    Rise/fall time

    <135ps @3G-SDI ,<80ps @6G UHD-SDI

    <45ps @12G UHD-SDI

    Overshoot

    <10% amplitude

    Reflection loss

    > 15dB

    Jitter

    < 0.5UI

    Connector

    75Ω BNC

    SNYC BB and Tri-level

    1-ch input on TX and RX,  1-ch output on TX and RX

    Video format

    PAL/SECAM/NTSC

    Input level

    0.5~2Vpp

    Output level

    1Vpp

    Low-Pass Filters

    SD Channels:–3 dB at 9.5 MHz,

    Fixed Full-HD Channels: –3 dB at 72 MHz(optional)

    Connector

    75Ω BNC

    RS422/485

    Number

    1 channel RS422 and RS485(support sony700 protocol)

    Format

    Standard rate is 2Mbps, optional up to 12Mpbs.

    Support NRZ, RZI and Manchester, Full/half duplex

    Connector

    RJ45

    Ethernet

    Number

    1 channel full duplex

    Bandwidth

    10/100/1000M adaptive Ethernet

    Connector

    RJ45

    Fiber Optic

    Channel

    1

    Type/Distance

    Single-mode/10KM standard

    Wavelength

    CWDM inside

    Connector

    FC/UPC

    Output Power

    About +3 dB to -5dB

    Receiver sensitivity

    -4dB for 10KM, 20KM optional

    Power and Environmental

    Operating temperature

    -40℃~+45℃

    Power Supply

    5V to 15V

    Power Consumption

    About 6W

    EMI/RFI

    FCC Part 15 Class A, EU EMC standard

    MTBF

    >100000 hours

    Other

    Size

    116x116x20mm

    Weight

    3Kg (TX+RX)

    Application

    Remote OB Van/Truck Video Feeds, Broadcast Studio Camera Feeds, TV station/video conference, broadcast live transmission, Medical/Surgical Room Broadcast, Building to Building video conference, video wall controller, commend center.

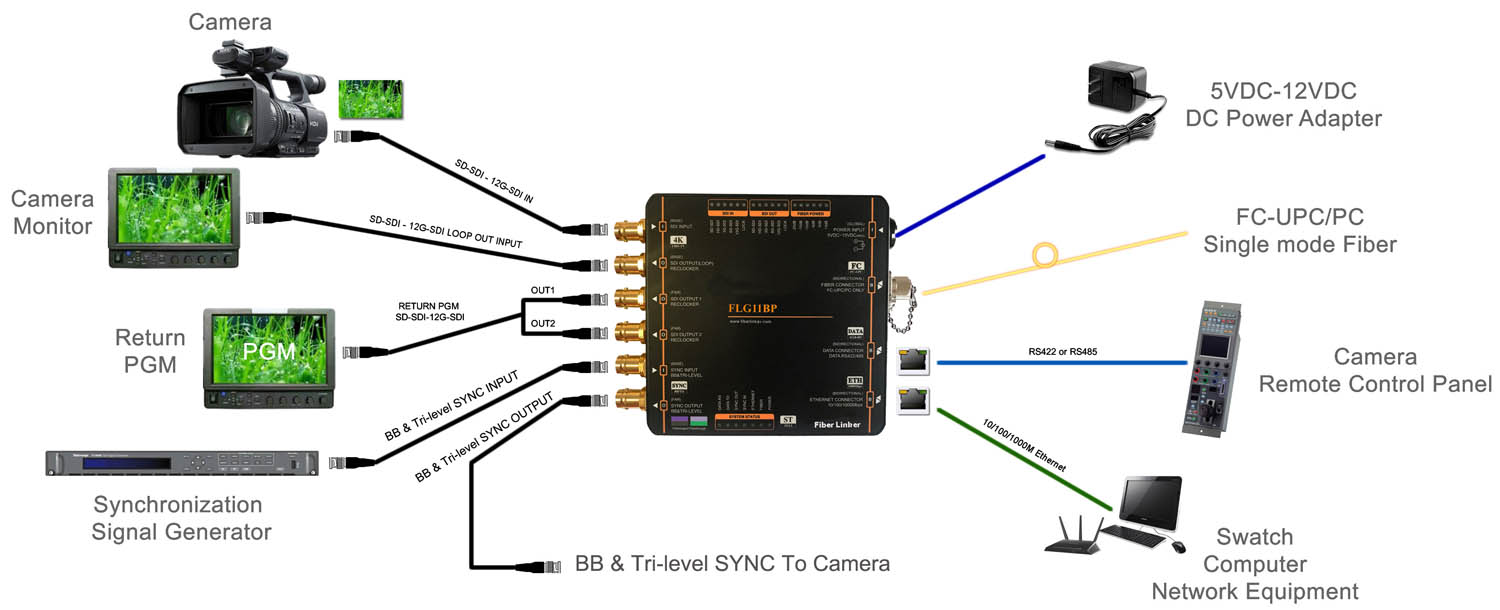

    Diagram
