2-ch Bidirectional 12G-SDI Fiber Extender and Converter with 4 core optic cables

Home Telecast AV Broadcast SDI Fiber Optic Extender 4K 12G-SDI Fiber Optic Extender 2-ch Bidirectional 12G-SDI Fiber Extende

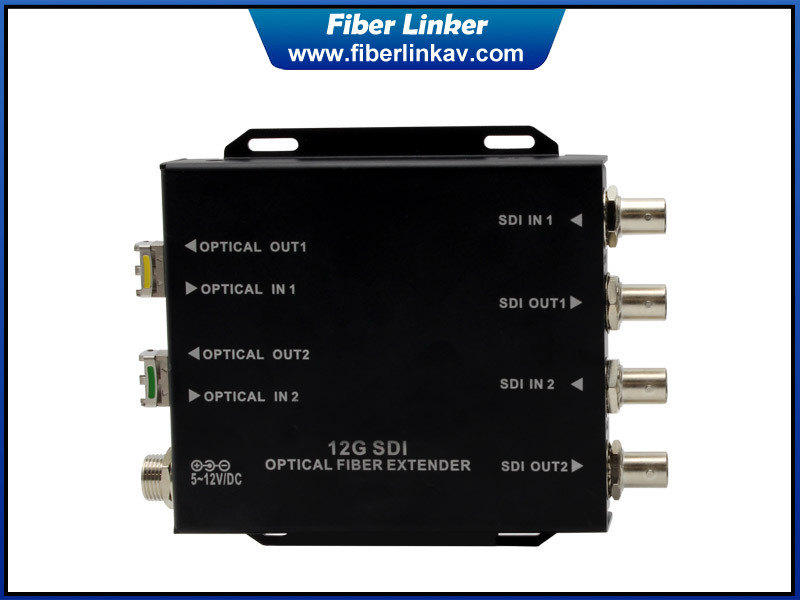

2-ch Bidirectional 12G-SDI Fiber Extender and Converter with 4 core optic cables

  • Product Item:FLG20B
  • 2-Way 12G-SDI fiber optic transmission
  • 2 SFP for 4 fiber cables
  • Compatible with 6G-SDI/3G/HD-SDI
  • CWDM 12G-SDI optical module optional
  • Category:4K 12G-SDI Fiber Optic Extender
  • Inquiry Send Email

    Description

    Description

    4K 12G-SDI fiber optic extender makes possible transmission of two groups of bidirectional 12G SDI signals in a long distance. 2 SFP optional modules could make the transmission system more easy and flexible. Our SDI fiber optic extender has been widely used in our domestic and overseas for broadcast TV transmission system. We could do SDI extender over fiber by CWDM, DWDM and TDM uncompressed solution with data, external audio Ethernet, tally and other functions. The fiber connectors could be ST, FC, SC, LC, SMPTE, LEMO type. We welcome any OEM request for SDI over fiber series.

    Features

    1. 2-ch bidirectional 12G-SDI over 4 fiber cables
    2. 2 pcs SFP module, each for 1-ch bidirectional SDI
    3. Compatible with 12G-SDI, 6G-SDI HD-SDI,SD-SDI
    4. Bandwidth range from 125Mb/s to 11.88Gb/s
    5. SMPTE ST 2082-1 (11.88Gb/s) clock recovery
    6. SMPTE 292M, 259M, 296M, 297M, 372M, 424M, 425M, 2081, 2082,DVB-ASI,MADI
    7. CDR embedded in the receiver
    8. Support automatic cable equalization based on the data rate detected
    9. LED status indicators monitor the critical parameters
    10. Optional CWDM wavelength
    11. It is a excellent flexible solution for your own cwdm fiber transmission system

    Specification

    SDI Input

    Number

    Max 2 input on TX and 2 input on RX

    TV signal standard

    SMPTE ST 2082-1, SMPTE ST 2081-1, SMPTE ST 424, SMPTE ST 292-1, SMPTE ST 259, DVB-ASI(270M),MADI(125M)

    Reflection loss

    >4DB @12G

    Equilibrium

    >50M @ 12Gb/s

    Connector

    75Ω BNC

    SDI Output

    Number

    Max 2 input on TX and 2 input on RX

    Signal level

    800mV nominal

    Rise/fall time

    <135ps   @3G-SDI ,<80ps   @6G UHD-SDI

    <45ps   @12G UHD-SDI

    Overshoot

    <10% amplitude

    Reflection loss

    > 15dB

    Jitter

    < 0.5UI

    Connector

    75Ω BNC

    Fiber Optic

    Channel

    4 max

    Type/Distance

    Single-mode/20KM standard

    Wavelength

    1310nm normal, CWDM wavelength optional

    Connector

    LC/UPC

    Output Power

    About +3dB to -5dB

    Receiver sensitivity

    -6dB for 20KM

    Power and Environmental

    Operating temperature

    -40℃~+45℃

    Power Supply

    5V to 12V

    Power Consumption

    4.5W@5V

    EMI/RFI

    FCC Part 15 Class A, EU EMC standard

    MTBF

    >100000 hours

    Other

    Size

    129.59(W)x11.6 (D) x23.9(H

    Weight

    2Kg (TX+RX)






    Application

    Remote OB Van/Truck Video Feeds, Broadcast Studio Camera Feeds, TV station/video conference, broadcast live transmission, Medical/Surgical Room Broadcast, Building to Building video conference, video wall controller, commend center.

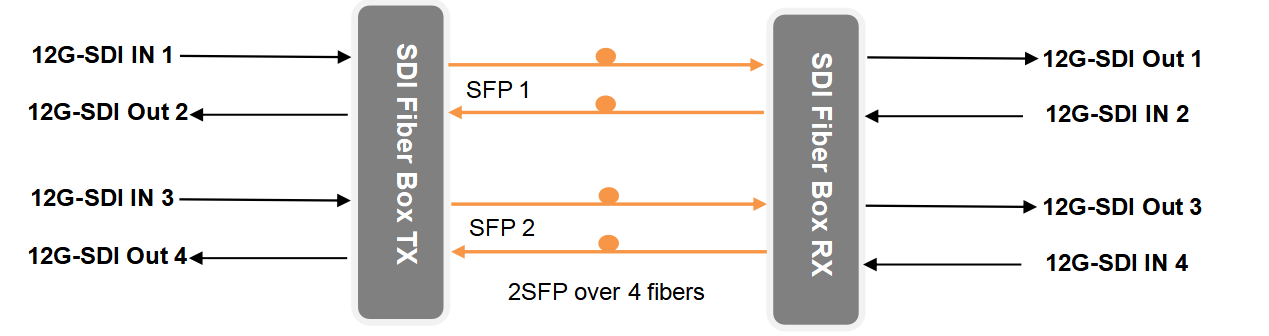

    Diagram
