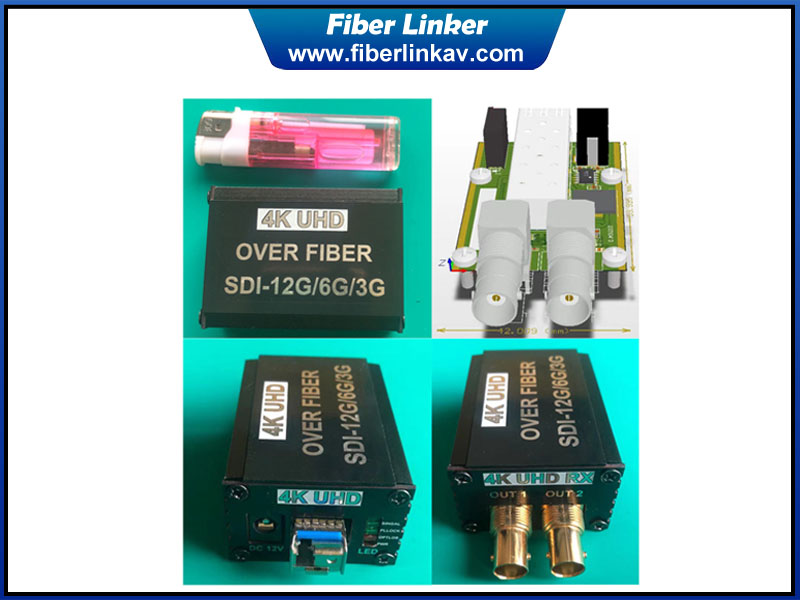

12G-SDI to fiber converter could transmit 4K@60Hz resolution of 12G-SDI signal with 11.88Gb bandwidth over single core fiber cable. it is compatible with 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SD-SDI, ASI, TS stream(auto switching) and SMPTE 292M, 259M, 296M, 297M, 372M, 424M, 425M, 2081, 2082
Features
1. 1-ch 4K@60Hz 12G-SDI with loop out
2. Compatible with 6G-SDI, 3G-SDI, HD-SDI, SD-SDI
3. Bandwidth range from 270Mb/s to 11.88Gb/s
4. SMPTE ST 2082-1 (11.88Gb/s) clock recovery
5. SMPTE 292M, 259M, 296M, 297M, 372M, 424M, 425M, ST-2081, ST-2082
6. Support automatic cable equalization based on the data rate detected
7. LED status indicators monitor the critical parameters
8. Single core fiber cable, LC/SFP connector, 10KM.
9. Support broadcast pathological signal transmission
10. 5-12VDC power supply
11. Support multiple 12G-SDI over CWDM solution
Specification
|
SDI Input |
Number |
1 input with loop |
|
TV signal standard |
SMPTE ST 2082, SMPTE ST 2081, SMPTE ST 424, SMPTE ST 425, SMPTE ST 292, SMPTE ST 259 |
|
|
Reflection loss |
>4DB @12G |
|
|
Equilibrium |
>50M @ 12Gb/s |
|
|
Connector |
75Ω BNC |
|
|
SDI Output |
Number |
2 output |
|
Signal level |
800mV nominal |
|
|
Rise/fall time |
<135ps @3G-SDI ,<80ps @6G UHD-SDI <45ps @12G UHD-SDI |
|
|
Overshoot |
<10% amplitude |
|
|
Reflection loss |
> 15dB |
|
|
Jitter |
< 0.5UI |
|
|
Connector |
75Ω BNC |
|
|
Fiber Optic |
Channel |
1 |
|
Type/Distance |
Single-mode/10KM standard |
|
|
Wavelength |
1310nm or 1550nm |
|
|
Connector |
LC/UPC |
|
|
Output Power |
About +3 dB to -5dB |
|
|
Receiver sensitivity |
Standard 10KM, 20KM optional |
|
|
Power and Environmental |
Operating temperature |
-40℃～＋45℃ |
|
Power Supply |
5V to 12V |
|
|
Power Consumption |
About 6W |
|
|
EMI/RFI |
FCC Part 15 Class A, EU EMC standard |
|
|
MTBF |
>100000 hours |
|
|
Other |
Size |
70X45X30mm |
|
Weight |
1.5Kg (TX+RX） |
Remote OB Van/Truck Video Feeds, Broadcast Studio Camera Feeds, TV station/video conference, broadcast live transmission, Medical/Surgical Room Broadcast, Building to Building video conference, video wall controller, commend center.

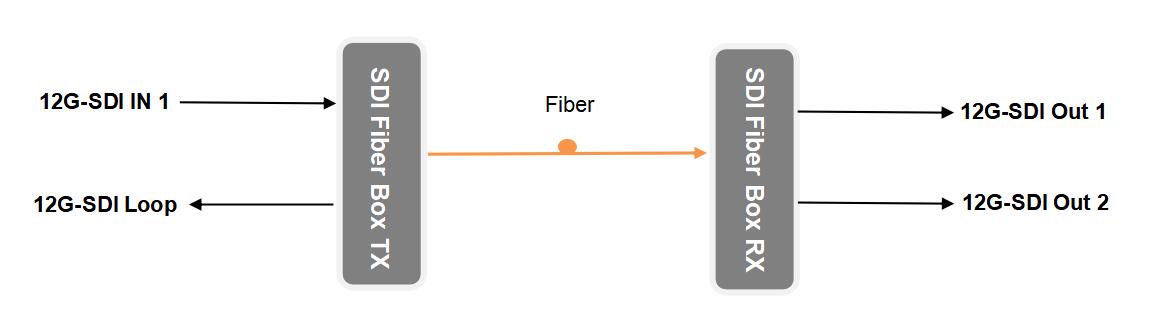

Diagram
