Single link 12G-SDI and Quad Link 4X3G to HDMI converter

Home Telecast AV Broadcast Video Converter and Distributor Single link 12G-SDI and Quad Link 4X3G t

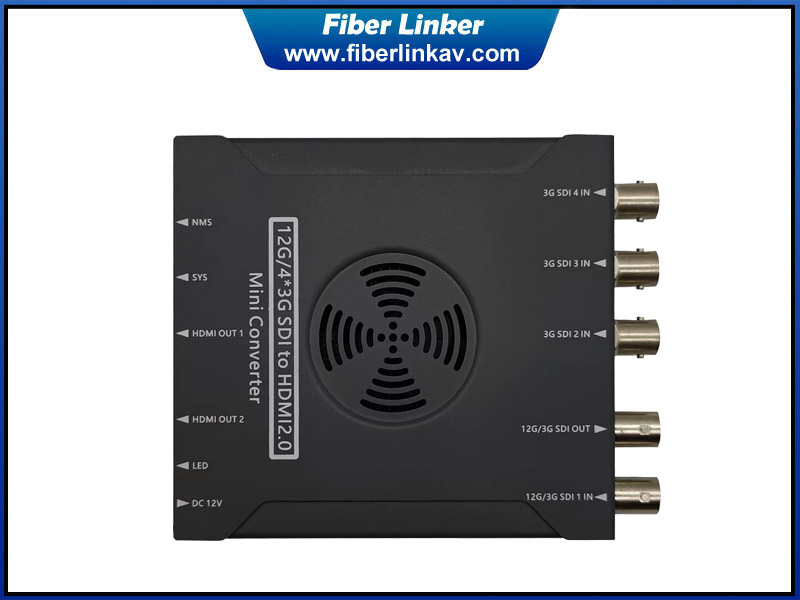

Single link 12G-SDI and Quad Link 4X3G to HDMI converter

  • Product Item:FL2160
  • 12G-SDI to HDMI2.0 converter
  • 4X3G to HDMI2.0 converter
  • 2SI and SQD mode
  • SDI to HDMI conversion
  • Category:Broadcast Video Converter and Distributor
  • Inquiry Send Email Manual Download

    Description

    Description

    12G-SDI/4X3G to HDMI2.0 Converter supports two modes with single linke 12G-SDI to HDMI and 4x3G to HDMI. 4X3G input supports 2SI and SQD video format. Single link 12G-SDI or quad link 3G-SDI signals can be connected to HDMI 4K devices. Its built-in down converter can realize 4K HD monitoring on HD TV. It is an ideal solution to convert the SDI signal of a broadcast camera into a consumer-grade HDMI signal! It can be widely used in various scenarios such as 4K non-linear editing, 4K studio, 4K broadcast system, 4K OB truck, 4K demonstration system, etc.The product is a full hardware architecture, with high stability, high reliability, and easy-to-use characteristics

    Features

    1.4K resolution SDI and HDMI converter
    2.Support 12G-SDI to 2x HDMI (1x4K,1x1080P)
    3.Single link 12G to HDMI with one 12G loop out
    4.Support 4X3G-SDI to HDMI2.0 (1x4K,1x1080P)
    5.4X3G-SDI to HDMI with one 3G-SDI loop out
    6.Support both 2SI and SQD 4X3G video format
    7.NMS reserved for updating or management
    8.Support LED indication
    9.DIN switch to control conversion mode
    10. Stand alone housing for easy operation

    Specification

    Video input

    12G-SDIx1 or 4x3G-SDI x 1

    UHD mode

    Input 2SI/SQD, output 2SI/SQD selection (dip switch)

    HD video format

    720p50.720p59.94.720p60.1080p23.98.1080p24.1080p25.1080p29.97. 1080p30. 1080p50. 1080p60. 1080i30.1080i50.1080i59.94.1080i60

    UHD video format

    3840x2160p: 60/59.94/50/30/29.97/25/24/23.98

    Video output

    HDMI2.0x1, HDMI1.3x1, 12G/3G-SDIX1

    Format conversion

    Down conversion

    SDI specification

    SMPTE292M; SMPTE259M;SMPTE296M; SMPTE372M; SMPTE424M-B and SMPTE425M; SMPTE ST-2081

    Audio input

    Embedded audio support

    SDI video sampling

    4:2:2 and 4:4:4

    SDI audio sampling

    TV standard sampling rate 48kHz;24bit

    SDI color accuracy

    4:2:2 and 4:4:4

    SDI color space

    YUV and RGB

    SDI auto switching

    Automatic detection of HD and 12G-SDI

    HDMI video format

    525i29.97 NTSC.625i25 PAL.720p50.720p59.94.720p60.1080p23.98.1080p24. 1080p25.1080p29.97.1080p30.1080p50.1080p59.94.1080p60.1080i50. 1080i59.94.1080i60 2160p23.98.2160p24.2160p25.2160p29.97.2160p30,2160P50/59.94/60

    HDMI color accuracy

    4:2:2 and 4:4:4

    HDMI color space

    YUV and RGB

    Software control

    Upgrade the software through the RJ45 interface of Mac OS and Windows computer

    Settings control

    Small dial switch

    Operating system

    Mac 10.14 Mojave,Mac 10.15 Catalina or higher. Windows 7 and 10 operating systems.

    Power Supply

    12V@3A

    Power Consumption

    About 6W

    EMI/RFI

    FCC Part 15 Class A, EU EMC standard

    MTBF

    >100000 hours

    Size

    114X103X29mm

    Weight

    0.7Kg

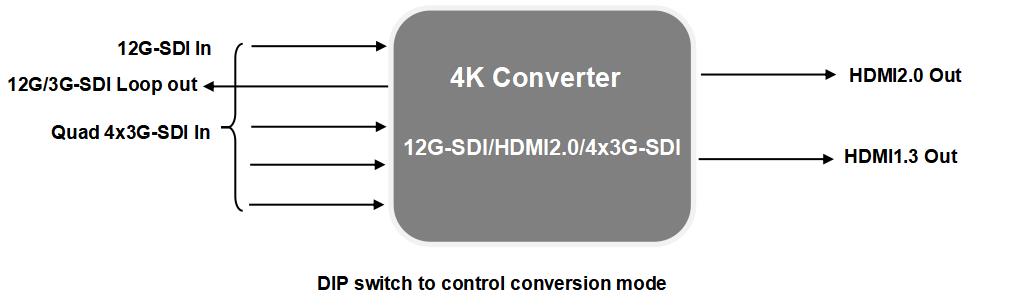

    Diagram
