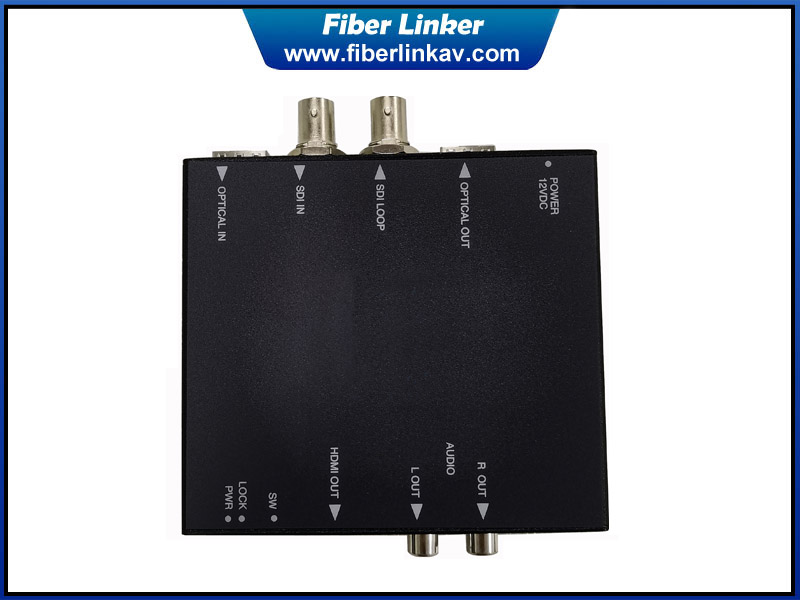

This converter transforms 12G-SDI to HDMI 2.0 video signal with raw image fidelity. Support resolution up to UltraHD 4K60Hz. The converter provides an easy-to-deploy connectivity from professional 4K 12G-SDI devices to HDMI2.0 input displays for professional workflows. It features a single-link 12G-SDI input and a relocked SDI loop output for simpler SDI confidence monitoring or delivery of SDI pipelines.
This converter is also equipped with fiber SFP input and output which can send or receive 4K signals over a long distance connected to other fiber optic video sources.
Features
1.12G-SDI input to HDMI 2.0 output at up to 4K60P
2.4K SDI/HDMI fiber extender could be made up of multiple 12G-SDI to HDMI and HDMI2.0 to 12G-SDI converters as cascade chain transmission
3.Support 4:4:4/4:2:2/4:2:0 HDMI 2.0 output
4.Support 12G-SDI input with loop out for monitor
5.Compatible with 6G/3G/HD/SD-SDI
6.Support one 12G-SDI SFP module input(simplex)
7.Support one 12G-SDI SFP module output(simplex)
8.12G-SDI optical transmission up to 80KM
9.Support 8-ch and 24 bits SDI embedded audio
10.Support HDMI embedded audio or de-embedded 2-ch analog RCA audio output
11.Support LED indication and easy operation
Specification
Video input
12G-SDI BNC x1
SMPTE Standard
SMPTE ST2082, SMPTE ST2081, SMPTE 424M, SMPTE425M, SMPTE 292M, SMPTE296M , SMPTE 259M, SMPTE344M
HD video format
720p50.720p59.94.720p60.1080p23.98.1080p24.1080p25.1080p29.97. 1080p30. 1080p50. 1080p60. 1080i30.1080i50.1080i59.94.1080i60
UHD video format
4096 x 2160/3840x2160p: 60/59.94/50/30/29.97/25/24/23.98
Audio input
Embedded audio support
SDI sampling
4:2:2 and 4:4:4
Audio sampling
TV standard sampling rate 48kHz;24bit
Color accuracy
4:2:2 and 4:4:4
Color space
YUV and RGB
Auto switching
Automatic detection of HD and 12G-SDI
Video output
HDMI2.0x1, 12G-SDI loop out X1
HDMI video format
NTSC.625i25.525i29.97 PAL.720p50.720p59.94.720p60.1080p23.98.1080p24. 1080p25.1080p29.97.1080p30.1080p50.1080p59.94.1080p60.1080i50. 1080i59.94.1080i60 2160p23.98.2160p24.2160p25.2160p29.97.2160p30.2160p60
HDMI accuracy
4:2:2 and 4:4:4
Color space
YUV and RGB
Optical fiber
SFP input X1, SFP output x1(simplex one way SFP, 12G-SDI bandwidth, up to 80KM, SFP input and 12G-SDI BNC input option by DIP switch )
Audio output
HDMI embedded audio or de-embedded 2-ch analog RCA audio output
Power Supply
12VDC
Power Consumption
About 10W
EMI/RFI
FCC Part 15 Class A, EU EMC standard
MTBF
>100000 hours
Size
105X92X29mm
Weight
0.5Kg
Diagram

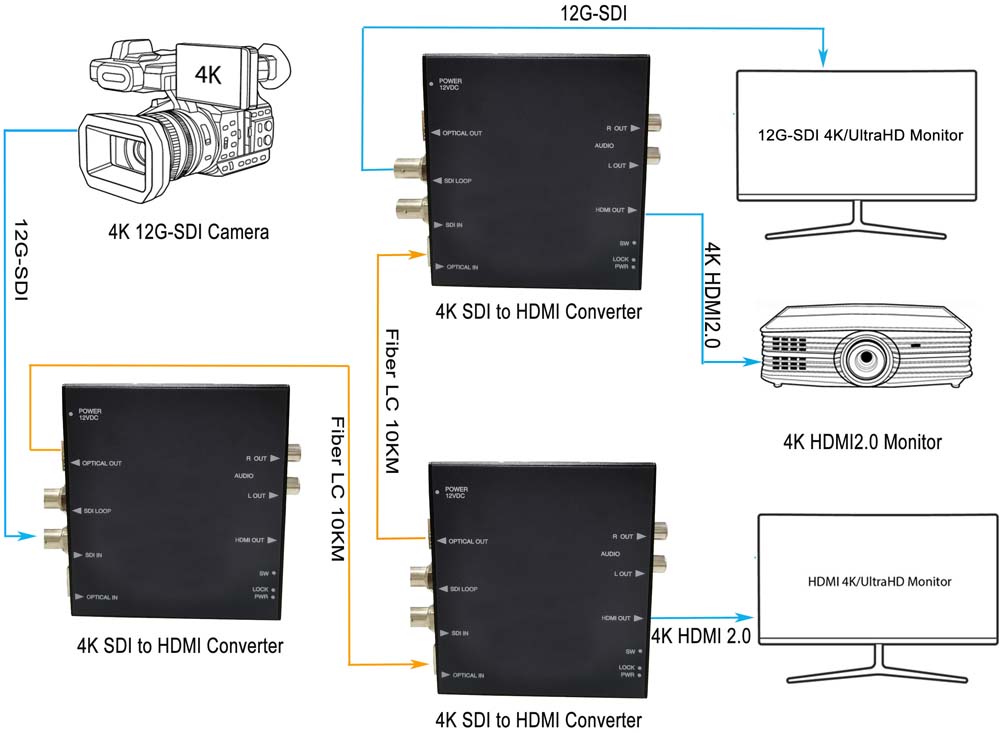

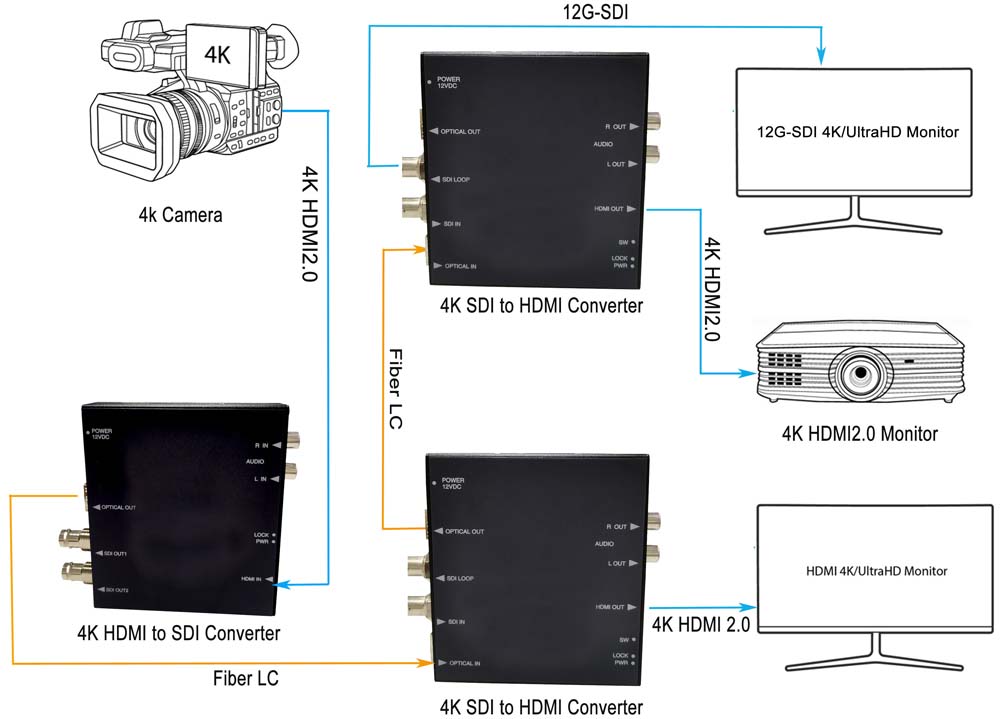

1. 4K60Hz 12G-SDI to 12G-SDI/HDMI 2.0 Optical Fiber Extender Cascade Application with Converters
2. 4K60Hz HDMI 2.0 Optical Fiber Extender Cascade Application with HDMI 2.0 to 12G-SDI Converter
