Description
Description

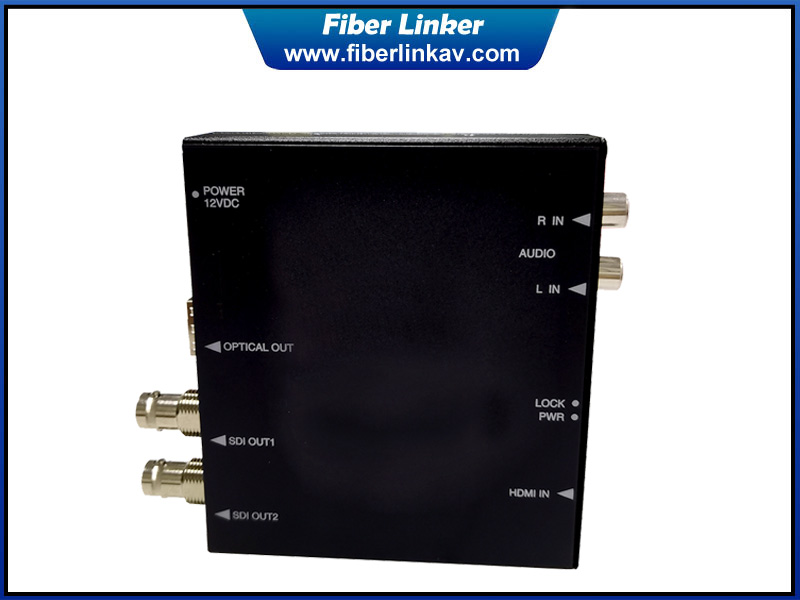

This 4K HDMI 2.0 to 12G-SDI converter supplies single link video signal conversion. Support resolution up to UltraHD 4K60Hz. The converter provides one 4K60Hz HDMI input and 2 channels 12G-SDI output so it also could extend HDMI video to far end over coax cable. It also supplies two analog RCA audio to be embedded.
This converter is also equipped with fiber SFP output. It can send 4K HDMI signals over a long distance connected to other fiber optic video sources like our 12G-SDI to HDMI2.0 converter with 12G-SDI optical fiber SFP module installed
Features
1.HDMI 2.0 input to 12G-SDI output at up to 4K60P
2.4K HDMI2.0 fiber extender could be made up of multiple HDMI2.0 to 12G-SDI converters and 12G-SDI to HDMI as cascade chain transmission
3.Support 4:4:4/4:2:2/4:2:0 HDMI 2.0 input
4.Support 2 channels 12G-SDI output for monitors
5.Compatible with 6G/3G/HD/SD-SDI
6.Support one 12G-SDI SFP module output(simplex)
7.Optical fiber transmission up to 80KM
8.Support HDCP and EDID
9.Support HDMI embedded audio or embedded 2-ch analog RCA audio input
10.Support LED indication and easy operation
Specifcations
|
Video input |
HDMI2.0x1 |
|
HDMI video format |
NTSC.625i25.525i29.97 PAL.720p50.720p59.94.720p60.1080p23.98.1080p24. 1080p25.1080p29.97.1080p30.1080p50.1080p59.94.1080p60.1080i50. 1080i59.94.1080i60 2160p23.98.2160p24.2160p25.2160p29.97.2160p30.2160p60 |
|
HDMI color accuracy |
4:2:2 and 4:4:4 |
|
HDMI color space |
YUV and RGB |
|
Audio input |
HDMI embedded audio or embedded 2-ch analog RCA audio input |
|
Video output |
12G-SDI BNC x2 |
|
SMPTE Standard |
SMPTE ST2082, SMPTE ST2081, SMPTE 424M, SMPTE425M, SMPTE 292M, SMPTE296M , SMPTE 259M, SMPTE344M |
|
HD video format |
720p50.720p59.94.720p60.1080p23.98.1080p24.1080p25.1080p29.97. 1080p30. 1080p50. 1080p60. 1080i30.1080i50.1080i59.94.1080i60 |
|
UHD video format |
4096 x 2160/3840x2160p: 60/59.94/50/30/29.97/25/24/23.98 |
|
SDI autoswitching |
Automatic detection of HD and 12G-SDI |
|
Optical fiber |
SFP output x1(simplex one way SFP, 12G-SDI bandwidth, up to 80KM, SFP and 12G-SDI BNC could output at the same time ) |
|
Power Supply |
12VDC |
|
Power Consumption |
About 10W |
|
EMI/RFI |
FCC Part 15 Class A, EU EMC standard |
|
MTBF |
>100000 hours |
|
Size |
105X92X29mm |
|
Weight |
0.5Kg |

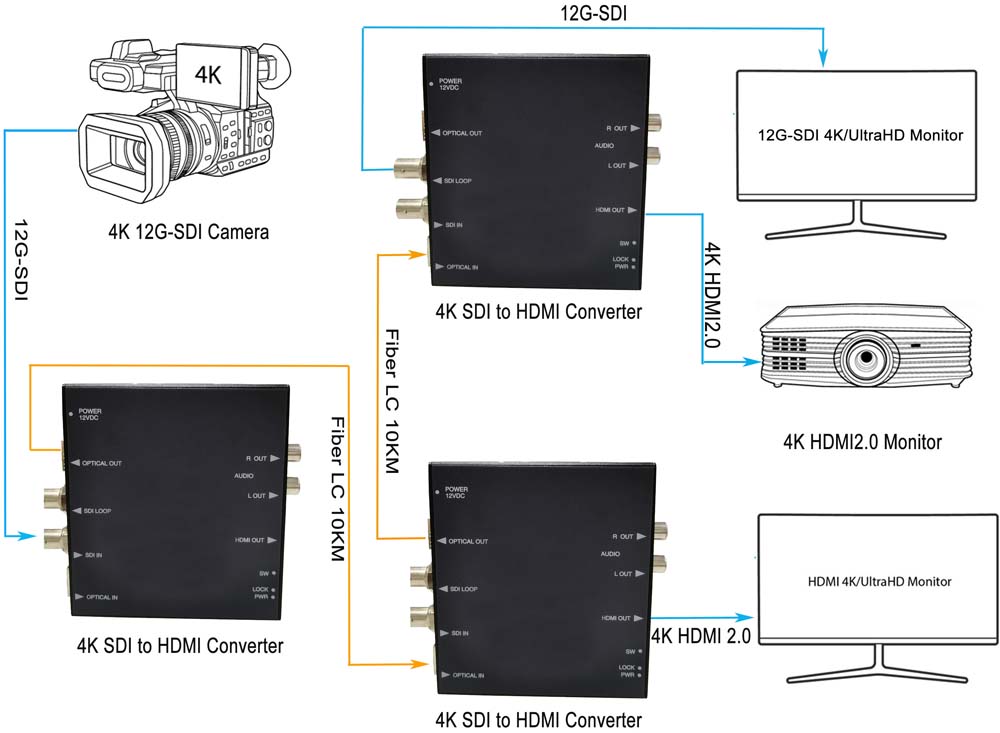

1. 4K60Hz 12G-SDI to 12G-SDI/HDMI 2.0 Optical Fiber Extender Cascade Application with Converters

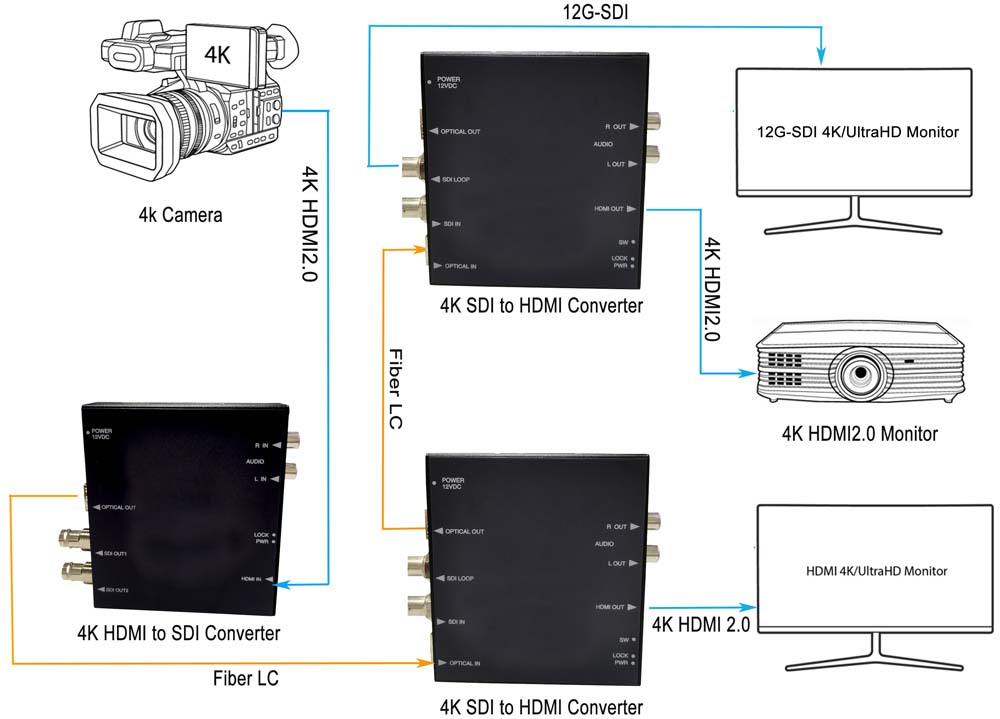

2. 4K60Hz HDMI 2.0 Optical Fiber Extender Cascade Application with HDMI 2.0 to 12G-SDI Converter
