4K UHD 12G-SDI to Quad 4X3G-SDI Converter

Home Telecast AV Broadcast Video Converter and Distributor 4K UHD 12G-SDI to Quad 4X3G-SDI Converte

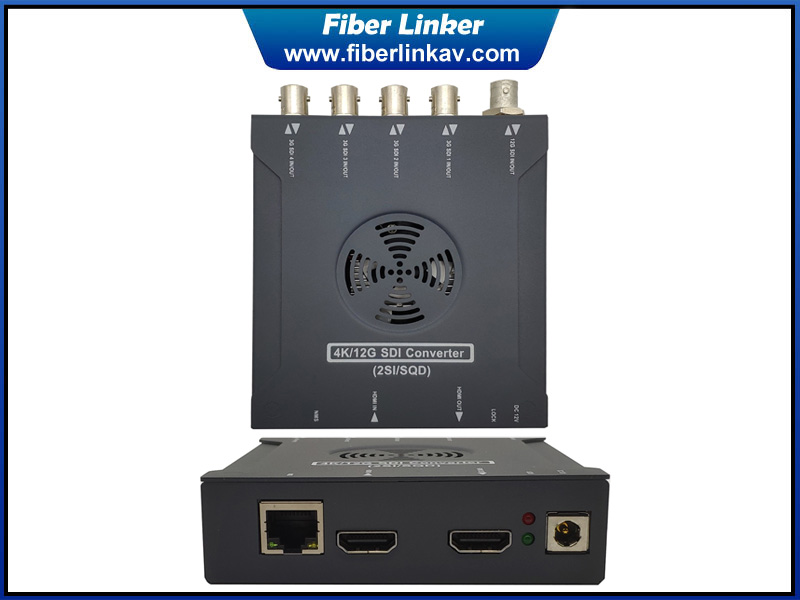

4K UHD 12G-SDI to Quad 4X3G-SDI Converter

  • Product Item:FL2163
  • Multiple format conversion
  • support 12G-SDI/Quad 3G-SDI/HDMI2.0
  • Support 6 conversion mode
  • broadcast quality mini converter
  • Category:Broadcast Video Converter and Distributor
  • Inquiry Send Email Manual Download

    Description

    Description

    12G-SDI/4X3G/HDMI2.0 Converter supports 2SI and SQD video format. Single link 12G-SDI or quad link 3G-SDI signals can be connected to HDMI 4K devices that support 4K HD, and the product also supports single link 12G-SDI or quad link 3G-SDI conversion! Its built-in down converter can realize 4K HD monitoring on HD TV. It is an ideal solution to convert the SDI signal of a broadcast camera into a consumer-grade HDMI signal! It can be widely used in various scenarios such as 4K non-linear editing, 4K studio, 4K broadcast system, 4K OB truck, 4K demonstration system, etc.The product is a full hardware architecture, with high stability, high reliability, and easy-to-use characteristics

    Features

    1. 4K resolution SDI and HDMI converter
    2. Support 12G-SDI to HDMI2.0 conversion
    3. Support HDMI2.0 to 12G-SDI conversion
    4. Support HDMI2.0 to 4X3G-SDI conversion
    5. Support 12G-SDI to 4X3G-SDI conversion
    6. Support 4X3G-SDI to 12G-SDI conversion
    7. Support 4X3G-SDI to HDMI2.0 conversion
    8. Support both 2SI and SQD 4X3G video format
    9. NMS reserved for updating or management
    10. Support LED indication
    11. DIN switch to control conversion mode

    Specifications

    Video input

    12G-SDIx1 or 4x3G-SDI x 1 (two-way multiplexing) ,HDMI2.0x1

    UHD mode

    Input 2SI/SQD, output 2SI/SQD selection (dip switch)

    HD video format

    720p50.720p59.94.720p60.1080p23.98.1080p24.1080p25.1080p29.97. 1080p30. 1080p50. 1080p60. 1080i30.1080i50.1080i59.94.1080i60

    UHD video format

    3840x2160p: 60/59.94/50/30/29.97/25/24/23.98

    Video output

    12G-SDIx1 or 4x3G-SDI x 1 (two-way multiplexing) ,HDMI2.0x1

    Format conversion

    Down conversion

    SDI specification

    SMPTE292M; SMPTE259M;SMPTE296M; SMPTE372M; SMPTE424M-B and SMPTE425M; SMPTE ST-2081

    Audio input

    Embedded audio support

    SDI video sampling

    4:2:2 and 4:4:4

    SDI audio sampling

    TV standard sampling rate 48kHz;24bit

    SDI color accuracy

    4:2:2 and 4:4:4

    SDI color space

    YUV and RGB

    SDI auto switching

    Automatic detection of HD and 12G-SDI

    HDMI video format

    525i29.97 NTSC.625i25 PAL.720p50.720p59.94.720p60.1080p23.98.1080p24. 1080p25.1080p29.97.1080p30.1080p50.1080p59.94.1080p60.1080i50. 1080i59.94.1080i60 2160p23.98.2160p24.2160p25.2160p29.97.2160p30.

    HDMI color accuracy

    4:2:2 and 4:4:4

    HDMI color space

    YUV and RGB

    Software control

    Upgrade the software through the RJ45 interface of Mac OS and Windows computer

    Settings control

    Small dial switch

    Operating system

    Mac 10.14 Mojave,Mac 10.15 Catalina or higher. Windows 7 and 10 operating systems.

    Power Supply

    12V@3A

    Power Consumption

    About 6W

    EMI/RFI

    FCC Part 15 Class A, EU EMC standard

    MTBF

    >100000 hours

    Size

    114X103X29mm

    Weight

    0.7Kg

    Diagram
