Single Link 12G-SDI To HDMI2.0 Converter With De-embedded Audio Out

Home Telecast AV Broadcast Video Converter and Distributor Single Link 12G-SDI To HDMI2.0 Converter

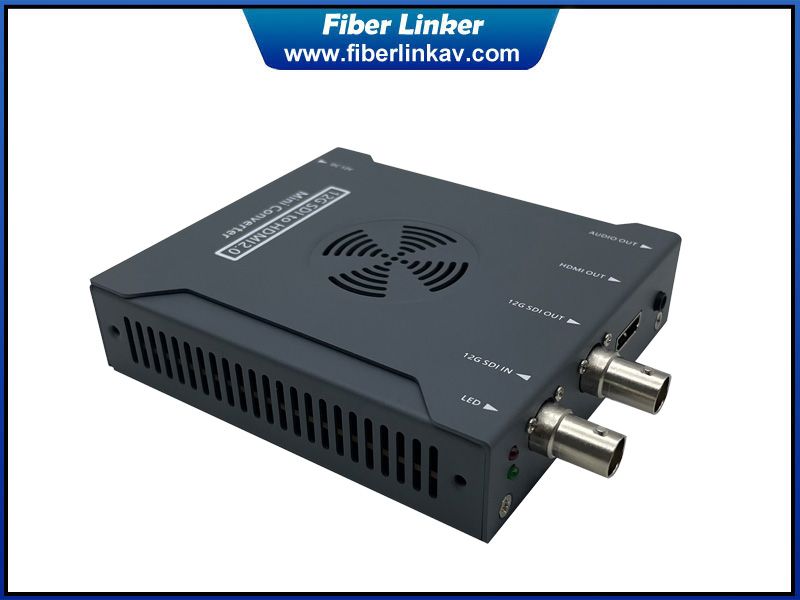

Single Link 12G-SDI To HDMI2.0 Converter With De-embedded Audio Out

  • Product Item:FL216SH
  • 12G-SDI to HDMI Converter
  • 4K HDMI2.0 Converter
  • one 12G to HDMI2.0
  • support 12G-SDI loop and Audio De-embedded
  • Category:Broadcast Video Converter and Distributor
  • Inquiry Send Email Manual Download

    Description

    Description

    12G-SDI to HDMI2.0 Converter supports single link 12G-SDI to HDMI video conversion.It supports De-embedded audio output. We also have HDMI to 12G-SDI converter, 12G-SDI to 4X3G converter, 4X3G to 12 converter, and 4X3G to HDMI converter. Its built-in down converter can realize 4K HD monitoring on HD TV. It is an ideal solution to convert the SDI signal of a broadcast camera into a consumer-grade HDMI signal! It can be widely used in various scenarios such as 4K non-linear editing, 4K studio, 4K broadcast system, 4K OB truck, 4K demonstration system, etc.The product is a full hardware architecture, with high stability, high reliability, and easy-to-use characteristics

    Features

    1.4K resolution SDI To HDMI converter
    2.Support 12G/6G/3G/HD-SDI
    3.Support 12G-SDI loop out
    4.Support YUV444 、YUV422、RGB444
    5.Support 4096*2160 P60 and compatible with lower
    6.Support HDR, SDI reclock
    7.Support 1U or 2U rack mount management
    8.Support LED indication
    9.Optional 12G/4X3G/HDMI2.0 other type conversion
    10. Stand alone housing for easy operation
    Specifications

    Video input

    12G/6G/3G/HD-SDIx1

    BNC interface

    IEC169-8 standard

    HD video format

    720p50.720p59.94.720p60.1080p23.98.1080p24.1080p25.1080p29.97. 1080p30. 1080p50. 1080p60. 1080i30.1080i50.1080i59.94.1080i60

    UHD video format

    3840x2160p: 60/59.94/50/30/29.97/25/24/23.98

    Video output

    HDMI2.0x1, 12G-SDI loop X1

    Format conversion

    Down conversion

    SDI specification

    SMPTE292M; SMPTE259M;SMPTE296M; SMPTE372M; SMPTE424M-B and SMPTE425M; SMPTE ST-2081

    Audio output

    De-embedded audio support, 3.5mm

    SDI video sampling

    4:2:2 and 4:4:4

    SDI audio sampling

    TV standard sampling rate 48kHz;24bit

    SDI color accuracy

    4:2:2 and 4:4:4

    SDI color space

    YUV and RGB

    SDI auto switching

    Automatic detection of HD and 12G-SDI

    HDMI video format

    525i29.97 NTSC.625i25 PAL.720p50.720p59.94.720p60.1080p23.98.1080p24. 1080p25.1080p29.97.1080p30.1080p50.1080p59.94.1080p60.1080i50. 1080i59.94.1080i60 2160p23.98.2160p24.2160p25.2160p29.97.2160p30.

    HDMI color accuracy

    4:2:2 and 4:4:4

    HDMI color space

    YUV and RGB

    Power Supply

    12V@1A

    Power Consumption

    About 2.5W

    EMI/RFI

    FCC Part 15 Class A, EU EMC standard

    MTBF

    >100000 hours

    Size

    129X100X27mm

    Weight

    0.3Kg

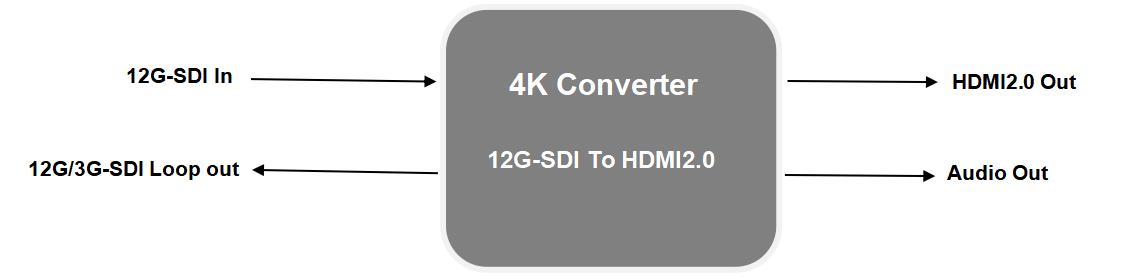

    Diagram
