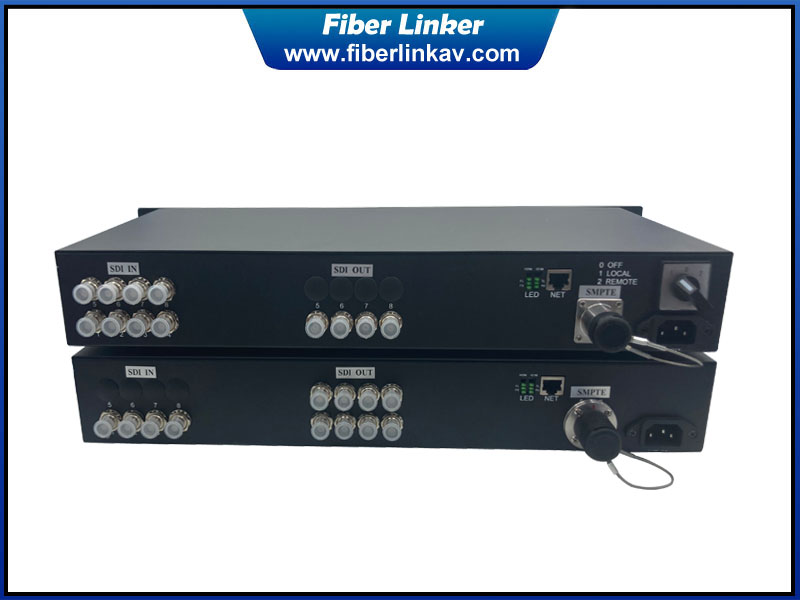

Multiple 12G-SDI Fiber Extender over SMPTE 3K.93C Connector

  • Product Item:FLG84PS
  • 4K@60Hz 12G-SDI video
  • Compatible with 6G/3G/HD-SDI
  • 8 forward and 4 reverse 12G-SDI
  • 12G-SDI over SMPTE311M and SMPTE304M 3K.93C connector
  • Category:4K 12G-SDI Fiber Optic Extender
  • Inquiry Send Email Manual Download

    Description

    Specification

    This multiple 12G-SDI Fiber Extender works with SMPTE304M/311M 3K.93C connector to transmit 8-ch forward 12G-SDI, 4-ch reverse 12G-SDI with Gigabit Ethernet. Using FUW-PUW HDTV hybird fiber cable could extend signal upto 2KM. Our SDI fiber optic extender has been widely used in our domestic and overseas for broadcast TV transmission system. We could do SDI extender over fiber by CWDM, DWDM and TDM uncompressed solution with data, external audio Ethernet, tally and other functions. The fiber connectors could be ST, FC, SC, LC, SMPTE, LEMO type. We welcome any OEM request for SDI over fiber series.

    Feature

    1. 8-ch forward 12G-SDI and 4-ch reverse 12G-SDI
    2. Support 1-ch Gigabit Ethernet
    3. Compatible with 6G-SDI, 3G-SDI, HD-SDI, SD-SDI
    4. Bandwidth range from 270Mb/s to 11.88Gb/s
    5. SMPTE ST 2082-1 (11.88Gb/s) clock recovery
    6. SMPTE 292M, 259M, 296M, 297M, 372M, 424M, 425M, ST-2081, ST-2082
    7. Support automatic cable equalization based on the data rate detected
    8. LED status indicators monitor the critical parameters
    9. SMPTE311/304M 3K.93C connector for fiber optic.
    10. Suport one box to supply power to the other box
    11. Support OEM configuration according to real requirement
    12. Support CWDM or DWDM solution

    Specification

    SDI Input

    Number

    8 input on TX box, 4 input on RX box

    TV signal standard

    SMPTE ST 2082, SMPTE ST 2081, SMPTE ST 424, SMPTE ST 425, SMPTE ST 292, SMPTE ST 259

    Reflection loss

    >4DB @12G

    Equilibrium

    >50M @ 12Gb/s

    Connector

    75Ω BNC

    SDI Output

    Number

    8 output on RX box, 4 output on TX box

    Signal level

    800mV nominal

    Rise/fall time

    <135ps @3G-SDI ,<80ps @6G UHD-SDI

    <45ps @12G UHD-SDI

    Overshoot

    <10% amplitude

    Reflection loss

    > 15dB

    Jitter

    < 0.5UI

    Connector

    75Ω BNC

    Ethernet

    RJ45 Connector

    1-ch 1000M bandwidth

    CVBS

    BNC connector

    Optional

    Fiber Optic

    Channel

    2 core inside

    Type/Distance

    2KM over SMPTE Cable
    10KM over Single-mode/pure fiber

    Wavelength

    CWDM

    Connector

    3K.93C SMPTE

    Output Power

    About +3 dB to -5dB

    Receiver sensitivity

    -6db for 10KM

    Power and Environmental

    Operating temperature

    -40℃~+45℃

    Power Supply

    110 to 245VAC

    Power Consumption

    About 12W

    EMI/RFI

    FCC Part 15 Class A, EU EMC standard

    MTBF

    >100000 hours

    Other

    Size

    1.5U rack mount

    Weight

    9Kg (TX+RX)

    Application

    Remote OB Van/Truck Video Feeds, Broadcast Studio Camera Feeds, TV station/video conference, broadcast live transmission, Medical/Surgical Room Broadcast, Building to Building video conference, video wall controller, commend center.

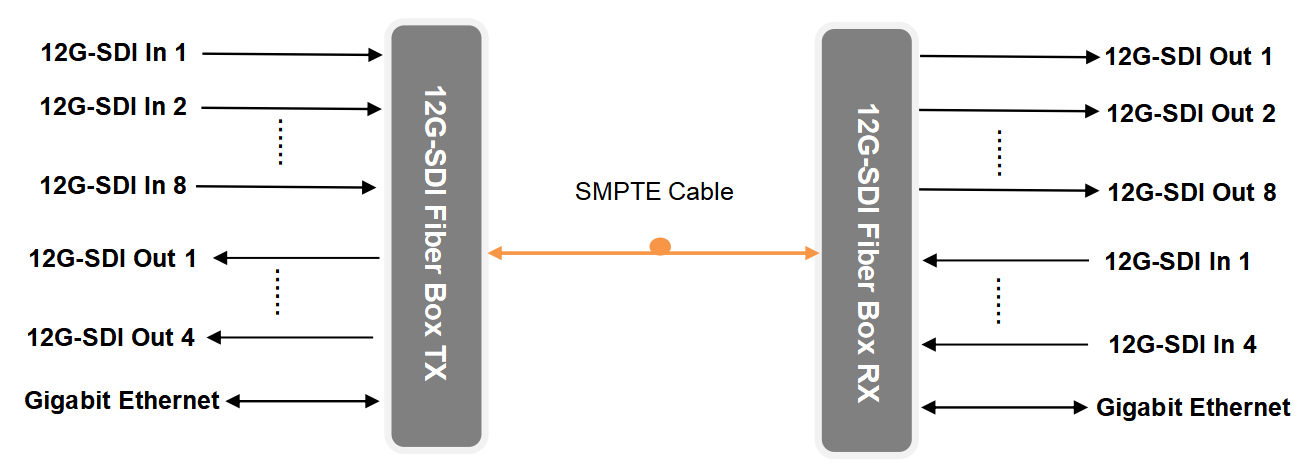

    Diagram
