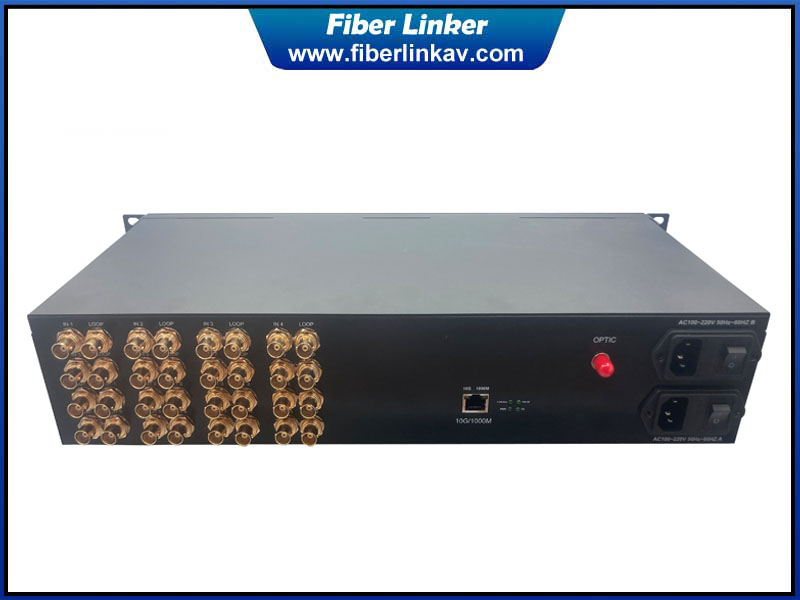

8 Bidirectional 12G-SDI Fiber Extender Over Optic Fiber Cable

  • Product Item:FLG88PL
  • Two way 8 channels 12G-SDI with loop out
  • Support 1G Ethernet
  • Single core optical fiber transmission by CWDM
  • OEM ST, FC, LC, SMPTE over FUW-PUW cable
  • Category:4K 12G-SDI Fiber Optic Extender
  • Inquiry Send Email Manual Download

    Description

    Description

    Beijing Fiber Linker has been in video audio transmission system solution for over 10 years. This 12G-SDI fiber extender supports 8-ch forward and 8-ch reverser 12G-SDI with loop out and 1G bandwidth Ethernet over single optical fiber cable by CWDM solution. Our SDI fiber optic kits are widely used in TV transmission, OB van transmission, broadcast live stream, event production and so on overseas. We can produce SDI fiber gears by CWDM, DWDM and TDM uncompressed solution with data, external audio Ethernet, tally and other functions. Our SDI fiber gears also could have Neutrik Opticalcon connectors, LEMO SMPTE hybrid fiber FXW and EDW connectors by using FUW-PUW camera cable

    Features

    1.8-ch forward 12G-SDI and 8-ch reverse 12G-SDI with loop out on transmitter and receiver
    2.Support 1-ch Gigabit Ethernet
    3. Uncompressed CWDM fiber solution
    4.Compatible with 6G-SDI, 3G-SDI, HD-SDI, SD-SDI
    5.Bandwidth range from 270Mb/s to 11.88Gb/s
    6.SMPTE ST 2082-1 (11.88Gb/s) clock recovery
    7.SMPTE 292M, 259M, 296M, 297M, 372M, 424M, 425M, ST-2081, ST-2082
    8.Support automatic cable equalization based on the data rate detected
    9.LED status indicators monitor the critical parameters
    10. Single fiber optical ST connector, optional LC/FC/SMPTE304M/SMPTE311M FXW and EDW connector
    11.Support OEM configuration according to actual request
    Specifications

    SDI Input

    Number

    8 input on TX box, 8 input on RX box with loop out

    TV signal standard

    SMPTE ST 2082, SMPTE ST 2081, SMPTE ST 424, SMPTE ST 425, SMPTE ST 292, SMPTE ST 259

    Reflection loss

    >4DB @12G

    Equilibrium

    >50M @ 12Gb/s

    Connector

    75Ω BNC

    SDI Output

    Number

    8 output on RX box, 8 output on TX box with loop out

    Signal level

    800mV nominal

    Rise/fall time

    <135ps @3G-SDI ,<80ps @6G UHD-SDI

    <45ps @12G UHD-SDI

    Overshoot

    <10% amplitude

    Reflection loss

    > 15dB

    Jitter

    < 0.5UI

    Connector

    75Ω BNC

    Ethernet

    RJ45 Connector

    1-ch 1000M bandwidth

    Audio

    XLR connector

    Optional

    Fiber Optic

    Connector

    FC/ST/LC/SC

    OEM

    Optional SMPTE LEMO

    Wavelength

    CWDM

    Pure Fiber Distance

    10KM

    Output Power

    About +3 dB to -5dB

    Fiber Loss

    8 dB

    Power and Environmental

    Operating temperature

    -40℃~+45℃

    Power Supply

    110 to 245VAC and remote power supply

    Power Consumption

    About 12W

    EMI/RFI

    FCC Part 15 Class A, EU EMC standard

    MTBF

    >100000 hours

    Other

    Size

    2U rack mount

    Weight

    15Kg (TX+RX)

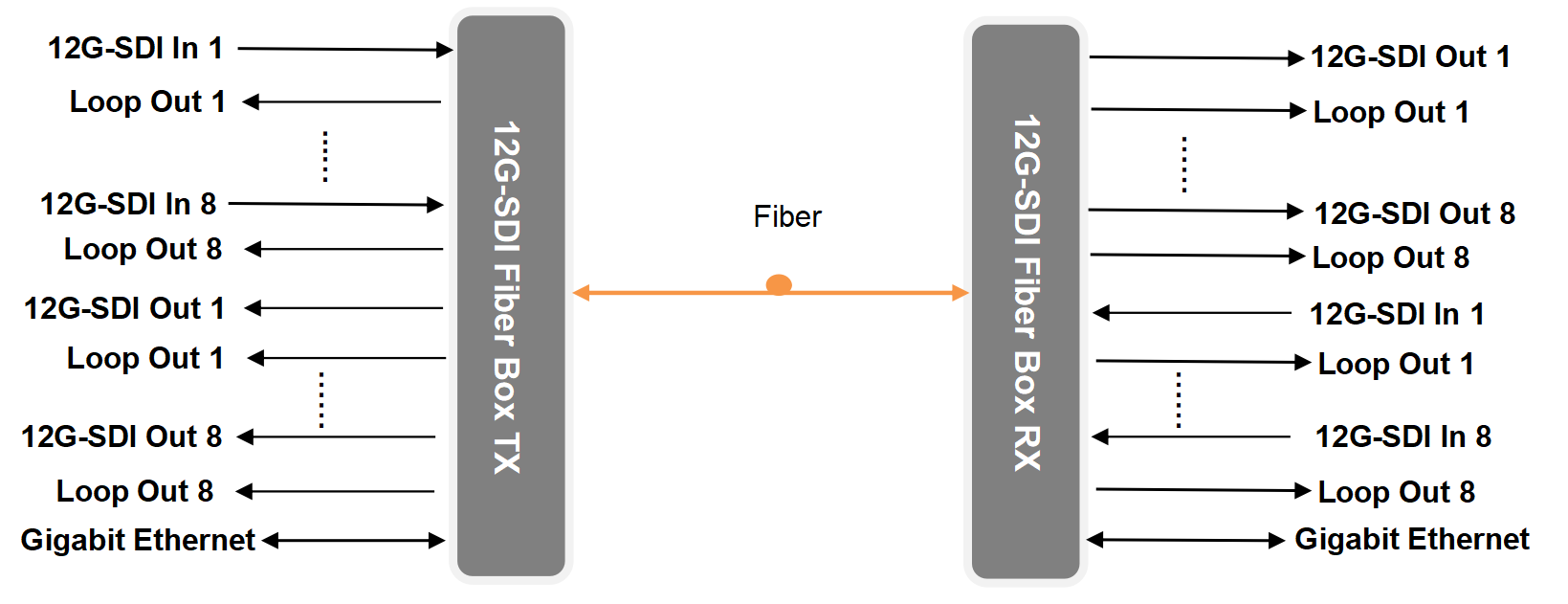

    Diagram
