Description
1. Description

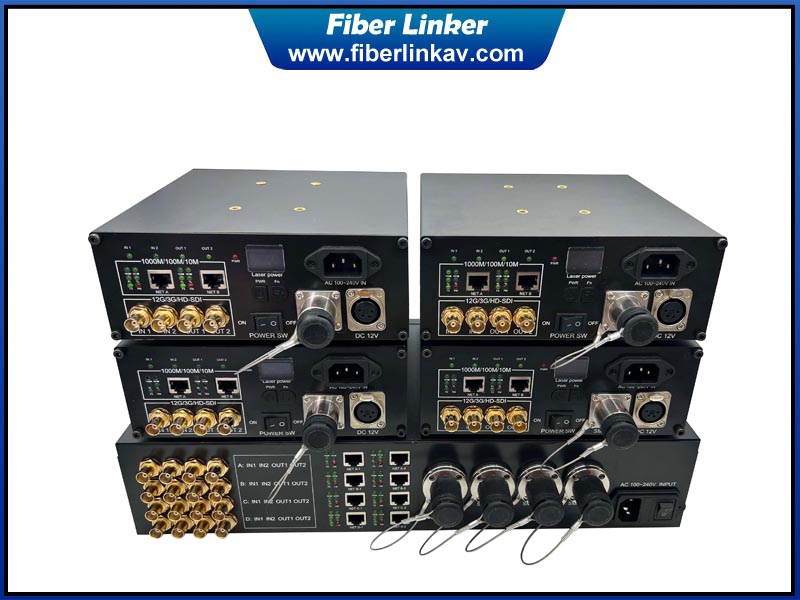

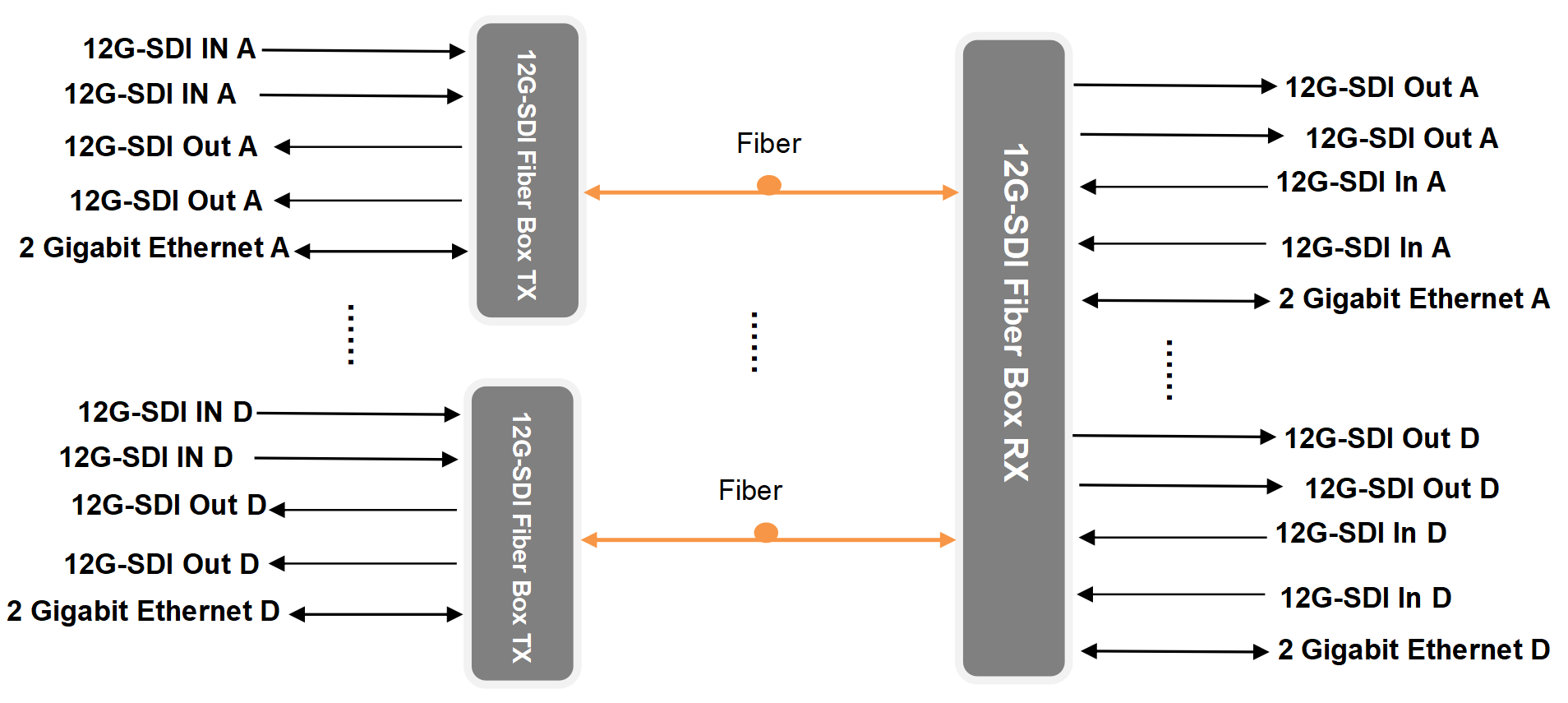

This SDI fiber extender is for PTZ camera fiber transmission solution. It has four PTZ camera fiber units and on base station rack mount. The SDI and IP signals will be extended over SMPTE FXW and EDW connector by FUW-PUW cable. Support remote power supply from rack unit to 4 camera SDI fiber conveners. This PTZ SDI fiber extender also support DC power output for PTZ camera. Our SDI fiber optic extender has been widely used in our domestic and overseas for broadcast TV transmission system. We could OEM it with other functions combination like Genlock, SYNC, time code, audio, data according to clients’ real use request.
2. Features
1.2-ch bidirectional 4K@60Hz 12G-SDI for camera end
2.Support 2-ch separate Gigabit Ethernet for camera end
3.Base station rack has 4 groups of PTZ camera units
4.Compatible with 6G-SDI, 3G-SDI, HD-SDI, SD-SDI
5.Bandwidth range from 270Mb/s to 11.88Gb/s
6.SMPTE ST 2082-1 (11.88Gb/s) clock recovery
7.SMPTE 292M, 259M, 296M, 297M, 372M, 424M, 425M, ST-2081, ST-2082
8.Support automatic cable equalization based on the data rate detected
9.LED status indicators monitor the critical parameters
10.Fiber transmission over SMPTE FXW and EDW connector
11.Supply remote power to camera SDI fiber box over FUW-PUW cable
12.Support led screen to show fiber power
13.Camera SDI fiber converter has local power input and DC output
14.CWDM uncompressed solution, support OEM
3.Specificatoins
|
SDI Input |
Number |
2 input on camera end and 8 input on base station unit |
|
TV signal standard |
SMPTE ST 2082, SMPTE ST 2081, SMPTE ST 424, SMPTE ST 425, SMPTE ST 292, SMPTE ST 259 |
|
|
Reflection loss |
>4DB @12G |
|
|
Equilibrium |
>50M @ 12Gb/s |
|
|
Connector |
75Ω BNC |
|
|
SDI Output |
Number |
2 output on camera end and 8 output on base station unit |
|
Signal level |
800mV nominal |
|
|
Rise/fall time |
<135ps @3G-SDI ,<80ps @6G UHD-SDI <45ps @12G UHD-SDI |
|
|
Overshoot |
<10% amplitude |
|
|
Reflection loss |
> 15dB |
|
|
Jitter |
< 0.5UI |
|
|
Connector |
75Ω BNC |
|
|
Ethernet |
RJ45 Connector |
2-ch separae 1000M bandwidth on camera end and 8 channels on base station unit |
|
Fiber Optic |
Channel |
1 |
|
Type/Distance |
2KM standard |
|
|
Wavelength |
CWDM |
|
|
Connector |
SMPTE HDTV Lemo connector |
|
|
Output Power |
About +3 dB to -5dB |
|
|
Receiver sensitivity |
-4dB |
|
|
Power and Environmental |
Operating temperature |
-40℃～＋45℃ |
|
Power Supply |
110 to 245VAC, remote power to camera units over SMPTE |
|
|
Power Consumption |
About 12W |
|
|
EMI/RFI |
FCC Part 15 Class A, EU EMC standard |
|
|
MTBF |
>100000 hours |
|
|
Other |
Size |
Camera unit:200*200*75mm, Base Station unit:2U |
|
Weight |
9Kg (5 units） |
