12G-SDI SMPTE Fiber Converter over FUW-PUW LEMO Fiber Cable

  • Product Item:FLG22LS
  • 12G-SDI fiber converter
  • 12G-SDI SMPTE fiber converter
  • SDI over SMPTE LEMO
  • SDI over FUW-PUW LEMO cable
  • Category:4K 12G-SDI Fiber Optic Extender
  • Inquiry Send Email Manual Download

    Description

    Description

    Beijing Fiber Linker Co., Ltd focus on video audio transmission system solution. This is 12G-SDI SMPTE Fiber Converter over FUW-PUW LEMO Fiber Cable for 2-ch bidirectional SDI video signals. Our SDI fiber optic extender has been widely used in our domestic and overseas for broadcast TV transmission system. We could do SDI extender over fiber by CWDM, DWDM and TDM uncompressed solution with data, external audio Ethernet, tally, MADI, SYNC/Genlock and other functions. The fiber connectors could be ST, FC, SC, LC, SMPTE, LEMO type. We welcome any OEM request for SDI over fiber series.

    Features

    1.2-ch bidirectional 4K@60Hz 12G-SDI
    2.Support loop out for each SDI channel
    3.Compatible with 6G-SDI, 3G-SDI, HD-SDI, SD-SDI
    4.Bandwidth range from 270Mb/s to 11.88Gb/s
    5.SMPTE ST 2082-1 (11.88Gb/s) clock recovery
    6.SMPTE 292M, 259M, 296M, 297M, 372M, 424M, 425M, ST-2081, ST-2082
    7.Support automatic cable equalization based on the data rate detected
    8.LED status indicators monitor the critical parameters
    9.SMTPE 3K.93C FXW and EDW hybrid fiber connector
    10.Support remote power from FXW to EDW fiber box
    11.Support AC and DC power supply
    Support OEM function

    Sepecifications

    SDI Input

    Number

    2 input on TX and 2 input on RX with loop out

    TV signal standard

    SMPTE ST 2082, SMPTE ST 2081, SMPTE ST 424, SMPTE ST 425, SMPTE ST 292, SMPTE ST 259

    Reflection loss

    >4DB @12G

    Equilibrium

    >50M @ 12Gb/s

    Connector

    75Ω BNC

    SDI Output

    Number

    2 output on TX and 2 output on RX with loop out

    Signal level

    800mV nominal

    Rise/fall time

    <135ps   @3G-SDI ,<80ps   @6G UHD-SDI

    <45ps   @12G UHD-SDI

    Overshoot

    <10% amplitude

    Reflection loss

    > 15dB

    Jitter

    < 0.5UI

    Connector

    75Ω BNC

    Fiber Optic

    Channel

    1

    Type/Distance

    1KM over SMPTE Cable with power

    10KM over Single-mode/pure fiber

    Wavelength

    CWDM

    Connector

    SMPTE HDTV Lemo connector

    Output Power

    About -1 dB to -4dB

    Receiver sensitivity

    -5 dB for 10KM,  optional max is -20dB

    Power and Environmental

    Operating temperature

    -40℃~+45℃

    Power Supply

    110 to 240VAC, DC10-20V, remote power over smpte cable, auto switch from internal detect

    Power Consumption

    About 12W

    EMI/RFI

    FCC Part 15 Class A, EU EMC standard

    MTBF

    >100000 hours

    Other

    Size

    190X160X55mm

    Weight

    3Kg (TX+RX)

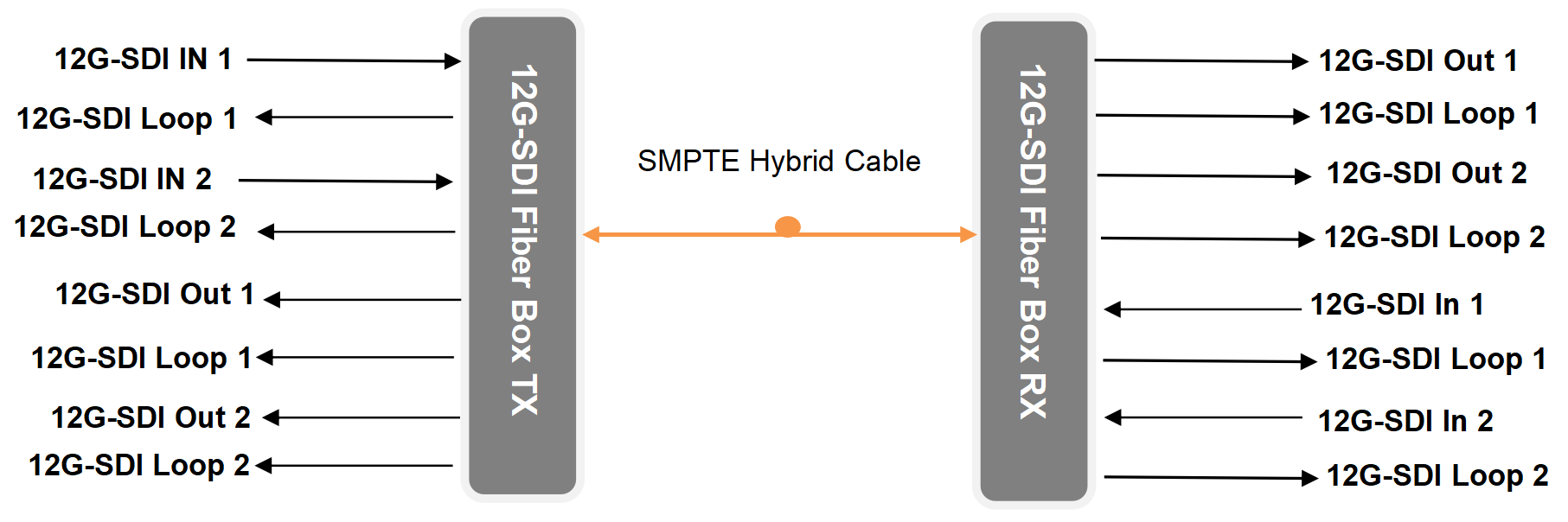

    Diagram
