12G-SDI Fiber Optic Extender over Neutrik OpticalCON Duo

Home Telecast AV Broadcast SDI Fiber Optic Extender 4K 12G-SDI Fiber Optic Extender 12G-SDI Fiber Optic Extender over Neutri

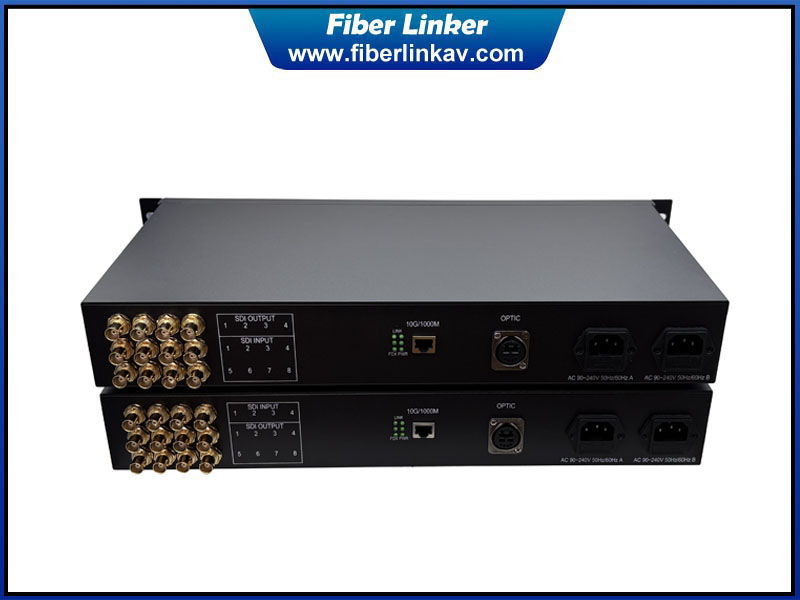

12G-SDI Fiber Optic Extender over Neutrik OpticalCON Duo

  • Product Item:FLG84PN
  • 12G-SDI fiber converter
  • SDI over Neutrik OpticalCON Duo
  • Support remote power over Neutrik OpticalCON Duo
  • SDI over fiber
  • Category:4K 12G-SDI Fiber Optic Extender
  • Inquiry Send Email Manual Download

    Description

    1. Description

    This 12G-SDI Fiber Optic Extender extends 12 channels 12G-SDI 4K signal to a long place with Neutrik OpticalCON Duo connector. It could support remote power from on to the other box over hybrid opticalcon duo cable wire if you want. Our SDI fiber optic extender has been widely used in our domestic and overseas for broadcast TV transmission system. We could do SDI extender over fiber by CWDM, DWDM and TDM uncompressed solution with data, external audio Ethernet, tally, MADI, SYNC, Time code and other functions. The fiber connectors could be ST, FC, SC, LC, SMPTE, LEMO type. We welcome any OEM request for SDI over fiber series.

    2. Features

    1.8-ch forward 12G-SDI and 4-ch reverse 12G-SDI
    2.Support 1-ch 10G Ethernet
    3.Compatible with 6G-SDI, 3G-SDI, HD-SDI, SD-SDI
    4.Bandwidth range from 270Mb/s to 11.88Gb/s
    5.SMPTE ST 2082-1 (11.88Gb/s) clock recovery
    6.SMPTE 292M, 259M, 296M, 297M, 372M, 424M, 425M, ST-2081, ST-2082
    7.Support automatic cable equalization based on the data rate detected
    8.LED status indicators monitor the critical parameters
    9.Neutrik opticalCon Duo LC connector for fiber optic
    10.Support one box to supply power to the other box
    11.Support OEM configuration according to real needs
    12.Support CWDM or DWDM solution

    3. Specifications

    SDI Input

    Number

    8 input on TX box, 4 input on RX box

    TV signal standard

    SMPTE ST 2082, SMPTE ST 2081, SMPTE ST 424, SMPTE ST 425, SMPTE ST 292, SMPTE ST 259

    Reflection loss

    >4DB @12G

    Equilibrium

    >50M @ 12Gb/s

    Connector

    75Ω BNC

    SDI Output

    Number

    8 output on RX box, 4 output on TX box

    Signal level

    800mV nominal

    Rise/fall time

    <135ps   @3G-SDI ,<80ps   @6G UHD-SDI

    <45ps   @12G UHD-SDI

    Overshoot

    <10% amplitude

    Reflection loss

    > 15dB

    Jitter

    < 0.5UI

    Connector

    75Ω BNC

    Ethernet

    RJ45 Connector

    1-ch 10G bandwidth, compatible with 1000M/100M

    Fiber Optic

    Channel

    2 core inside

    Type/Distance

    10KM over Single-mode/pure fiber

    Wavelength

    CWDM 14 wavelength

    Connector

    Neutrik opticalCon Duo LC

    Output Power

    About +3 dB to -5dB

    Receiver sensitivity

    -6dB for 10KM

    Power and Environmental

    Operating temperature

    -40℃~+45℃

    Power Supply

    110 to 245VAC

    Power Consumption

    About 12W

    EMI/RFI

    FCC Part 15 Class A, EU EMC standard

    MTBF

    >100000 hours

    Other

    Size

    1.5U rack mount

    Weight

    9Kg (TX+RX)

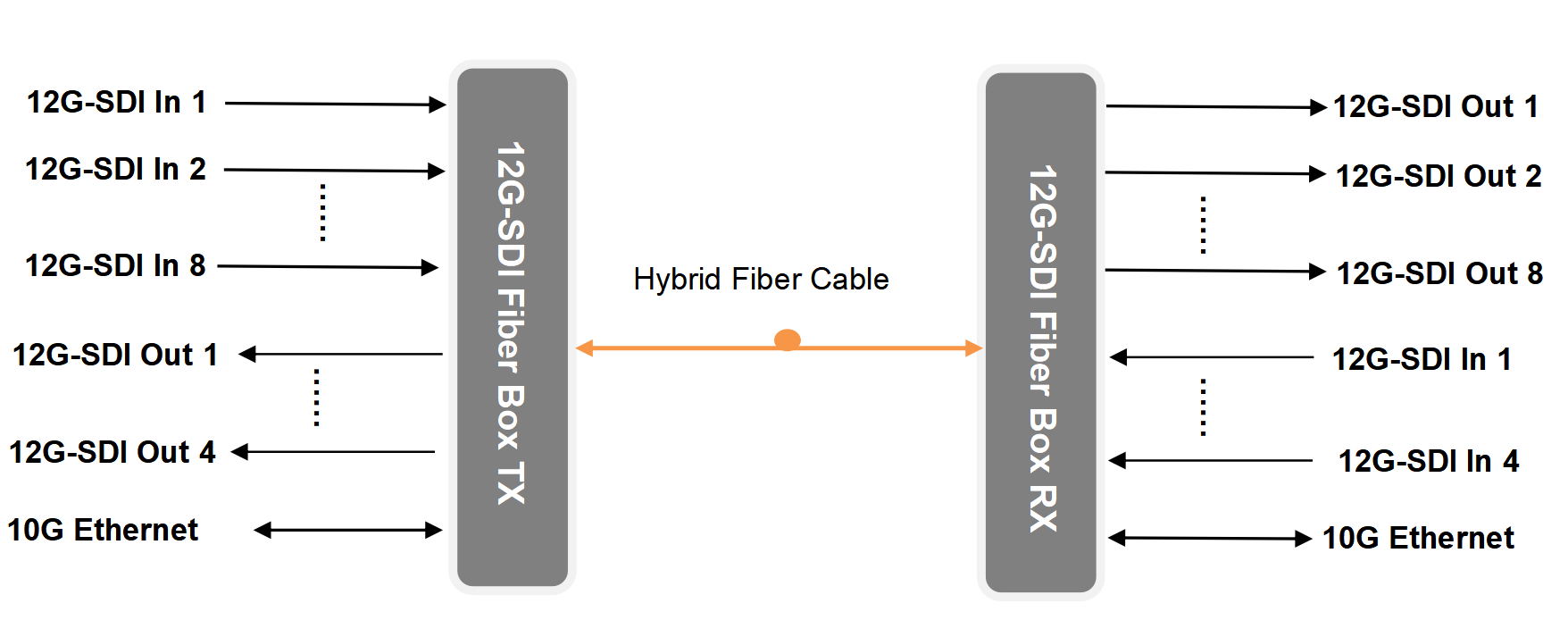

    4. Diagram
