12G-SDI Fiber Optic Extender Converter with Genlock SYNC Data Audio Ethernet

Home Telecast AV Broadcast SDI Fiber Optic Extender 4K 12G-SDI Fiber Optic Extender 12G-SDI Fiber Optic Extender Converter w

12G-SDI Fiber Optic Extender Converter with Genlock SYNC Data Audio Ethernet

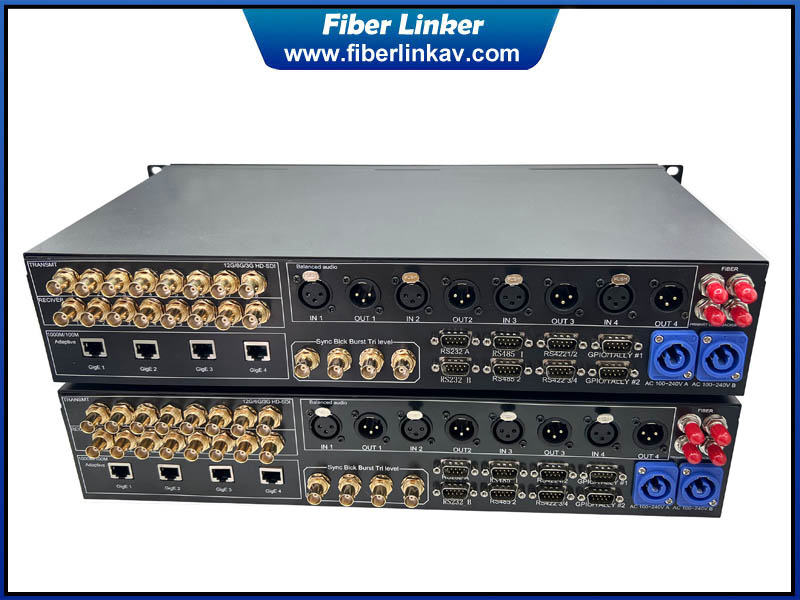

  • Product Item:FLG88SDAP
  • 12G-SDI Fiber Extender
  • Genlock SYNC Fiber Extender
  • Multiple Functions
  • SDI fiber optic converter
  • Category:4K 12G-SDI Fiber Optic Extender
  • Inquiry Send Email Manual Download

    Description

    Description

    Beijing Fiber Linker Co., Ltd has been in video audio transmission system solution for almost 10 years. This 12G-SDI fiber optic extender features 8-ch bidirectional 12G-SDI, 4-ch unidirectional Genlock SYNC, 4-ch bidirectional line audio, 4-ch separate Gigabit Ethernet, 2-ch RS232, 2-ch bidirectional 485, 4-ch RS422, 4-ch bidirectional contact closure, dual power, dual ST fiber( dual ST fiber back up), 2U rack mount. Our SDI fiber optic extender has been widely used in our domestic and overseas for broadcast TV transmission system. We could do SDI extender over fiber by CWDM, DWDM and TDM uncompressed solution with data, external audio Ethernet, tally and other functions. The fiber connectors could be ST, FC, SC, LC, SMPTE, LEMO type. We welcome any OEM request for SDI over fiber series.

    Features

    1.8-ch forward 12G-SDI and 8-ch reverse 12G-SDI

    2.Support 4-ch unidirectional Genlock SYNC
    3.Support 4-ch Separate Gigabit Ethernet
    4.Support 4 forward and 4 reverse analog line audio
    5.Support 8-ch RS232/422 duplex data
    6.Support 4-ch bidirectional tally(contact closure)
    7.Compatible with 6G-SDI, 3G-SDI, HD-SDI, SD-SDI
    8.Bandwidth range from 270Mb/s to 11.88Gb/s
    9.SMPTE ST 2082-1 (11.88Gb/s) clock recovery
    10.SMPTE 292M, 259M, 296M, 297M, 372M, 424M,
    425M, ST-2081, ST-2082
    11.Dual ST fiber port + one group fiber cable backup
    12.LED status indicators monitor the critical parameters
    13.Support OEM configuration according to real needs
    Specifications

    SDI Input

    Number

    8 input on TX box, 8 input on RX box

    TV signal standard

    SMPTE ST 2082, SMPTE ST 2081, SMPTE ST 424, SMPTE ST 425, SMPTE ST 292, SMPTE ST 259

    Reflection loss

    >4DB @12G

    Equilibrium

    >50M @ 12Gb/s

    Connector

    75Ω BNC

    SDI Output

    Number

    8 output on RX box, 8 output on TX box

    Signal level

    800mV nominal

    Rise/fall time

    <135ps @3G-SDI ,<80ps @6G UHD-SDI

    <45ps @12G UHD-SDI

    Overshoot

    <10% amplitude

    Reflection loss

    > 15dB

    Jitter

    < 0.5UI

    Connector

    75Ω BNC

    Ethernet

    RJ45 Connector

    4-ch Separate 1000M bandwidth

    Audio

    XLR connector

    4-ch bidirectional analog balance audio

    Data

    DB9 (Duplex)

    2-ch RS232, 2-ch 485, 4-ch RS422, 4-ch bidirectional contact closure

    Fiber Optic

    Connector

    4 ST fiber port( 2 is backup for fiber cable)



    Wavelength

    CWDM

    Pure Fiber Distance

    10KM

    Output Power

    About +3 dB to -5dB

    Fiber Loss

    4 dB

    Power and Environmental

    Operating temperature

    -40℃~+45℃

    Power Supply

    110 to 245VAC  dual power backup

    Power Consumption

    About 12W

    EMI/RFI

    FCC Part 15 Class A, EU EMC standard

    MTBF

    >100000 hours

    Other

    Size

    2U rack mount

    Weight

    7Kg (TX/RX)

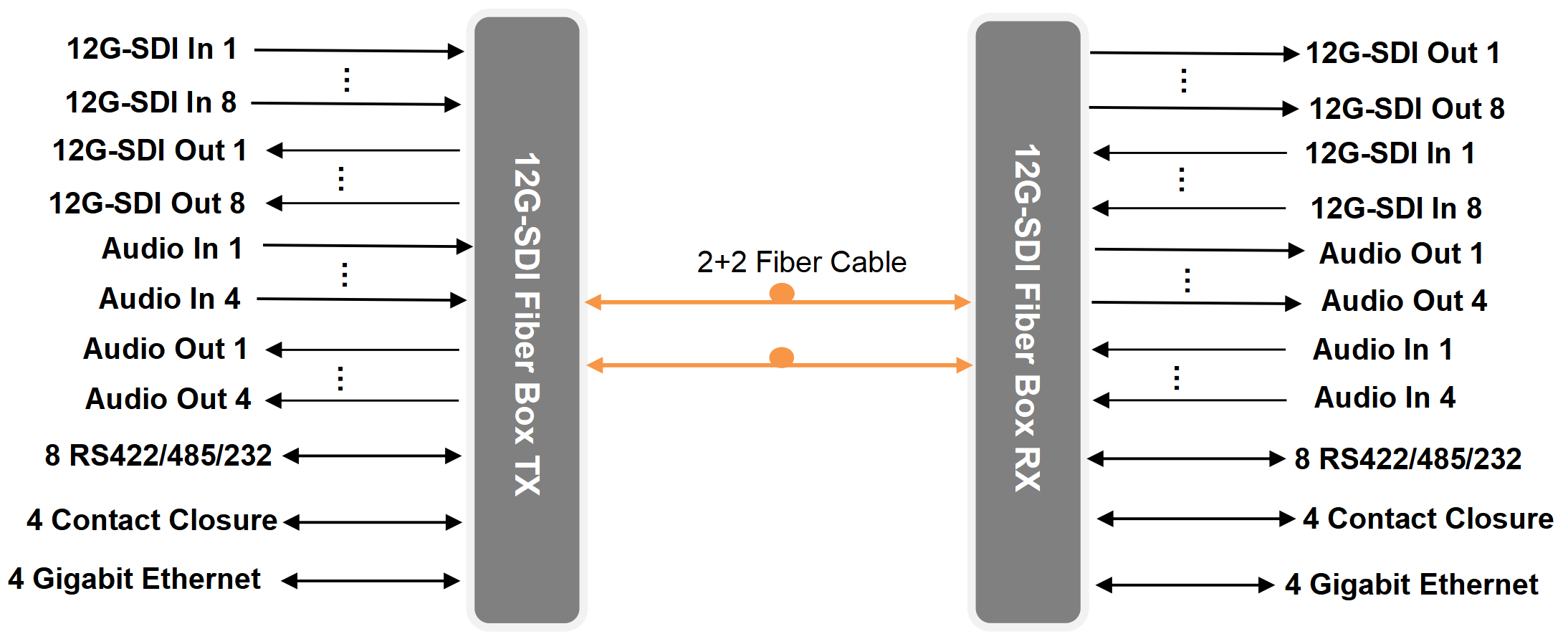

    Diagram
