Description
Description

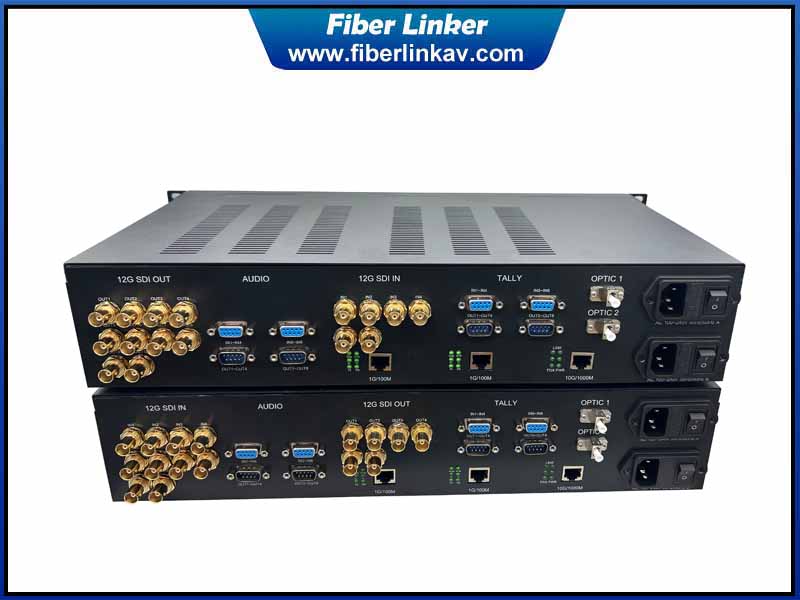

This 12G-SDI fiber extender supports 10-ch forward and 6-ch reverse 12G-SDI, 1-ch 10G Ethernet, 2-ch separate Gigabit Ethernet, 8-ch bidirectional D-SUB analog audio, 8-ch bidirectional D-SUB tally over 2 core LC fiber port. Our SDI fiber extender has been widely used in our domestic and overseas for broadcast TV transmission system. We could do SDI extender over fiber by CWDM, DWDM and TDM uncompressed solution with data, external audio, Ethernet, tally, Genlock and other functions. The fiber connectors could be ST, FC, SC, LC, Opticalcon Duo, Opticalcon Quad, SMPTE 3K.93C FXW and EDW. We welcome any OEM request for SDI over fiber series.
Feature
1.10-ch forward 12G-SDI and 6-ch reverse 12G-SDI
2.Support 1-ch 10G Ethernet, 2-ch separate Gigabit Ethernet
3.Support 8 forward and 8 reverse analog line audio and Tally
4.Compatible with 6G-SDI, 3G-SDI, HD-SDI, SD-SDI
5.Bandwidth range from 270Mb/s to 11.88Gb/s
6.SMPTE ST 2082-1 (11.88Gb/s) clock recovery
7.SMPTE 292M, 259M, 296M, 297M, 372M, 424M, 425M, ST-2081, ST-2082
8.Support automatic cable equalization based on the data rate detected
9.LED status indicators monitor the critical parameters
10.Single core fiber cable, optional FC, ST, 10KM.
11.Optional supporting broadcast pathological signal
12.Support OEM configuration according to real needs
13.Support CWDM or DWDM solution
Specifcation
|
SDI Input |
Number |
10 input on TX box, 6 input on RX box |
|
TV signal standard |
SMPTE ST 2082, SMPTE ST 2081, SMPTE ST 424, SMPTE ST 425, SMPTE ST 292, SMPTE ST 259 |
|
|
Reflection loss |
>4DB @12G |
|
|
Equilibrium |
>50M @ 12Gb/s |
|
|
Connector |
75Ω BNC |
|
|
SDI Output |
Number |
10 output on RX box, 6 output on TX box |
|
Signal level |
800mV nominal |
|
|
Rise/fall time |
<135ps @3G-SDI ,<80ps @6G UHD-SDI <45ps @12G UHD-SDI |
|
|
Overshoot |
<10% amplitude |
|
|
Reflection loss |
> 15dB |
|
|
Jitter |
< 0.5UI |
|
|
Connector |
75Ω BNC |
|
|
Ethernet |
RJ45 Connector |
1-ch 10G Ethernet, 2-ch separate Gigabit Ethernet |
|
Audio |
D-SUB connector |
8-ch bidirectional analog balance audio |
|
Fiber Optic |
Channel |
2 |
|
Type/Distance |
Single-mode/10KM standard |
|
|
Wavelength |
CWDM |
|
|
Connector |
FC/LC/ST/SC, Opticalcon and SMPTE LEMO optional |
|
|
Output Power |
About +3 dB to -5dB |
|
|
Receiver sensitivity |
Standard 10KM, 20KM optional |
|
|
Power and Environmental |
Operating temperature |
-40℃～＋45℃ |
|
Power Supply |
110 to 245VAC |
|
|
Power Consumption |
About 12W |
|
|
EMI/RFI |
FCC Part 15 Class A, EU EMC standard |
|
|
MTBF |
>100000 hours |
|
|
Other |
Size |
2U rack mount |
|
Weight |
9Kg (TX+RX） |
Application
Remote OB Van/Truck Video Feeds, Broadcast Studio Camera Feeds, TV station/video conference, broadcast live transmission, Medical/Surgical Room Broadcast, Building to Building video conference, video wall controller, commend center.

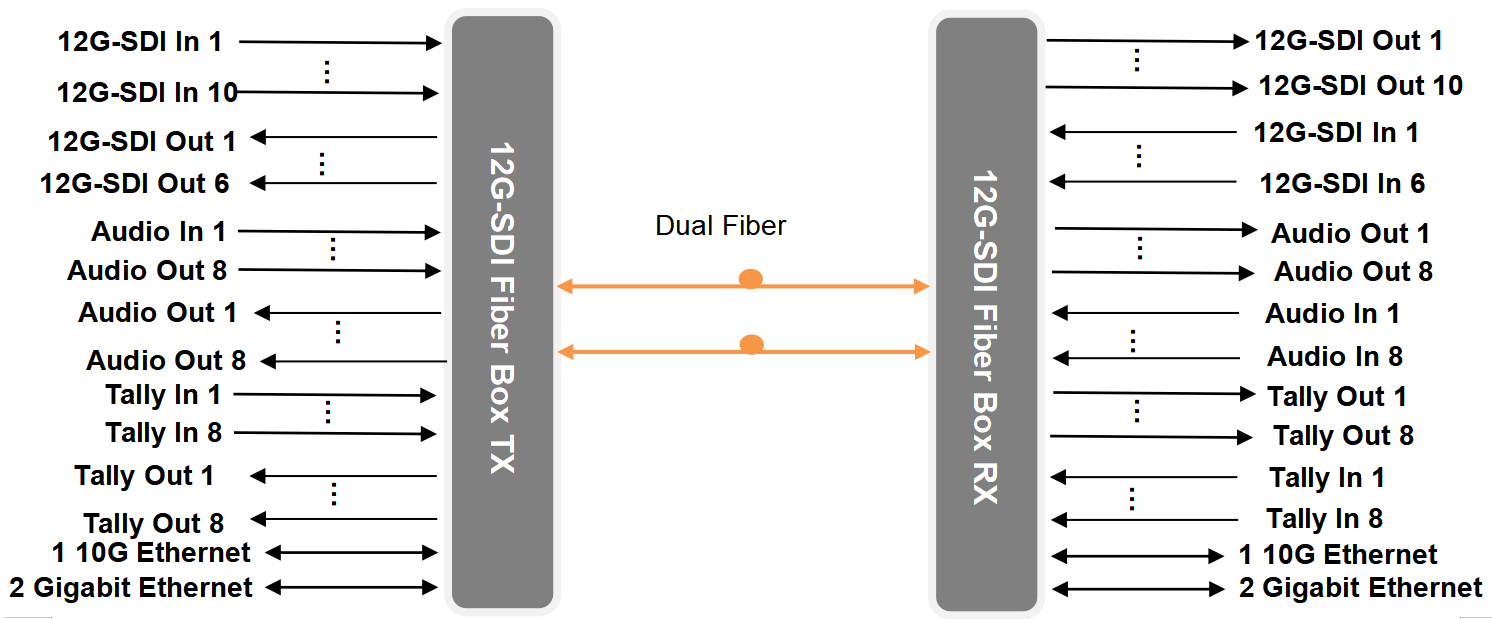

Diagram
