Description

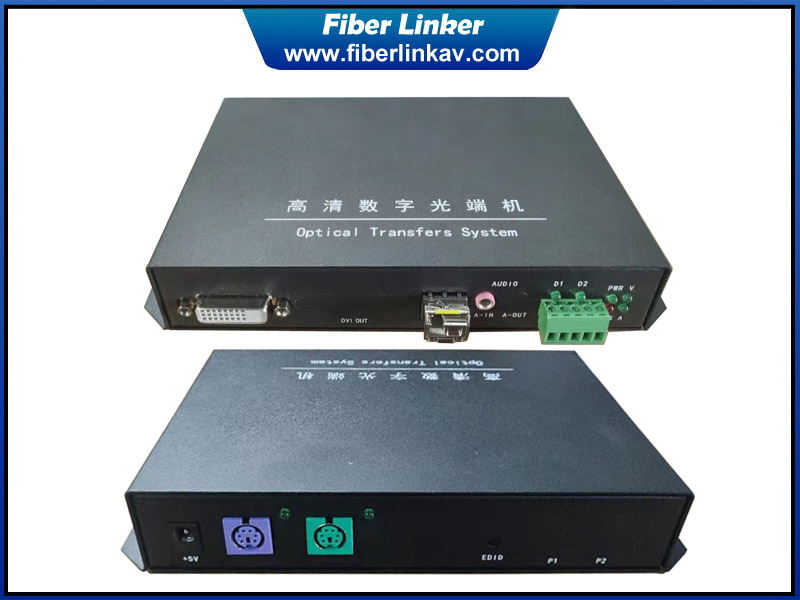

This Kind of DVI PS2 fiber extender could support 1080P resolution super HD video which uses special transfer chip to transfer DVI singal to 3G differential signal. It support PS2 KVM mouse and keyboard. It transmits the DVI video signal over optical fiber module and fiber cable so as transmit HD media video to a long distance from 0-80KM by different optical module. This product is no loss, no delay.
It supports external audio transmission. This product is ideal for large-screen display, conferencing systems and home entertainment and so on. The device has the ability of anti-interference, to ensure the stability of the signal.
Features
1.Compliance with DVI1.0 standard,
2.Support DVI signal input or output.
3.Support PS2 keyboard and mouse, audio
4.The Receiver support the output of the DVI audio and the Independent stereo
5.Support 1080P, single mode fiber up to 20 KM
6.Real-time transmission of high-definition uncompressed digital DVI video signal, the video is clear and stable
7.Built-in ESD protection circuitry, can effectively prevent electrostatic damage
8.Site installation: plug and play, no need to set
9.Support serial unidirectional transmission
Specification
|
Video Input (Transmitter) |
1xDVI input and 1xDVI loop out |
|
Video Output (Receiver) |
1xDVI output |
|
Maximum Video Bit Rate |
3Gbps |
|
DVI Format |
1920*1200@60Hz, 1080P, 720P, 576P, 480P/ VESA Resolution |
|
EDID |
Support |
|
External Audio |
1-ch stereo 3.5mm optional bidirectional |
|
|
44.1K,48K,96K,176K,192K |
|
PS2 |
For keyboard and mouse only |
|
RS232 |
3-pin terminal block, ≤115200kbps |
|
Wavelength |
1310nm or 1310nm/1550nm |
|
Output Optical Power |
－9.5～－3dBm,average @1310nm |
|
Receiver sensitivity |
－21dBm,average @1310nm |
|
Output Modulation Amplitude |
180μW |
|
Input Modulation Amplitude |
≤15μW |
|
Relative Speed |
-116 DB/Hz |
|
Return Loss |
≤8 dB |
|
Distance |
single mode for 10KM standard, Up to 80KM max optional, multimode 150M |
|
Working Temperature |
|
|
Storage Temperature |
-60℃~+80℃ |
|
Relative Humidity |
0~95%（non condensing） |
|
Size |
220L×130W×33H（mm） |
|
Power Supply |
5V@2A |
