Description
Description

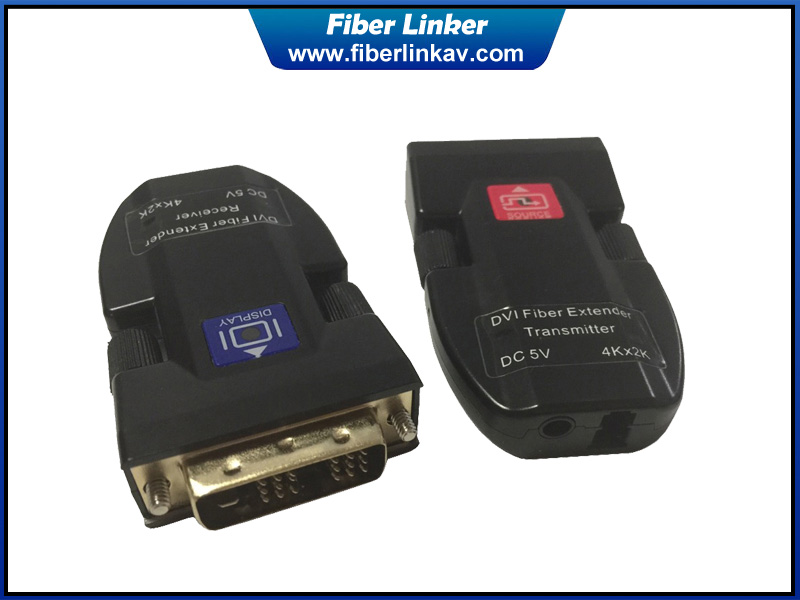

This
4K DVI Fiber Converter includes a transmitter and a receiver to transmit
4K DVI digital video to a long distance over fiber cable. It offers graphic
TMDS signals to be extensible up to the limits of modal bandwidth of selected OM3
multi-mode glass fibers or Single-Mode fibers. The data rate from the –T to –R
is 10.2Gb/s with 1310nm, compliant HDMI 1.4 standard, It Support resolution is
up to 3840*2016/30Hz (YUV 4:4:4) or 3840*2016/60Hz (YUV 4:2:0). It support
distance up to
Features
1.Resolution up to WUXGA (1920 X 1200) 60Hz and 1080p/60Hz, optional 4KX2K@30Hz
2.Distance is up to 300 meters over OM3 MMF, or 2km over SMF; with 1x LC multi-mode fibers
3.Optional HDCP, automatically EDID, or Manual EDID
4.Offers self-EDID programming feature, detecting from a display and restoring to an EEPROM in the transmitter just by plugging to the display without any physical DDC connection
5.The modules are compact enough to directly plug to graphic sources and displays by adopting DVI plugs
6.Includes two (2) +5V DC power adapters for the transmitter and receiver
7.Data security with negligible RFI/EMI emissions and loss of video quality due to no copper conductor present
Specification
|
|
Parameter |
Specifications |
|
Resolution |
4k*2k 30Hz |
3840x2160/30Hz (YUV 4:4:4) |
|
4k*2k 60Hz |
3840x2160/60Hz.(YUV 4:2:0) |
|
|
Components |
Laser Diodes in Tx Module |
1310nm FP laser and 1550nm PIN PD |
|
Photo Diodes in Rx Module |
1550nm FP laser and 1310nm PIN PD |
|
|
WDM filter |
Integrated 1310nm/1550nm filter |
|
|
Electrical |
Input and Output Signals |
TMDS Level (complying with DVI1.0) |
|
Data Transfer Rate (Graphic Data) |
Max. 3.4Gbps |
|
|
Maximum Pixel Clock Frequency |
340Mb/s |
|
|
Maximum Video Bit Rate |
10.3Gb/s |
|
|
Total Jitter at the end of Rx output |
Max. 309 ps |
|
|
Skew inter-channels |
Max. 6ns |
|
|
Optical |
Link Power Budget |
Min 8.5dB |
|
Mechanical |
Module dimension (mm) |
69.5X39.0X15.2mm |
|
Connector |
Optical Connector |
1X LC connector |
|
Electric Connector |
DVI plug |
|
|
Recommended Fiber |
OM3 MMFiber or Single-mode Fiber |
|
|
Extend Distance |
300m for MM, 2km for SM |
|
|
Power Supply |
5V DC |
|
|
Working Temperature |
-20 to 50℃ |
|

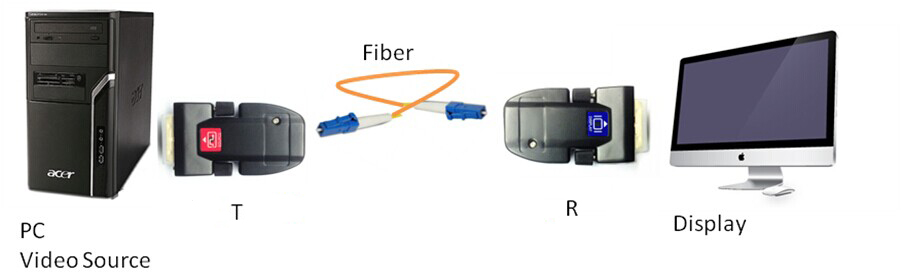

Diagram
