Description

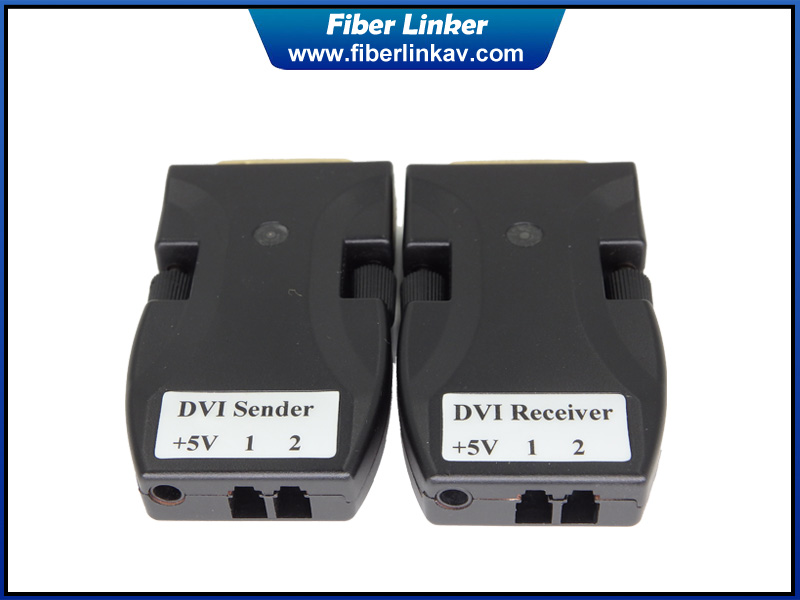

This DVI Fiber Optic Extender includes a transmitter and a receiver to transmit 1080P DVI digital video to a long distance over fiber cable. It offers graphic TMDS signals to be extensible up to the limits of modal bandwidth of selected OM3 multi-mode glass fibers or Single-Mode fibers.It could support max 1920X1200 resolution and compatible with lower resolution. Miniature housing supports easy installation. It supports distance up to 500m over OM3 MMF and 1.5KM over single mode fiber cable.
Features
1.Extends all VESA resolution up to WUXGA (1920 X 1200) 60Hz DVI data up to 1,500 meters (4,920 feet).
2.Applicable to both single-mode and multi-mode fibers.
3.Up to 500m with duplex LC multi-mode fibers.
4.Up to 1,500m with duplex LC single-mode fibers.
5.Offers self-EDID programming feature, detecting from a display and restoring to an EEPROM in the transmitter just by plugging to the display without any physical DDC connection.
6.The modules are compact enough to directly plug to graphic sources and displays by adopting DVI-plugs.
7.Certifies FCC and CE standards for EMI/RFI emission.
8.Data security with negligible RFI/EMI emissions and loss of video quality due to no copper conductor present.
Specification
|
|
Parameter |
Specifications |
|
Resolution |
1920X1200@60Hz |
support |
|
1080P@60Hz |
support |
|
|
Components |
Laser Diodes in Tx Module |
1310nm FP laser and 1550nm PIN PD |
|
Photo Diodes in Rx Module |
1550nm FP laser and 1310nm PIN PD |
|
|
WDM filter |
Integrated 1310nm/1550nm filter |
|
|
Electrical |
Input and Output Signals |
TMDS Level (complying with DVI1.0) |
|
Data Transfer Rate (Graphic Data) |
Max.1.65Gbps |
|
|
Maximum Pixel Clock Frequency |
340Mb/s |
|
|
Maximum Video Bit Rate |
1.65Gb/s |
|
|
Total Jitter at the end of Rx output |
Max. 309 ps |
|
|
Skew inter-channels |
Max. 6ns |
|
|
Optical |
Link Power Budget |
Min 8.5dB |
|
Mechanical |
Module dimension (mm) |
69.5X39.0X15.2mm |
|
Connector |
Optical Connector |
2X LC connector |
|
Electric Connector |
DVI plug |
|
|
Recommended Fiber |
OM3 MMFiber or Single-mode Fiber |
|
|
Extend Distance |
500m for MM, 1.5km for SM |
|
|
Power Supply |
5V DC |
|
|
Working Temperature |
-20 to 50℃ |
|
