Description

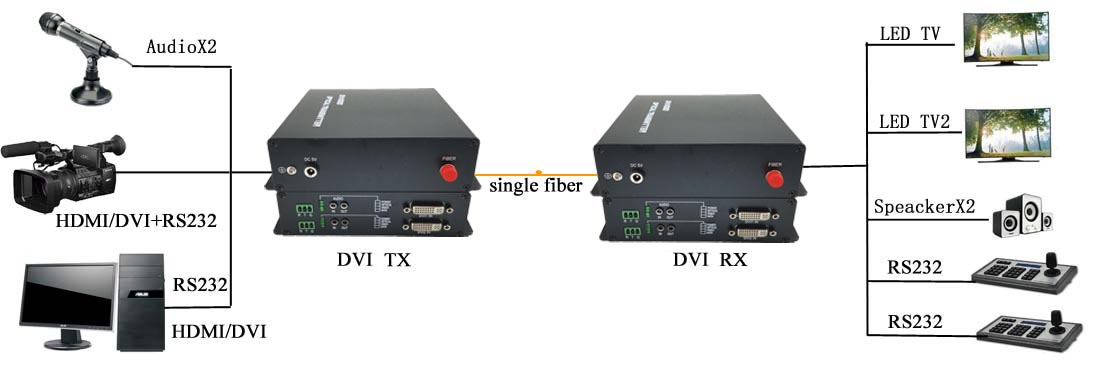

2-way uncompressed DVI Gear over single fiber optic cable could transmt 2-ch DVI video signal, 2-ch stereo analog audio to remote monitor end. This DVI fiber gear is using CWDM uncompressed mux and demux solution, so there is no video delay in transmission. We also could use CWDM solution to mix SDI HDMI DVI VGA digital video over single core fiber cable in one rack house. The normal extension distance is 20KM, optional max 80KM. Such gear is widely used in video wall system, collabration system, video conference, smart teaching classroom, projection system and so on.
Features
1.Compliance with DVI1.0 standard,
2.Support 2 DVI signal input or output.
3. support 2-ch stereo audio
4. Support 1080P resolution, single mode fiber transmission up to 20 KM on standard
5.Real-time transmission of high-definition uncompressed digital DVI video signal, the video is clear and stable
6.Built-in ESD protection circuitry, can effectively prevent electrostatic damage
7.Site installation: easy, plug and play, no need to set
8. Uncompressed technology, optional CWDM, DWDM to combine multiple signals to single core fiber cable
Specification
|
Transmitter |
2 DVI |
|
Receiver |
2 DVI |
|
Support Video Format |
1920*1080/60Hz,1280*1024/60Hz， 1280*768/60Hz，1280*720/60Hz, 1024*768/60Hz,800*600/60Hz, |
|
Bandwidth |
3Gbps |
|
Transmission distance |
The default is 20KM for single mode, 300meter for multimode， optional max is 80KM |
|
Input and output audio interface |
3.5MM Audio |
|
Support input and output audio formats |
44.1K,48K,96K,176K,192K |
|
Serial port baud rate(optional) |
115200 and following adaptively |
|
Fiber Port |
FC/PC |
|
Wavelength |
1310nm/1550nm |
|
Input Power |
DC5V |
|
Power Consumption |
Transmitter 4W Receiver 4W |
|
Dimensions |
Long*Wide*High 165*115*60mm |
|
Operating Temperature Range |
-30 to +70°C |
|
Operating humidity range |
5 to 90 % RH (no condensation) |
|
Package Size |
165*115*60mm |
|
Weight |
1.8kg for transmitter and receiver |
