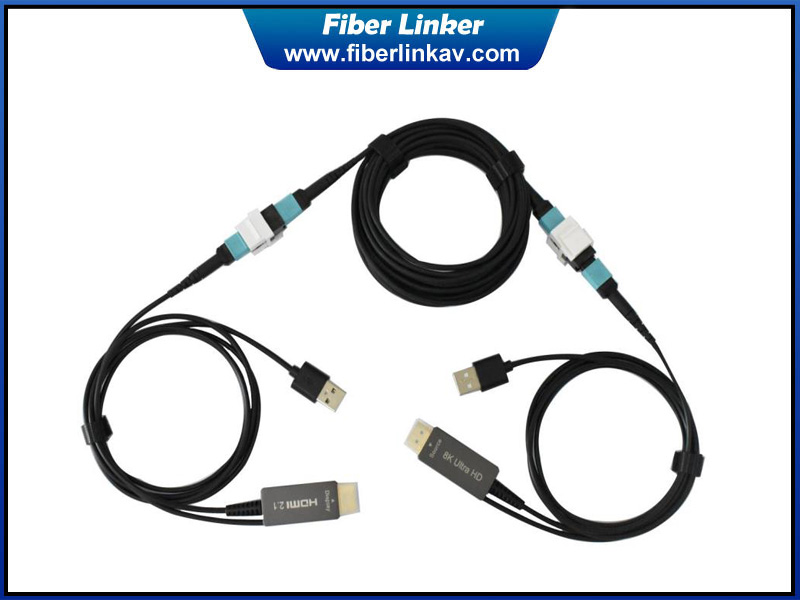

8K HDMI Fiber Extender over MPO Optic cable

Home Fiber Optic HDMI Fiber Optic Extender 4K HDMI Fiber Optic Extender 8K HDMI Fiber Extender over MPO Optic ca

8K HDMI Fiber Extender over MPO Optic cable

  • Product Item:FL101MPO
  • 8K@60Hz HDMI2.1 over Fiber
  • Uncompressed without latency
  • 500meter over MPO fiber cable
  • HDMI Fiber Optic Extender
  • Category:4K HDMI Fiber Optic Extender
  • Inquiry Send Email Manual Download

    Description

    Description

    This is 8K HDMI extender over MPO fiber cable from Beijing Fiber Linker company. Video industry tends to improve with 4K and 8K high resolution now. Full uncompressed 4K and 8K video solution are more attractive for some video projects. This 8K HDMI2.1 extender convert 8K video to fiber optic signal and extends video over MPO fiber cable with full uncompressed technical solution. Its bandwidth is upto 48Gbps with max 500meter transmission distance. The whole transmission will has no latency
    The uncompressed HDMI2.1 fiber extender could be widely used in broadcast live transmission, event production, medical/surgical room broadcast, video conference, video wall system, commend center, teaching room, digital signage, projection system, and other professional UHD video transmission systems.

    Features

    1.HDMI2.1 version with 8K@60Hz 4:4:4 resolution and compatible with lower
    2.Support color depth 4:2:0, 4:2:2 and 4:4:4 and 24p 30p 60p frame rate.
    3.Support HDR(Dolby Vision,HDR10+), support HDCP2.3
    4.Support video bandwidth with 48Gbps, video transmission without latency
    5.Transmission distance upto 500meter over MPO to MPO fiber optic cable
    6.Six core OM3 MM Fiber fiber optical cable with armored protection
    7.HDMI TX and RX ends has USB power supply plug, normally supply RX power is enough

    Specifications


    HDMI version

    HDMI 2.1, compatible with HDMI2.0, 1.4, 1.3

    Resolution

    Up to 8K/60Hz, backwards compatible with4K/1080p/1080i/720p

    Sampling rate

    up to 4:4:4

    Bandwidth

    up to 48 Gbps

    HDMI features

    HDR HDCP V2.3  BT.2020 Deep Color

    Transmitter Tx

    HDMI Type A to MPO Male

    Receiver Rx

    HDMI Type A to MPO Male

    Cable connectors

    MPO Male to Male(no direction)

    Cable length

    Max 500meter

    Pull strength

    60 pounds

    Bend radius

    0.20" / 6.5mm

    Fiber Cable

    850nm VCSEL, 50/125μm OM3 MPO, 6-core

    EMI, RFI

    EMI and RFI free

    Power supply

    TX: 0.5W RX: 0.5W; 5V DC(normally supply RX is enough)

    Operating Temp

    04'F- 158F (-20'C - 70%C)/ 0% - 90% RH

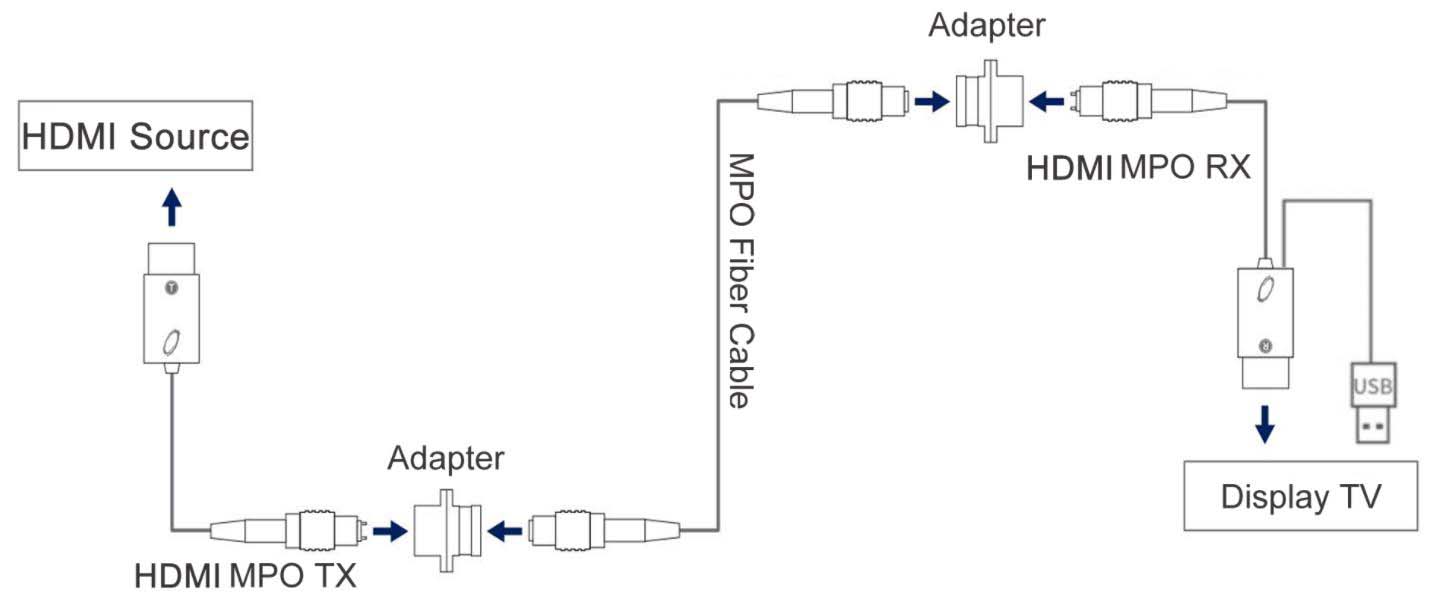

    Diagram
