4K HDMI KVM Fiber Optic Extender

Home Fiber Optic HDMI Fiber Optic Extender 4K HDMI Fiber Optic Extender 4K HDMI KVM Fiber Optic Extender

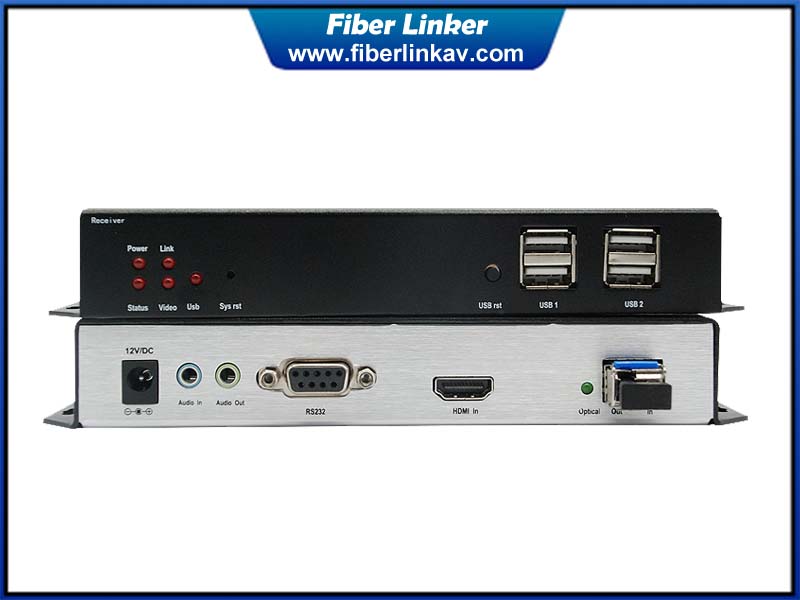

4K HDMI KVM Fiber Optic Extender

  • Product Item:FL101KB
  • 4K@30Hz resolution
  • USB for not only K&B
  • Single Fiber Optic Cable
  • Bidirectional audio, RS232
  • Category:4K HDMI Fiber Optic Extender
  • Inquiry Send Email

    Description

    Description

    4K HDMI KVM Fiber Optic Extender supports 4K@30hz resolution. It includes KVM fiber transmitter, KVM fiber receiver over optical cable. It could extend HDMI1.4 video, bidirectional external audio, RS232, USB over single core fiber cable. USB could support keyboard, mouse, USB disk, printer, touch screen, and other USB devices. It is a multiple functional fiber media device to make the video, data, audio, usb to a long distance over fiber optic cable. It has no software and only hardware working. Easy to install and play

    Fetures

    1. Support resolutions up to 3840*2160@30Hz
    2. Supporting bidirectional Audio(Microphone)
    3. Support copy EDID
    4. Support RS232 transmission (baud rate 115200)
    5. Automatically adjust video compression rate to ensure smooth video stream
    6. High-speed ASIC technology ensures near-zero latency for remote images, keyboards, and mice
    7. Single-mode one-core LC fiber, standard 10KM
    8. Simple to install, plug and play.
    9. Remote USB supports keyboard, mouse, U disk, printer, scanner and other USB external devices
    10. Supports Customization and OEM.

    Specification

    Video Input (Transmitter)

    1xHDMI Type A, 19-pin, female

    Video Output (Receiver)

    1xHDMI Type A, 19-pin, female

    Maximum Video Bit Rate

    10Gbps

    HDMI Format

    4K@30Hz YUV 4:4:4, 1080P, 720P, 576P, 480P/

    VESA Resolution

    EDID

    Support

    Audio Format

    Support LPCM 7.1, Dolby®True HD, DTS-HD Master Audio™

    RS232/USB

    Support, USB could support U disk, printer, touch screen and so on

    Wavelength

    1310nm 1550nm

    Output Optical Power

    -9.5~-3dBm,average @1310nm

    Receiver sensitivity

    -23dBm,average @1310nm

    Output Modulation Amplitude

    180μW

    Input  Modulation Amplitude

    ≤15μW

    Relative Speed

    -116 DB/Hz

    Return Loss

    ≤10 dB

    Distance

    single mode for 10KM standard, Up to 60KM max optional, multimode 300M

    Working Temperature

    -45℃~+70℃

    Storage Temperature

    -60℃~+80℃

    Relative Humidity

    0~95%(non condensing)

    Size

    190mm x110mm x 28mm

    Power Supply

    12V@1A

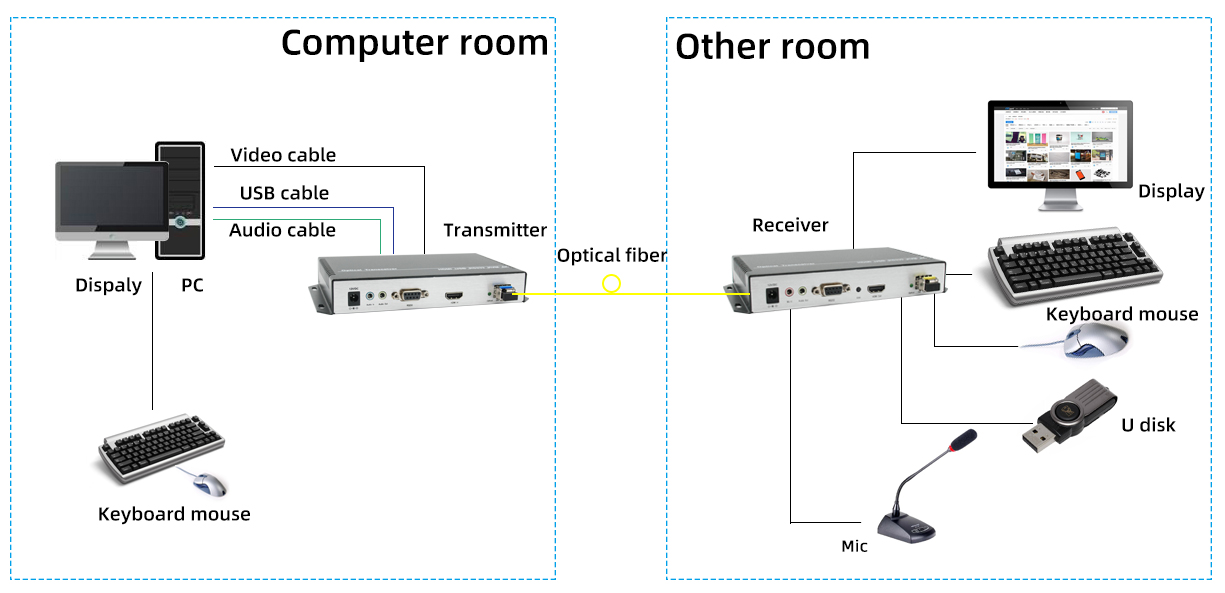

    Diagram
