4K Rattler HDMI Fiber Optic Extender

Home Fiber Optic HDMI Fiber Optic Extender 4K HDMI Fiber Optic Extender 4K Rattler HDMI Fiber Optic Extender

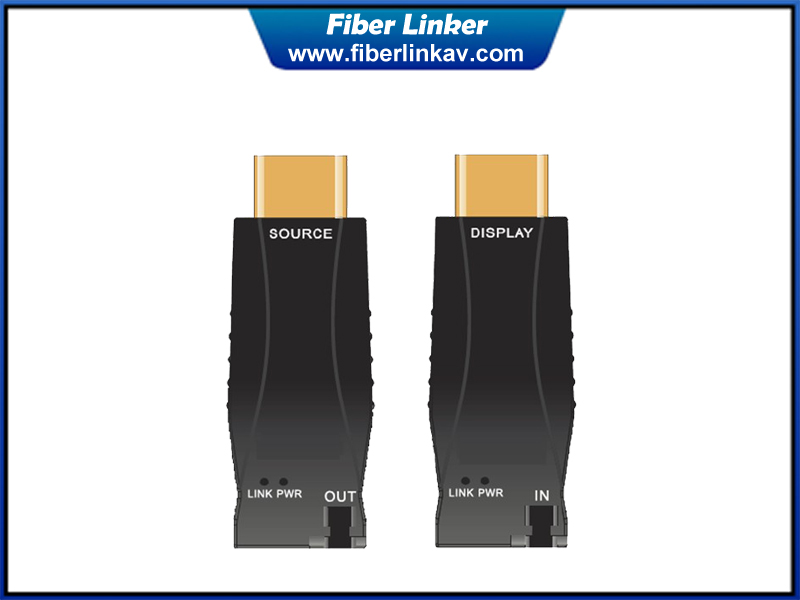

4K Rattler HDMI Fiber Optic Extender

  • Product Item:FL101M
  • 4K resolution
  • Uncompressed Technology
  • Miniature Housing
  • HDMI over single core fiber
  • Category:4K HDMI Fiber Optic Extender
  • Inquiry Send Email

    Description

    Description

    This 4K HDMI Fiber Optic Extender includes a transmitter and a receiver to transmit 4K HDMI digital video to a long distance over fiber cable. It offers graphic TMDS signals to be extensible up to the limits of modal bandwidth of selected OM3 multi-mode glass fibers or Single-Mode fibers. The data rate from the –T to –R is 10.2Gb/s with 1310nm, compliant HDMI 1.4 standard, It Support resolution is up to 3840*2016/30Hz (YUV 4:4:4) or 3840*2016/60Hz (YUV 4:2:0). It support distance up to 300m over OM3 MMF and SMF.

    Features

    1. Miniature Rattler type, plug and play

    2. Resolution up to 3840*2160/30Hz(Y:U:V 4:4:4)

    3. Support resolution 3840*2160/60Hz(Y:U:V 4:2:0)

    4. Extend the HDMI data up to 300 meters over OM3 MMF or SMF Fibex

    5. Support HDCP

    6. Detachable feature with 1x LC OM3 MM Fiber or SM Fiber

    7. The modules are compact enough to directly plug to graphic sources and displays by adopting HDMI plugs

    8. Micro USB-B power connector

    9.    Data security with negligible RFI/EMI emissions and loss of video quality due to no copper conductor present

    Specification



    Parameter

    Specifications

    Resolution

    4k*2k 30Hz

    3840x2160/30Hz (YUV 4:4:4)

    4k*2k 60Hz

    3840x2160/60Hz.(YUV 4:2:0)

    Components

    Laser Diodes in Tx Module

    1310nm FP laser and 1550nm PIN PD

    Photo Diodes in Rx Module

    1550nm FP laser and 1310nm PIN PD

    WDM filter

    Integrated 1310nm/1550nm filter

    Electrical

    Input and Output Signals

    TMDS Level (complying with DVI1.0)

    Data Transfer Rate (Graphic Data)

    Max. 3.4Gbps

    Maximum Pixel Clock Frequency

    340Mb/s

    Maximum Video Bit Rate

    10.3Gb/s

    Total Jitter at the end of Rx output

    Max. 309 ps

    Skew inter-channels

    Max. 6ns

    Optical

    Link Power Budget

    Min 8.5dB

    Mechanical

    Module dimension (mm)

    59.5X20.0X10.5mm

    Connector

    Optical Connector

    1X LC connector

    Electric Connector

    HDMI plug

    Recommended Fiber

    OM3 MMFiber or Single-mode Fiber

    Extend Distance

    300m

    Power Supply

    5V DC

    Working Temperature

    -20 to 50℃

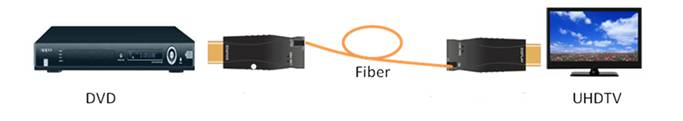

    Diagram
