Description

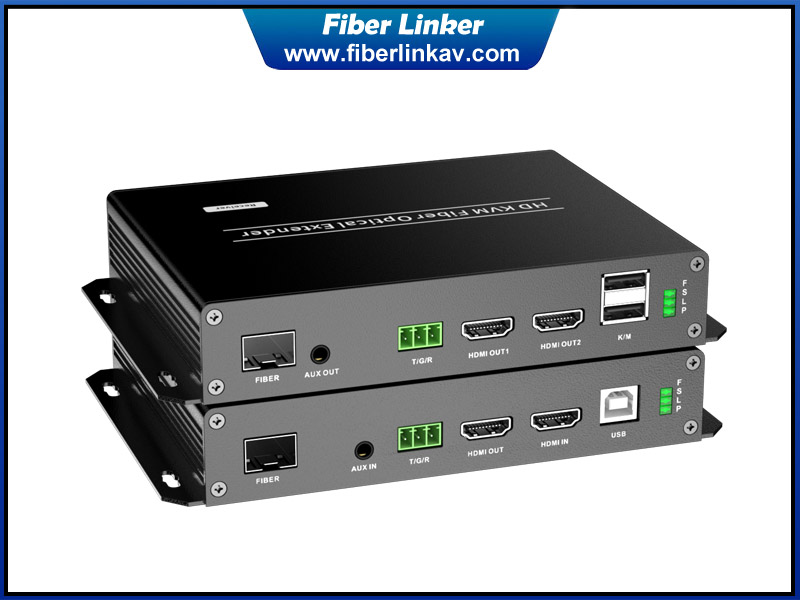

This Kind of HDMI fiber extender could support 4K@60Hz resolution over single core optic fiber cable. The extender has multiple functions with loop out for monitor, duplex data, external audio, bidirectional IR, USB for keyboard and mouse. It could support both single mode fiber cable or multimode fiber cable

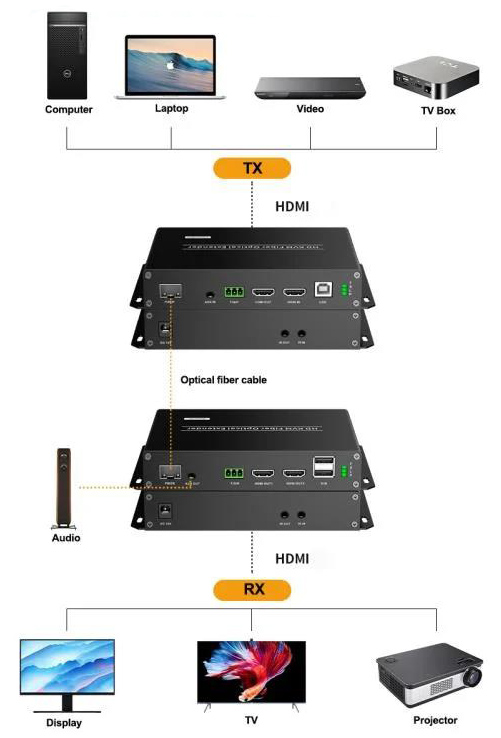

The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Features
1. Support 1-ch 4K60Hz HDMI2.0 video
2. Support HDMI resolution up to 3840x2160@60Hz
3. Support HDMI loop out, external audio
4. Support duplex RS232, bidirectional IR
5. Support USB for keyboard and mouse
6. Support YUV444 and RGB444
7. Compliance with HDMI 2.0 and HDCP 2.2 standard
8. Support automatic EDID
9. Standard transmission is 20KM
10. Compatible with DVI signal transmission.
11. Simple to install, plug and play.
12. Supports Customization and OEM.
Specification
|
Video Input (Transmitter) |
1xHDMI Type A, 19-pin, female |
|
Video Output (Receiver) |
1xHDMI Type A, 19-pin, female |
|
Maximum Video Bit Rate |
18Gbps |
|
HDMI Format |
4K@60Hz YUV 4:4:4, 1080P, 720P, 576P, 480P/ VESA Resolution |
|
EDID |
Support |
|
External Audio |
3.5mm, 1-ch stereo |
|
RS232 |
1-channel duplex, terminal block, Max: 115200bps |
|
IR |
1-ch bidirectional, 3.5mm, 28Khz-61Khz |
|
USB |
For Keyboard and mouse only |
|
Wavelength |
1310nm/1550nm@2.5Gbps |
|
Output Optical Power |
－9.5～－3dBm,average @1310nm |
|
Receiver sensitivity |
－23dBm,average @1310nm |
|
Output Modulation Amplitude |
180μW |
|
Input Modulation Amplitude |
≤15μW |
|
Relative Speed |
-116 DB/Hz |
|
Return Loss |
≤10 dB |
|
Distance |
single mode for 20KM standard, Up to 60KM max optional, multimode 300M |
|
Working Temperature |
|
|
Storage Temperature |
-60℃~+80℃ |
|
Relative Humidity |
0~95%（non condensing） |
|
Size |
123mm x82mm x23mm |
|
Power Supply |
12V@1A |
