Description

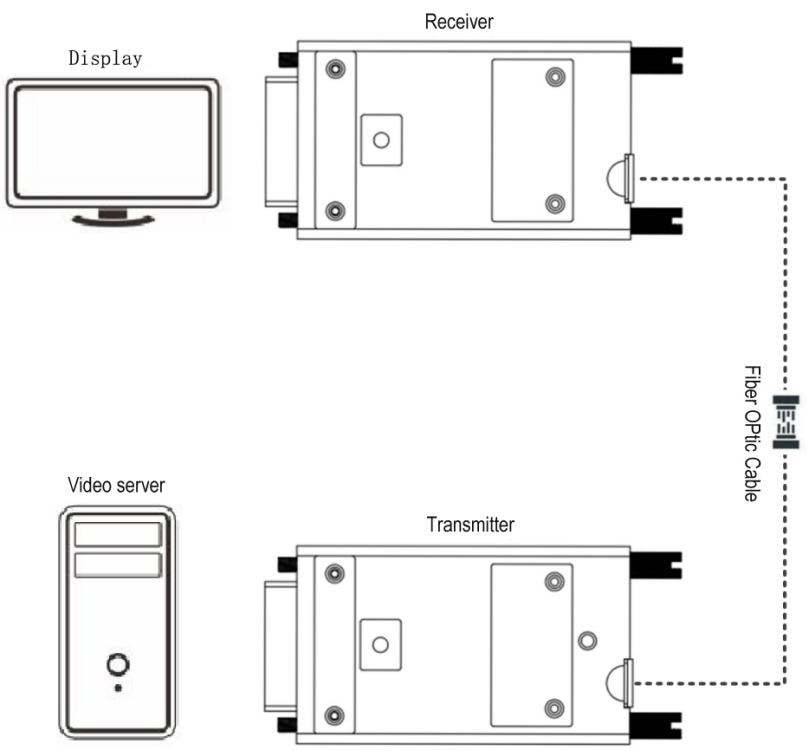

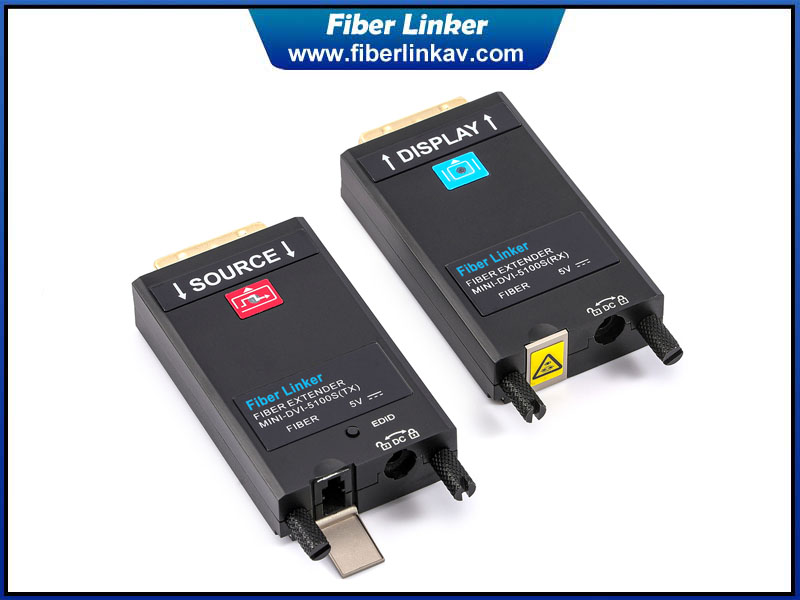

Miniature 4K DVI fiber optic extender is designed with 4K*2K*60Hz DVI video signal. It is compatible with HDM2.0 version to achieve no delay,no compression,high quality signal extension of 1KM.
This DVI fiber extender adopts video processing and photoelectric conversion integrated design,high integration,small size,its optical components and core circuits are imported components, stable performance, suitable for different working environments like stage rental, LED video wall, projection, live tv, video conference and so on
Features
1.Complies with DVI 1.0 single link standard and HDMI 2.0
2.Support 4K*2K*60Hz resolution, compatible with lower
3.Built-in EDID transparent mode,support button learn
4.Support EDID memory storage function after power off
5.Support power supply from the signal source DVI port
6.Support fiber optic dust protection and have anti detachment design to prevent the loss of dust covers
7.Support the power socket with lock
8.Support portable installation of rear long screws
9.Support single fiber transmission of 1km,compatible with multi-mode and single-mode modes
10.Support status light indication
11.Plug and play,without debugging
12.Support OEM USB power supply
Specifications
|
|
Parameter |
Specifications |
|
Resolution |
4k*2k 60Hz |
3840x2160/60Hz (YUV 4:4:4) |
|
Components |
Laser Diodes in Tx Module |
1310nm FP laser and 1550nm PIN PD |
|
Photo Diodes in Rx Module |
1550nm FP laser and 1310nm PIN PD |
|
|
Electrical |
Input and Output Signals |
TMDS Level (complying with DVI1.0) |
|
Maximum Pixel Clock Frequency |
340Mb/s |
|
|
Maximum Video Bit Rate |
10Gb/s |
|
|
Total Jitter at the end of Rx output |
Max. 309 ps |
|
|
Skew inter-channels |
Max. 6ns |
|
|
Optical |
Link Power Budget |
Min 8.5dB |
|
Mechanical |
Module dimension (mm) |
210*160*46mm |
|
Connector |
Optical Connector |
1X LC connector |
|
Electric Connector |
DVI plug |
|
|
Recommended Fiber |
OM3 MM Fiber or Single-mode Fiber |
|
|
Extend Distance |
300m for MM, 1km for SM |
|
|
Power Supply |
5V DC |
|
|
Working Temperature |
-30 to 75℃ |
|
