2X3 Video Wall Controller with USB input

Home AV/IT Video Wall Controller 2X3 Video Wall Controller with USB input

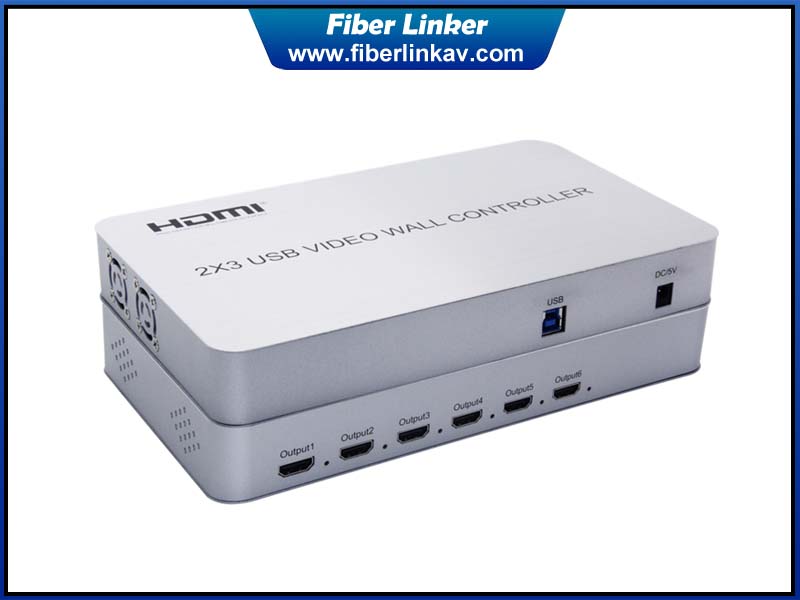

2X3 Video Wall Controller with USB input

  • Product Item:FLC23
  • Video wall controller
  • Mini type 2X3
  • USB resouce input
  • Plug and Play
  • Category:Video Wall Controller
  • Inquiry Send Email

    Description

    Description

    The 2X3 video wall controller is able to data-push the video of USB 3.0 port to max. 6 displays to finish the splicing of the whole video pictures. USB 3.0 port support max.4K resolution input and output HD video pictures to displayers. It is widely used in many supermarkets, and other advertising biuldings

    Features

    1. Support USB 3.0

    2. Support input highest resolution: 4k
    3.  Support HD hdmi output
    4. Support the image 90 degree rotate
    5. Support discretionarily splicing mode, the max 6 displays.
    6. Support give best resolution for displays automatically.
    7. Support perfect image without stretch
    8. Support only Win 10 system and 64 bit

    Specification

    USB Version Resource Input

    USB 3.0

    Input Resolution

    up to 4K

    Output Resolution

    Max. 1080P

    Input Cable Length

    ≤1.5 M   USB3.0 standard cable

    Output Cable Length

    ≤10M    AWG26 HDMI  standard cable Max

    Working Current

    2 A

    Power Adaptor

    Input AC (50HZ, 60HZ) 100V-240V; Output: DC5V/3A

    Working Temperature Rang

    -10 ~ +55℃

    Dimension

    263x159x38(mm)

    Weight

    appr.1255g

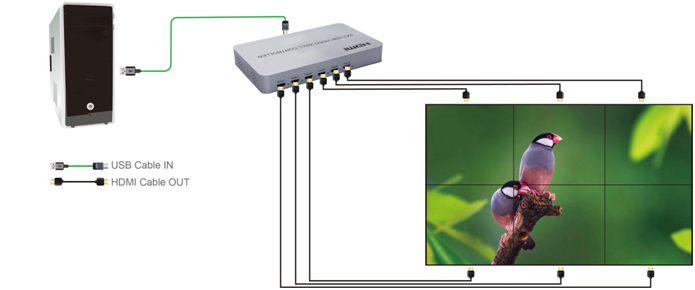

    Operating and Connecting
