Description
Description

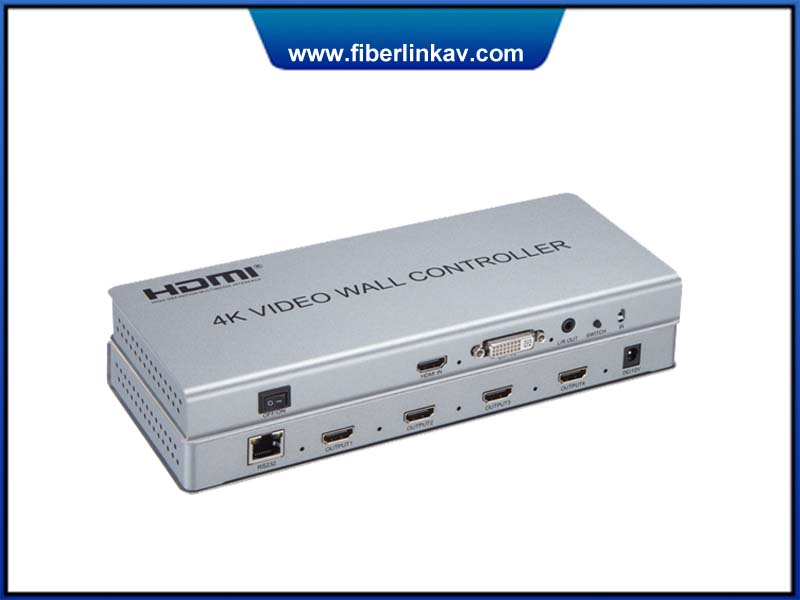

The 4K 2x2 video wall controller , support 1-way HDMI or DVI input and 4 HDMI output, the main function is to divide a complete HDMI,DVI HD image signal into 4 blocks and assign to 4 video display unit (such as Rear projection unit, LCD TV, etc.), Complete with 4 HDMI high-definition video display units to form a large dynamic image screen
Features
1. Support 1 DVI or HDMI input
2. Input support HDMI1.4 ,HDCP1.4
3. Support 4 HDMI outputs, 1 3.5mm audio output
4. Input resolution include 1920x1080P 25/30/50/60HZ,3840x2160P 25/30HZ; Output resolution include 1920x1080P 25/30/50/60HZ
5. Input format: YUV422 16bit、RGB444 24bit; Output format: RGB444 24bit
6. Support RS232 protocol (Net port RJ45)
7. Easy to operate, plug and play
8. DC12V/2A power adapter

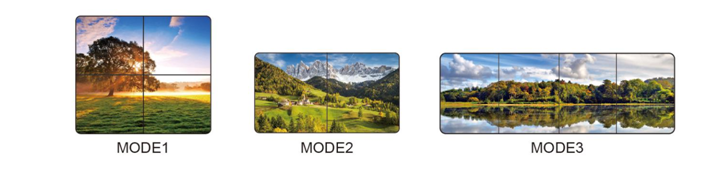

Three splicing modes : 2x2 ; 1x2 ; 1x4

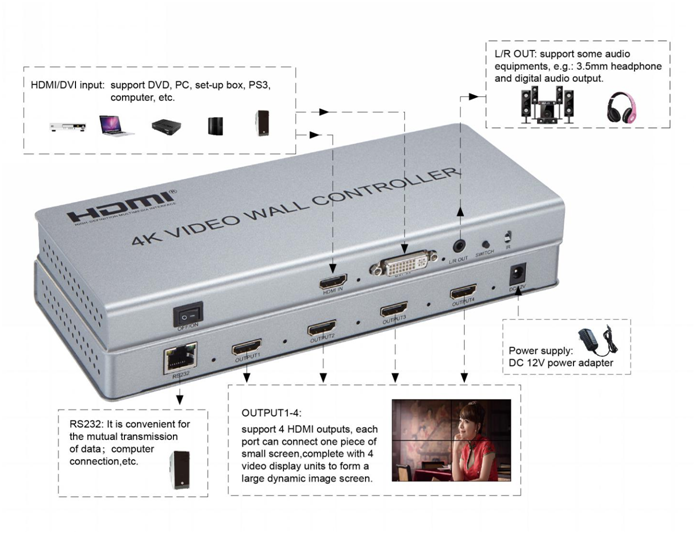

Operating and Connecting
