16X1 SDI multiviewer with 2 SDI and 1HDMI out

Home Telecast AV Broadcast Matrix Switcher and Multiviewer 16X1 SDI multiviewer with 2 SDI and 1HDM

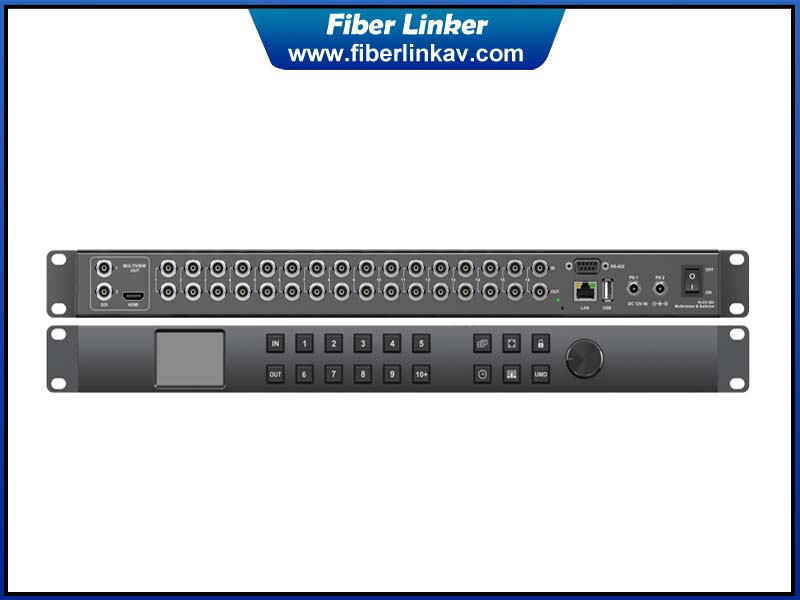

16X1 SDI multiviewer with 2 SDI and 1HDMI out

  • Product Item:FL1616S
  • 16x16 Matrix Router
  • 16X1 SDI multiviewer with HDMI/SDI out
  • Support audio meter
  • Broadcast quality
  • Category:Broadcast Matrix Switcher and Multiviewer
  • Inquiry Send Email

    Description

    Description

    16X1 3G-SDI Multiviewer is the perfect solution for a large broadcast project. It also has SDI matrix router function. One machine supports two modes, 16 channel SDI multiviewer mode and 16x16 SDI matrix switcher. The input signal detects SD, HD and 3G-SDI automatically. The video format of multiviewer outputs can be selected from total 9 formats from 720p to 1080p. There are 20 preset layouts including 16/12/11/10/9/8/6/4 for choices. You can even SOLO any input signal in full screen through the shortcut key. This product also supports UMD, audio meter, signal status and time code overlay. All functions can be quickly controlled by the PC software or front panel button & knob.

    Features

    1.Dual modes: 16-ch multiviewer and 16X16 matrix switcher
    2.16X3G-SDI auto-detected inputs
    3.2x3G-SDI & 1x HDMI multiview scaling output with audio
    4.Full screen, and 20 preset multiview layouts with clock display
    5.Time code, UMD, signal status and audio meter overlay
    6.Front panel buttons and knob control with LCD display
    7.Free PC control software via LAN port
    8.Dual power design, redundant power

    Specification


    SDI Video Input

    16×SD/HD/3G-SDI/DVI-ASI(75Ω BNC)

    SDI Video output

    16+2×SD/HD/3G-SDI/DVI-ASI(75Ω BNC)

    HDMI Video Output

    1×HDMI type A

    SDI input format

    (HD) 1920×1080p60/59.94/50/30/29.97/25/24/23.98

    (HD) 1920×1080PsF 30/29.97/25/24/23.98

    (HD) 1920×1080i 60/59.94/50

    (HD) 1280×720p 60/59.94/50

    (HD) 1280×720p 30/29.97/25/24/23.98

    (SD) 625i 50, (SD) 525i 59.94

    SDI compliance

    SMPTE 292M, SMPTE 259M, SMPTE 424M, SMPTE352M,

    SMPTE296M

    SDI Color Space and Precision

    YUV 4:2:2/4:4:4, RGB 4:4:4 (SDI inputs)

    YUV 4:2:2(SDI & HDMI outputs)

    SDI & HDMI Outputs Format

    1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50


    Audio Setting

    Support audio source, audio meter, 16 channels

    Control

    Front panel button,
    PC software via LAN/RS-232

    Updates and Configuration

    LAN(RJ45)

    Power Supply

    PS-1, PS-2, power redundancy

    Voltage Range

    DC 12-24V

    Power Consumption

    36W

    Dimension

    Standard 19” 1 rack unit

    Net Weight

    2.0kg

    Gross Weight

    3.8kg 
