16X16 Broadcast 8K 4K 12G-SDI Matrix Switcher

Home Telecast AV Broadcast Matrix Switcher and Multiviewer 16X16 Broadcast 8K 4K 12G-SDI Matrix Swi

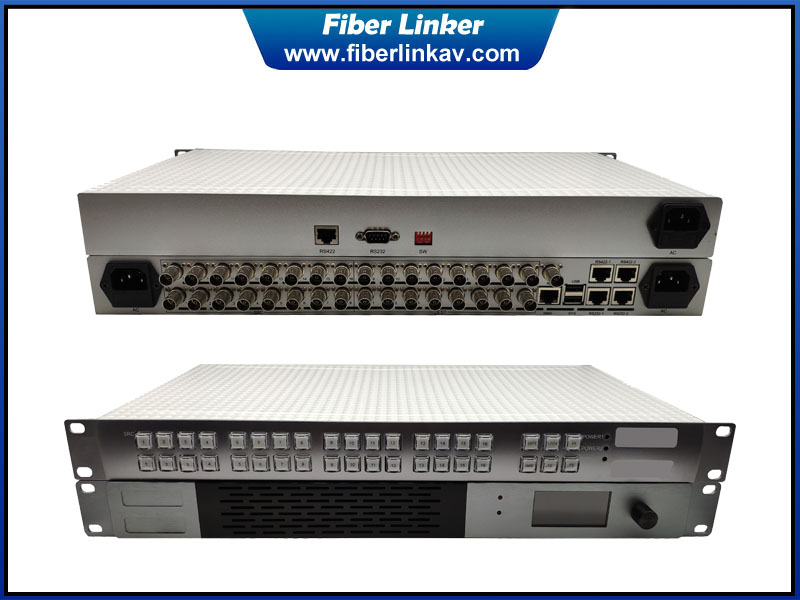

16X16 Broadcast 8K 4K 12G-SDI Matrix Switcher

  • Product Item:FL-MS1616
  • 12G-SDI Matrix Switcher
  • 8K and 4K resolution
  • Seamless Switching
  • 12G-SDI Matrix Router
  • Category:Broadcast Matrix Switcher and Multiviewer
  • Inquiry Send Email Manual Download

    Description

    Description

    The 12G SDI matrix switcher is new launched by our company for digital signal transmission switching in UHD 4k studio systems and digital broadcasting systems. It is a high-performance matrix product with digital scheduling and switching for 8K, 4K 12G-SDI video signal which fully meets the needs of various small and medium-sized video scheduling systems for radio and television. This is also the first high-definition 8KSDI matrix switcher on the market, which supports 4-channel 8KSDI switching at the same time.

    The Switcher can be connected to the REF reference synchronization signal, and the switching adopts the field blanking switching process to ensure SDI signal switching is mute without flicker.
    The matrix adopts the design structure that the signal processing host and the remote control panel are separated, which is very convenient for users to remote control, and is suitable for studios and television broadcast centers.
    OB vans and other high-performance real-time occasions.

    Features

    1. 1U rack type, maximum support 16X16 12G-SDI signal switching
    2. Support 4X12G 8K signal switching, backward compatible with 4X3G 4K signal switching
    3. Support seamless switching
    4. Support multi-standard signal mixed switching
    5. Full-color LCD display can view in real time operation status, signal input and output status and other information
    6. SNMP: Support SNMP v2c protocol, support get, trap dual mode
    7. Up to 30 days of full-scale operation logging for the host + panel
    8. Support WEB interface detailed configuration and log export
    9. Support dual power supply to make system more reliable

    Specification

    SDI Video Input

    Input Channel

    16

    Video Signal

    12G-SDI compatible with 6G/3G/HD-SDI

    UHD video format

    4320P 60/50/30 ; 2160P 60/50/30 ; 1080P 60/50/30/24/23.97 ;

    1080i  60/50/30/24/23.97 ; 720P60/50 ; 576I50 ; 480I60

    Connector

    75Ω BNC

    Format conversion

    Down conversion

    SDI specification

    SMPTE292M; SMPTE259M;SMPTE296M; SMPTE372M; SMPTE424M-B and SMPTE425M; SMPTE ST-2081

    Audio input

    Embedded audio support

    SDI Video Output

    Input Channel

    16

    Video Signal

    12G-SDI compatible with 6G/3G/HD-SDI

    UHD video format

    4320P 60/50/30 ; 2160P 60/50/30 ; 1080P 60/50/30/24/23.97 ;

    1080i  60/50/30/24/23.97 ; 720P60/50 ; 576I50 ; 480I60

    Connector

    75Ω BNC

    MTBF

    >100000 hours

    Remote Control

    RS422*2 ; RS232*2 ; RJ45*1 ; USB*1

    Power Consumption

    Host: 50W*2, Control panel:15W

    Housing

    1U rack mount

    Weight

    8Kg/PCS

    Application

    Remote OB Van/Truck Video Feeds, Broadcast Studio Camera Feeds, TV station/video conference, broadcast live transmission, Medical/Surgical Room Broadcast, Building to Building video conference, video wall controller, commend center.

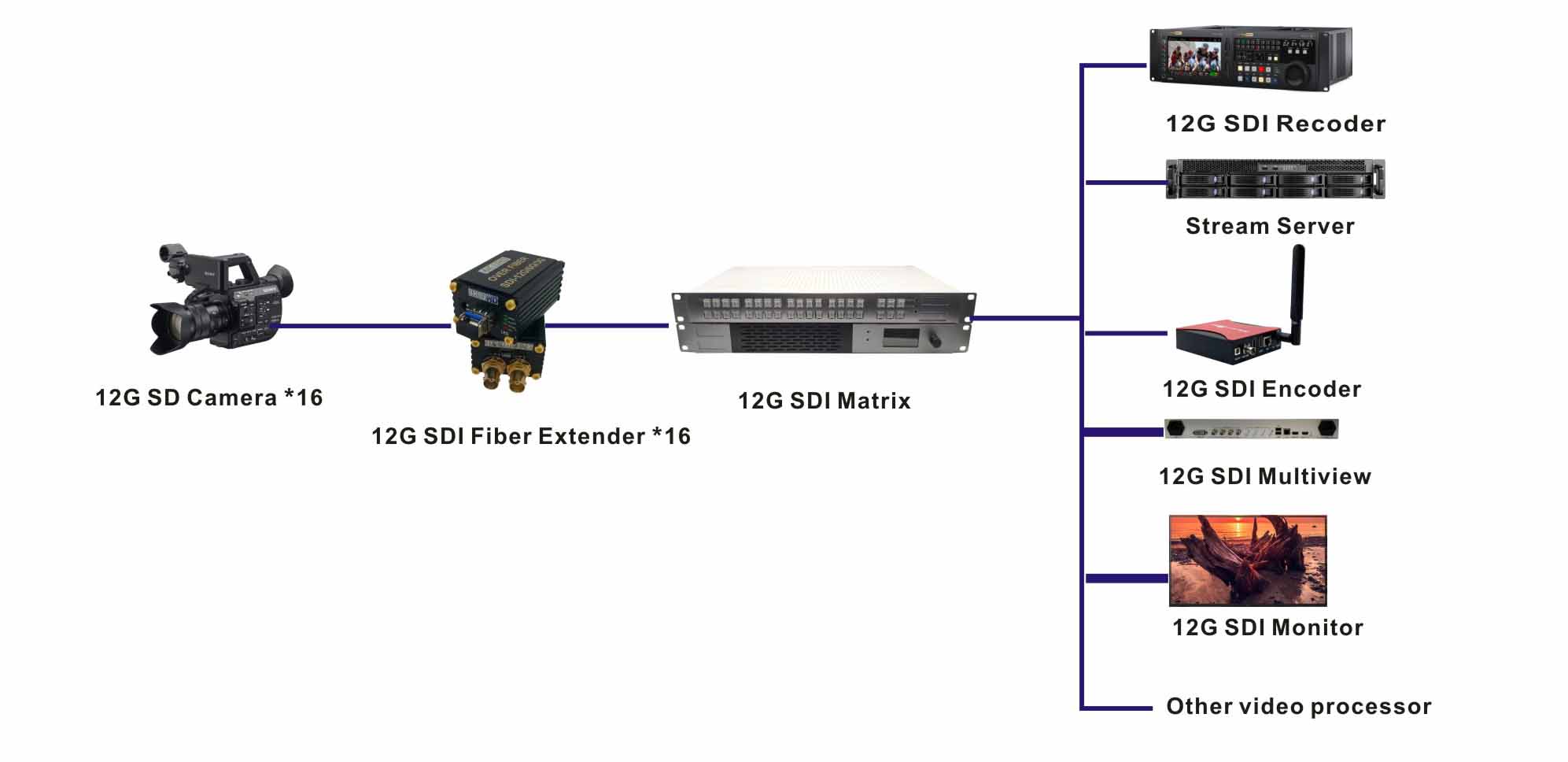

    Diagram
