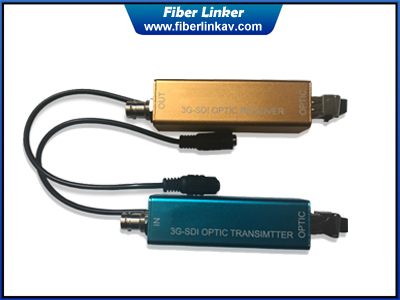

Rattler HD-SDI Fiber Optic Extender with SFP module and USB power supply

Home Telecast AV Broadcast SDI Fiber Optic Extender HD-SDI Fiber Optic Extender Rattler HD-SDI Fiber Optic Extender with

Rattler HD-SDI Fiber Optic Extender with SFP module and USB power supply

  • Product Item:FLH10R2
  • Broadcast Quality Level
  • Compatible with DVB-ASI
  • Uncompressed CWDM Solution
  • Overseas Large Integrator Application
  • Category:HD-SDI Fiber Optic Extender
  • Inquiry Send Email Manual Download

    Description

    Description

    Beijing Fiber Linker has been in video audio transmission system solution for almost 10 years. Our HD-SDI fiber optic extender has been widely used in our domestic and overseas for broadcast TV transmission system. We could do 12G-SDI/6G-SDI/3G-SDI/HD-SDI extender over fiber by CWDM, DWDM and TDM uncompressed solution with data, external audio Ethernet, tally and other functions. The fiber connectors could be ST, FC, SC, LC, SMPTE, LEMO type. We welcome any OEM request for SDI over fiber kit series.

    Features

    1. Support SMPTE-292M(HD-SDI) and SMTPE-259M(SD-SDI)

    2. Compact small size, easy to install

    3. Data rate from 19.4Mbps up to 1.485Gb/s

    4. SMPTE 292M (1.485Gb/s) clock recovery

    5. support all popular standards for digital video transport such as  SMPTE 292M, and SMPTE 259M, SMPTE      297M working at HD-SDI, SD-SDI, ASI respectively

    6. +5V USB power supply

    7. Support automatic cable equalization based on the data rate detected

    8. LED status indicators monitor the critical parameters

    9. Optional CWDM/DWDM wavelength

    Specification

    SDI Input

    Number

    1

    TV signal standard

    SMPTE 292M,259M,297M,305M,310M, M2S, DVB-ASI, DVB-SSI and other Telecom/Datacom rate (19.4Mb/s – 1.485Gb/s)

    Reflection loss

    >15DB

    Equilibrium

    0-100m @ 1.485Gb/s

    Connector

    75Ω BNC male

    SDI Output

    Number

    1

    Signal level

    800mV nominal

    Rise/fall time

    200Ps nominal

    Overshoot

    <10% amplitude

    Reflection loss

    > 15dB

    Jitter

    < 0.2UI

    Connector

    75Ω BNC  male

    Fiber Optic

    Channel

    1

    Type/Distance

    Single-mode/20KM standard, optional max 80KM

    Wavelength

    1310nm standard, optional CWDM 16 wavelength

    Connector

    LC/PC(ST/PC optional)

    Output Power

    About -6dB to +1dB

    Receiver sensitivity

    -8dB for 20KM,  optional max is -24dB

    Power and Environmental

    Operating temperature

    -40℃~+45℃

    Power Supply

    +5V

    Power Consumption

    3W

    EMI/RFI

    FCC Part 15 Class A, EU EMC standard

    MTBF

    >100000 hours

    Other

    Size

    80*25*25mm

    Weight

    1Kg (TX+RX)

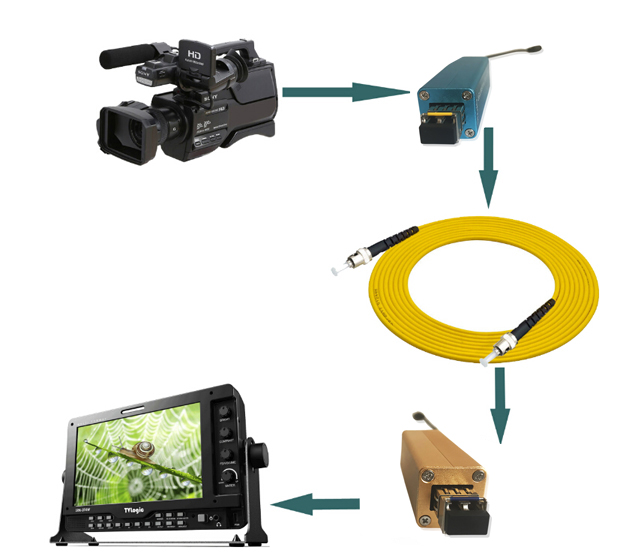

    Diagram
