Camera Link 2-ch HD-SDI Fiber Converter over single core optical network

Home Telecast AV Broadcast SDI Fiber Optic Extender HD-SDI Fiber Optic Extender Camera Link 2-ch HD-SDI Fiber Converter

Camera Link 2-ch HD-SDI Fiber Converter over single core optical network

  • Product Item:FLH20L
  • Broadcast Quality Level
  • Compatible with DVB-ASI
  • Uncompressed CWDM Solution
  • Overseas Large Integrator Application
  • Category:HD-SDI Fiber Optic Extender
  • Inquiry Send Email Manual Download

    Description

    Description

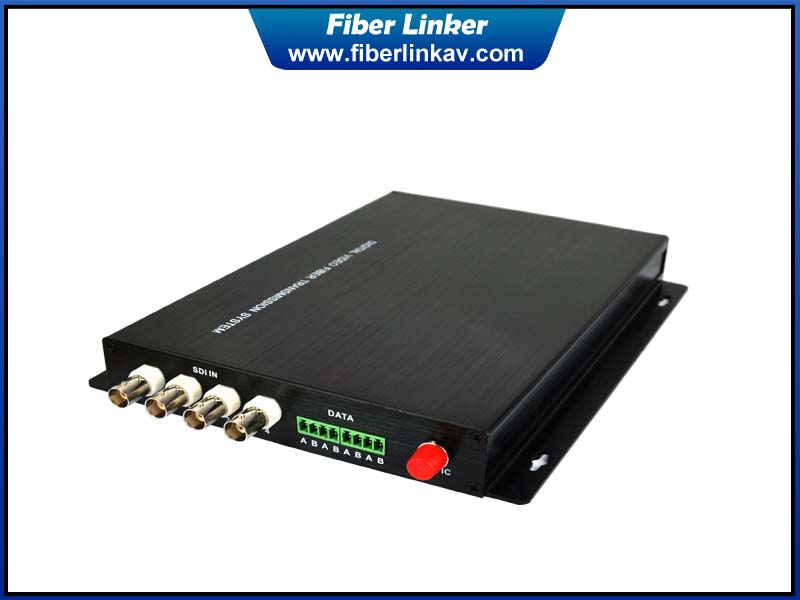

    This HD-SDI Fiber Converter has 2-ch HD-SDI input and 2-ch HD-SDI loop out in transmitter end, has 4-ch quad HD-SDI output in receiver end. It means this extender has  spliter of each input and out SDI signals in TX and RX. It has internal SFP broadcast HD-SDI optical transceiver module inside the housing. Uncompressed technology with CWDM solution.

    Features

    1. 2-ch HD-SDI/ASI video with embedded audio over one fiber optic cable over CWDM, every SDI signal has loop out

    2. Compatible with HD-SDI, SD-SDI, DVB-ASI

    3. Bandwidth range from 19.4Mb/s to 1.485Gb/s

    4. SMPTE 292M (1.485Gb/s) clock recovery

    5. support all popular standards for digital video transport such as SMPTE 292M, and SMPTE 259M, SMPTE      297M working at HD-SDI, SD-SDI, ASI respectively

    6. Built-in CWDM system, SFP modules for each path

    7. Support automatic cable equalization based on the data rate detected

    8. LED status indicators monitor the critical parameters

    9. We could make it as your requested specifications

    Specification

    SDI Input

    Number

    2 input, 2 loop

    TV signal standard

    SMPTE292M,259M,297M,305M,310M, M2S, DVB-ASI, DVB-SSI and other Telecom/Datacom rate(19.4Mb/s – 1.485Gb/s)

    Reflection loss

    >15DB

    Equilibrium

    0-100m @ 2.97Gb/s

    Connector

    75Ω BNC

    SDI Output

    Number

    4 output

    Signal level

    800mV nominal

    Rise/fall time

    200Ps nominal

    Overshoot

    <10% amplitude

    Reflection loss

    > 15dB

    Jitter

    < 0.2UI

    Connector

    75Ω BNC

    Other Function

    OEM ODM supported

    Fiber Optic

    Channel

    1

    Type/Distance

    Single-mode/20KM standard, optional max 80KM

    Wavelength

    CWDM 2 wavelength

    Connector

    FC/PC(LC/ST/PC optional)

    Output Power

    About +5dB to +8dB

    Receiver sensitivity

    -8dB for 20KM,optional max is -24dB

    Power and Environmental

    Operating temperature

    -40℃~+45℃

    Power Supply

    90VAC to 245VAC

    Power Consumption

    12W

    EMI/RFI

    FCC Part 15 Class A, EU EMC standard

    MTBF

    >100000 hours

    Other

    Stand alone

    230X180X30mm

    Weight

    3Kg (TX+RX)

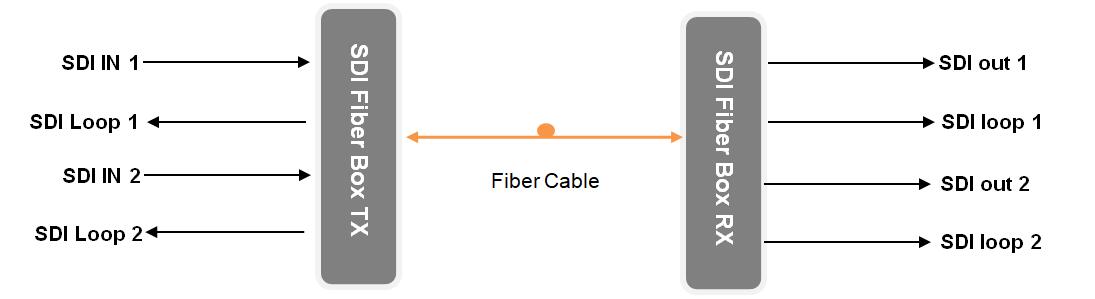

    Diagram
