RF L-Band Optical Transmitter for CATV and Satellite

Home Telecast AV Optical Tansmitter and Receiver RF L-Band Optical Transmitter for CATV a

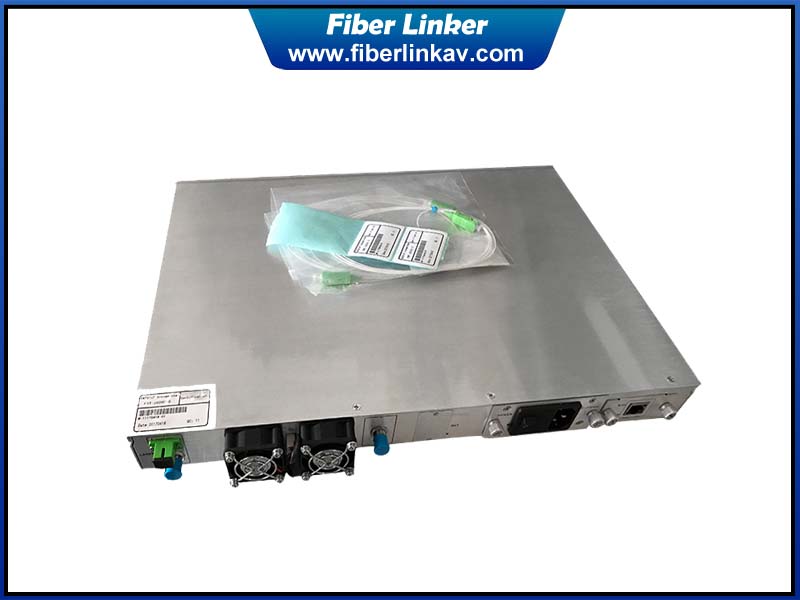

RF L-Band Optical Transmitter for CATV and Satellite

  • bandwidth:950~2600MHz
  • distance: 15KM to 80KM
  • RF over fiber
  • 1U or insert card
  • Category:Optical Tansmitter and Receiver
  • Inquiry Send Email

    Description

    Descriptions

    RF L-Band Optical Transmitter for CATV and Satellite could extender RF signals to a long distance over fiber cable with the bandwidth of 950~2600MHz. It is the device widely used by traditional TV transmission system. We could supply CWDM or DWDM fiber wavelength for each RF channel

    Normal RF optical transmitter is 1U rack mount, it adopts low noise, narrow bandwidth and continuous wave DFB lasers with thermoelectric cooler from JDSU, Fujitsu or MITSUBISHI. Adopting original  high quality  critical components and system optimization control technology and SMNP technology designed by our own, the technical parameter of the whole machine completely meet the standard of other like products imported from Europe and U.S.A, providing remarkable photo, digital and compressed digital signals in long-distance transmission for CATV and satellite communication.

    Festures

    1. High quality: original system optimization control technology and RF pre-distortion technology ensure that the system         can acquire the maximum CTB, CSO, and SBS targets in the case of excellent performance CNR .

    2. Flexibility: it can independently transmit 1~2 ways of satellite signals.

    3. Reliability: The 19 "1U standard rack, built-in high-performance dual switching power supply, it can work in the backup       at 85 ∽ 265Vac City Network Voltage, MS-level automatic switching; chassis cooling automatic temperature control.

    4. Intuitive: The machine is equipped with microprocessor monitors the working state of the laser, the panel LCD window       displays the operating parameters.

    5. Network type: Select All-piece status monitoring transponder guarantee to meet the national standard and compabile         with the SCTE HMS standard, it enable network management monitoring capabilities.

    6. Hot plug-in type:Aluminum structured plug switching power supply allows for heat dissipation and replacement. Dual       power supply both hot and cold backup.

    Specification

    No.

    Item

    Units

    Parameter

    Note

    1

    Laser  Type


    DFB

    See in specification

    2

    Wavelength

    nm

    1550±10;


    3

    Side Mode Suppression Ratio

    dB

    ≥45

    SMSR

    4

    Noise Equivalent Intensity

    dB/Hz

    ≤-145

    RIN (20~2700MHz)

    5

    Optical Modulation


    Direct


    6

    Optical Output Power

    dBm

    3~10

    See specification

    7

    Return Loss

    dB

    ≥50


    8

    Optical Fiber Connector


    FC/APC,SC/APC optional

    Note before ordering

    IF

    1

    Work Bandwidth

    MHz

    900~2700

    =


    2

    Input Level

    dBM

    -40~-20

    Total input power

    3

    Flatness

    dB

    ±1.0


    4

    IMD

    dB

    -40dBc

    Total input power≤-20 dBM

    5

    Input Impedance

    Ω

    75


    6

    Input Return Loss

    dB

    >12


    General Parameter

    15

    Power Supply(dual power supply, hot plug in)

    V

    90~265

    48VDC optional

    16

    Power Consume

    W

    ≤50

    Work in Single power

    17

    Work Temp.

    ℃

    0~50

    Automatic Shell Temp. Control

    18

    Storage Temp.

    ℃

    -20~85


    19

    Operating Relative Humidity

    %

    20%~85%


    20

    Size

    ″

    19″×11″×1.75″

    (W)x(D)x(H)

    21

    SNMP Interface



    RJ45

    Browser and SNMP

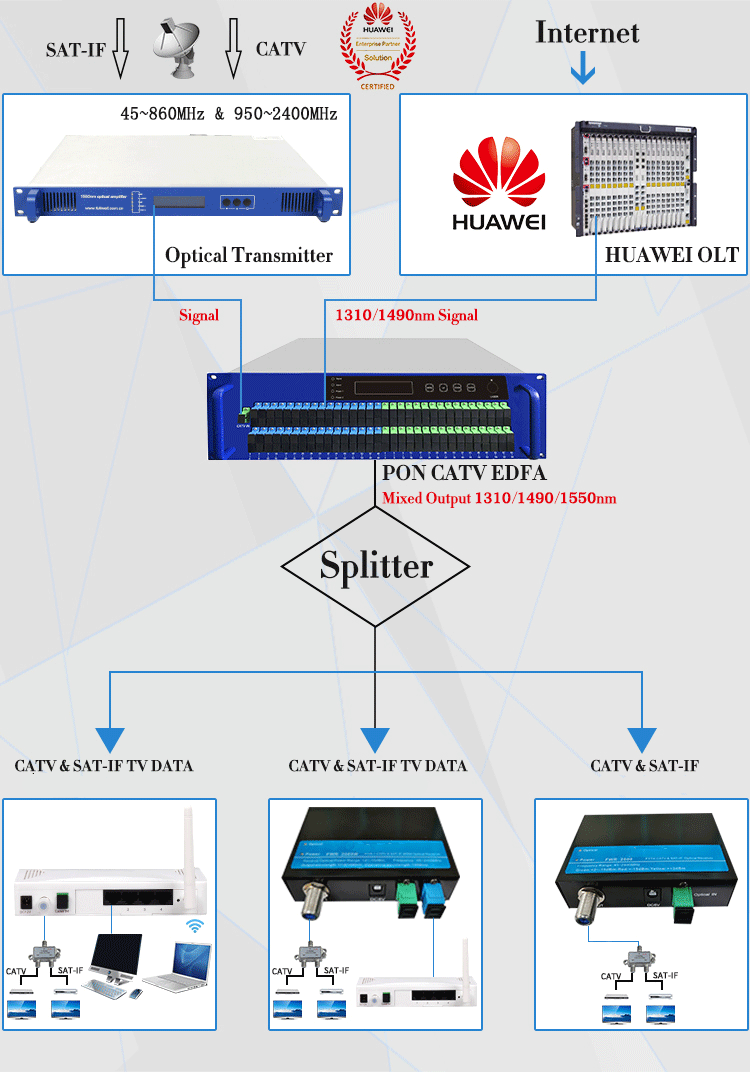

    Transmission Diagram
