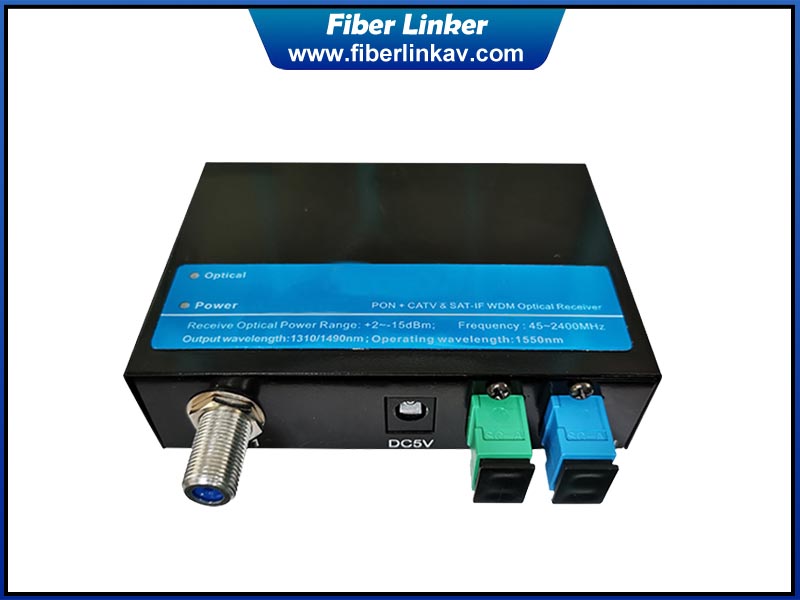

FLR-2600 CATV&SAT-IF optical receiver is high performance product used for Fiber to the home ( FTTH ) broadband access, which can satisfy the demand of receive CATV, CATV signal of satellite IF. This device adopts high bandwidth, High sensitivity phototube and low noise matching circuit. Its optical receiving power range is -15～+2dBm, with AGC -8～0dBm/RF80dBuv. The optical power receiving monitoring indicator LED and power LED are provided on the pane , convenience of customers use. Optical receiver model FLR-2600D is with filter working for 1540～1565nm, while model FLR-2600W is with WDM, namely PON port.
Specification
|
Item |
Description |
Remark |
|
|
Input Optical Power Range |
-15~+2dBm |
|
|
|
AGC：-8~0dBm |
|
||
|
Responsivity |
≥0.9A/W |
|
|
|
Optical Return Loss |
≥45dB |
SC/APC |
|
|
Receive Wavelength |
1260~1600nm |
FWR-2600 |
|
|
1540~1565nm |
FWR-2600D |
||
|
1550nm/1310+1490nm |
FWR-2600W |
||
|
Frequency Range |
45-2150MHz |
CATV &SAT-IF |
|
|
CA TV
|
Flatness |
±1.0dB(47~1000MHz) |
|
|
Output Level |
≥80dBμV |
-8~0dBm/AGC |
|
|
CNR/CSO/CTB |
≥50dB/≥60dB/≥65dB |
-1dBm input power |
|
|
MER/BER |
≥32(64QAM)/≤1×10-4 |
-12dBm |
|
|
Return Loss |
≥14dB(47~1000MHZ) |
Output Impedance/75Ω |
|
|
AGC Stability |
±1dB(-8~0dBm) |
|
|
|
SAT - IF |
Flatness |
±1.5dB(1000~2400MHz) |
It varies with the input level. |
|
Output Level |
≥80dBuv |
-8~0dBm/AGC |
|
|
Return Loss |
≥10dB(1000~2150MHz) |
Output Impedance/75Ω |
|
|
AGC Stability |
±1dB(-8~0dBm) |
|
|
|
RF Connector |
F-female |
|
|
|
Optical Connector |
SC/APC |
|
|
|
PON Connector |
SC/APC or SC/UPC |
Depending on the user's choice |
|
|
Power Supply |
5V/500mA |
outlay AC90～255V→DC5V |
|
|
Power Consumption |
<2W |
||
|
Working / storage temperature |
-5~45℃/-25~75℃ |
5～90（Non-condensation） |
|
|
Dimensions |
92×80×25mm |
Iron box
structure |
|

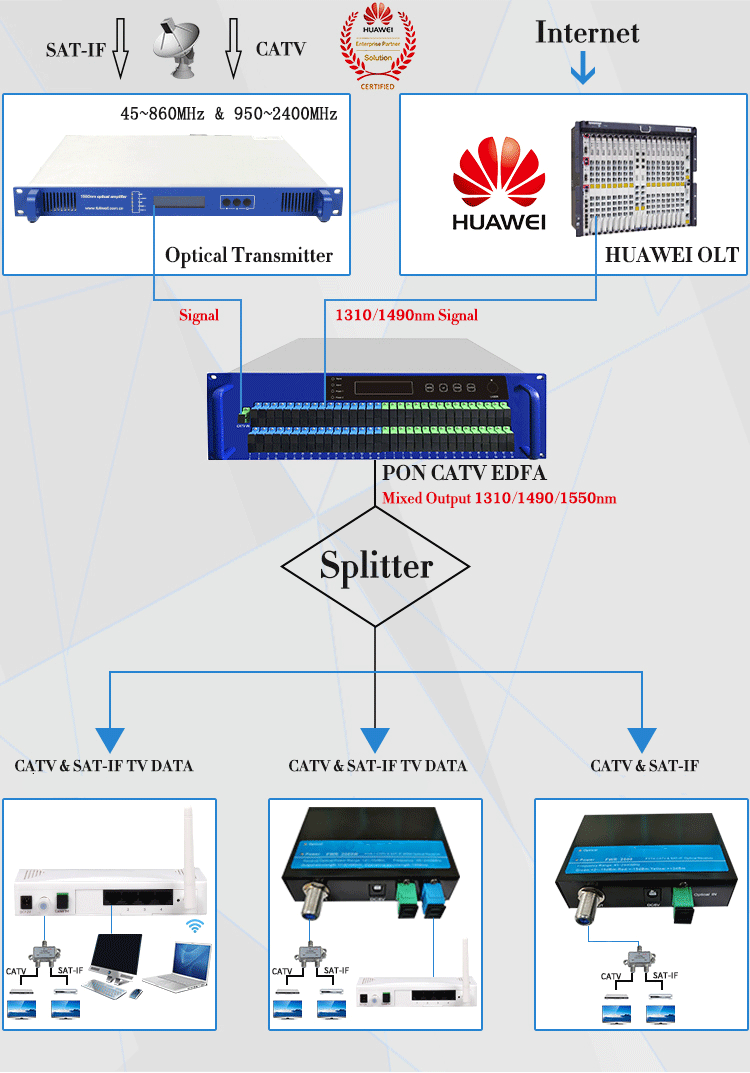

Transmission Diagram
