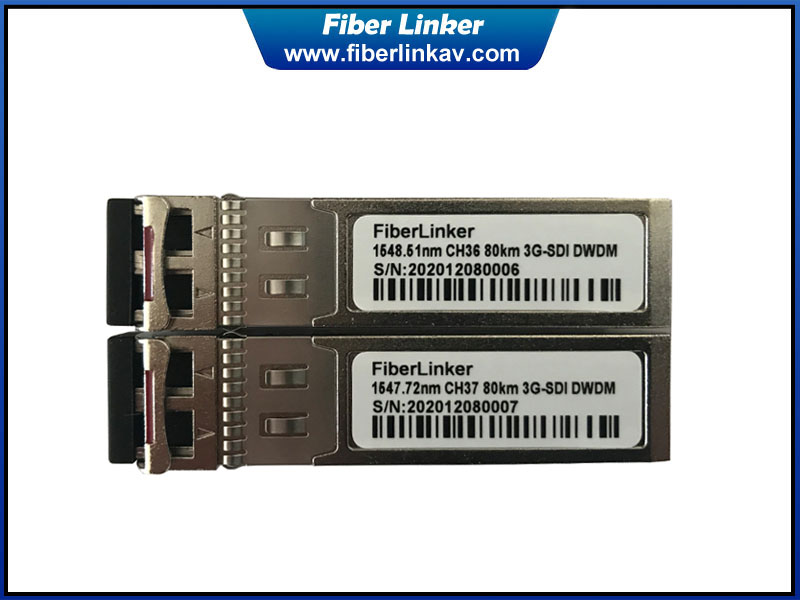

3Gb BIDI DWDM SFP Optical Transceiver Module for SD/HD/3G-SDI

Home Fiber Optic Optical Transceiver Module 12G 6G 3G HD SDI Optical Transceiver 3Gb BIDI DWDM SFP Optical Transceiver Mo

3Gb BIDI DWDM SFP Optical Transceiver Module for SD/HD/3G-SDI

  • Product Item:DWDM 3G-SDI SFP Optical Transceiver Module
  • 3G-SDI SFP Optical Transceiver Module
  • Compatible 3G-SDI, HD-SDI, SD-SDI, ASI
  • CWDM DWDM optional
  • Pathological compatible optional
  • Category:12G 6G 3G HD SDI Optical Transceiver
  • Inquiry Send Email

    Description

    Description

    The 3G-SDI 3Gb/s SFP Optical Transceiver Module is designed to transmit data rates from 50Mbps to 2.97Gbps and is specifically designed for robust performance in the presence of SDI pathological patterns for SMPTE 259M, SMPTE 344M, SMPTE 292M and SMPTE 424M serial rates. The module is fully compliant with SMPTE 297M-2006. The transmitter is consists of two sections: a CWDM or DWDM DFB laser transmitter and MCU control unit. All modules satisfy class I laser safety requirements. It is also widely used in CWDM and CWDM MUX/DEMUX SDI EO/OE transmission network system.

    The SDI optical transmitter are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA. It is normally used for 3G-SDI fiber converter, HD-SDI fiber optic extender, or SDI CWDM and DWDM transmission system.

    Features

    1. 3Gbps Upstream,HD-SDI SFP Transmitter available, SD-SDI SFP Transmitter available, 3G-SDI SFP Transmitter available

    2. 80km Reach MAX. Standard is 20KM, compatible with ASI, TS standard

    3. Metal enclosure for Lower EMI

    4. Optional CWDM DFB laser or DWDM, optional simplex or duplex , OEM

    5. SMPTE 297-2006 Compatible.

    6. Optional video pathological patterns for SD-SDI, HD-SDI and 3G-SDI

    7. Compliant with SFP MSA and SFF-8472 with single LC receptacle

    8. Digital Diagnostic functions available through the I2C interface

    9. Hot-pluggable, Operating case temperature:-40 to +85°C

    Optical and Electrical Characteristics

    Parameter

    Symbol

    Min

    Typical

    Max

    Unit

    Notes

    Transmitter

    Centre Wavelength

    λc

    xxxx-6

    xxxx

    xxxx+7.5

    nm


    Spectral Width (RMS)

    Δσ



    1

    nm


    Spectrum Bandwidth(-20dB)

    SMSR

    30



    dB


    Average Output Power

    Pout

    2

    3

    5

    dBm

    1

    Extinction Ratio

    ER

    8.2



    dB


    Optical Rise/Fall Time (20%~80%)

    tr/tf


    130

    180

    ps

    2

    Data Input Swing Differential

    VIN

    350


    1800

    mV

    3

    Input Differential Impedance

    ZIN

    90

    100

    110

    Ω


    TX Disable

    Disable


    2.0


    Vcc

    V


    Enable


    0


    0.8

    V


    TX Fault

    Fault


    2.0


    Vcc

    V

    4

    Normal


    0


    0.8

    V

    4

    Timing and Electrical

    Parameter

    Symbol

    Min

    Typical

    Max

    Unit

    Bit Rate

    BR

    3

    Mbps

    Tx Disable Negate Time

    t_on

    1

    ms

    Tx Disable Assert Time

    t_off

    10

    µs

    Time To Initialize, including Reset of Tx Fault

    t_init

    300

    ms

    Tx Fault Assert Time

    t_fault

    100

    µs

    Tx Disable To Reset

    t_reset

    10

    µs

    Serial ID Clock Rate

    f_serial_clock

    400

    KHz

    MOD_DEF (0:2)-High

    VH

    2

    Vcc

    V

    MOD_DEF (0:2)-Low

    VL

    0.8

    V

    Diagnostics Specification

    Parameter

    Range

    Unit

    Accuracy

    Calibration

    Temperature

    -40 to +85

    °C

    ±2°C

    Internal / External

    Voltage

    3.0 to 3.6

    V

    ±3%

    Internal / External

    Bias Current

    0 to 100

    mA

    ±10%

    Internal / External

    TX Power

    2 to 5

    dBm

    ±2dB

    Internal / External
