12G SDI SFP Optical Transceiver Receiver

Home Fiber Optic Optical Transceiver Module 12G 6G 3G HD SDI Optical Transceiver 12G SDI SFP Optical Transceiver Receiver

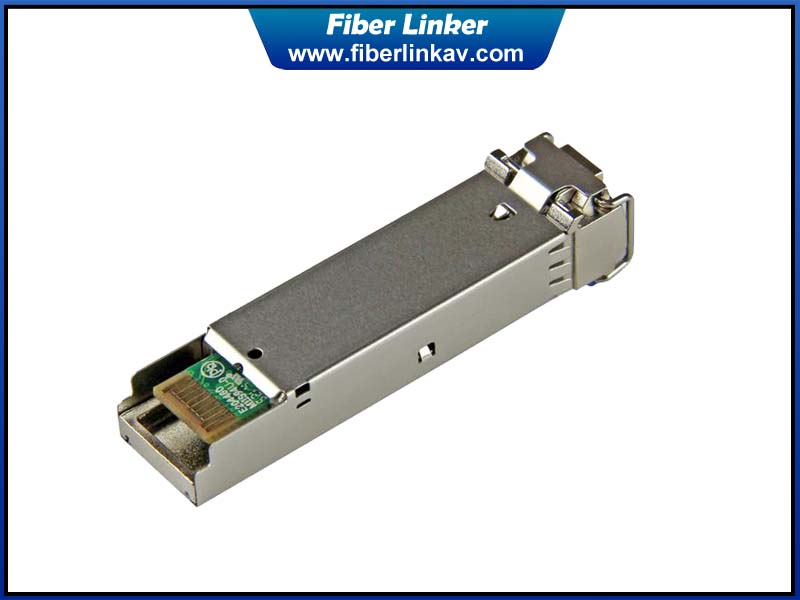

12G SDI SFP Optical Transceiver Receiver

  • Product Item:SFP-12G-LR
  • Category:12G 6G 3G HD SDI Optical Transceiver
  • Inquiry Send Email

    Description

    Description

    This is a single mode optical transceiver module designed to receive optical serial digital signals as defined in SMPTE 2082, SMPTE 424M, SMPTE 292M, SMPTE 259M, and DVB-ASI. It supports up to 12Gbps and is specifically designed to transmit the pathological patterns for HD-SDI, 3G-SDI,6G-SDI, and 12G-SDI. It is with the SFP+ 20-pin connector to allow hot plug capability. Digital diagnostic functions are available via an I2C. The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC. A maximum distance of 10 km is achievable with 12Gbps SDI signals. It is widely used in 12G-SDI video fiber optic transmission system and 4K video transmission projects.

    Features

    SMPTE 2082, SMPTE 424M, SMPTE 292M, SMPTE259M, and DVB-ASI Compatible
    Hot-Pluggable SFP Footprint LC Optical Receiver
    Speed up to 12 Gb/s
    Distance up to 10 km for 12G-SDI
    Reclocker built-in Support Video Pathological Patterns for HD-SDI, 3G-SDI, 6G-SDI, and 12G-SDI
    Single Receiver with Simplex LC
    Based on Industry Standard SFP +
    SFF-8472 Digital Diagnostic Function
    Single +3.3 V Power Supply
    RoHS 6/6 Compliant, Class 1 Laser International Safety Standard IEC-60825 Compliant

    Optical Specification

    Parameter

    Symbol

    Min.

    Typical

    Max.

    Unit

    Note

    Transmitter Section:

    Center Wavelength

    λt

    1260

    1310

    1355

    nm



    Side Mode Suppression Ratio

    SMRS

    30

    -

    -

    dB



    Average Optical Power

    Pavg

    -5.0

    -3.5

    +1

    dBm



    Optical Power OMA

    Poma

    -5.0

    -

    -

    dBm



    Laser Off Power

    Poff

    -

    -

    -30

    dBm



    Extinction Ratio

    ER

    3.5

    -

    -

    dB



    Transmitter Dispersion Penalty

    TDP

    -

    -

    3.2

    dB





    Relative Intensity Noise



    Rin



    -



    -



    -128



    dB/Hz

    12dB refle ction

    Optical Return Loss Tolerance



    -

    -

    15

    dB


    Receiver Section:



    Center Wavelength

    λr

    1260

    1310

    1355

    nm



    Receiver Sensitivity in Average Power

    Sen





    -14

    dBm

    1

    Receiver Sensitivity (OMA)

    Sen-oma

    -

    -

    -12.6

    dBm

    2

    Stressed Sensitivity (OMA)



    -

    -

    -10.3

    dBm

    2

    Vertical eye closure penalty



    2.2

    -

    -

    dB

    3

    Los Assert

    LosA

    -30

    -

    -

    dBm



    Los Dessert

    LosD

    -

    -

    -16

    dBm



    Los Hysteresis

    LosH

    0.5

    -

    -

    dB



    Overload

    Pin

    -

    -

    0.5

    dBm

    1

    Receiver Reflectance



    -

    -

    -12

    dB



    Stressed eye jitter



    0.3

    -

    -

    UIp-p

    2

    Receive  electrical  3dB  upper  cutoff frequency





    -



    -



    12.3



    GHz



    Receiver power (damage)



    -

    -

    1.5

    dBm

    Notes:

    1. Average optical power shall be measured using the methods specified in TIA/EIA-455-95

    2.Receiver sensitivity is informative. Stressed receiver sensitivity shall be measured with conformance test signal for BER =1x10-12

    3.Vertical eye closure penalty and stressed eye jitter are the test conditions for measuring stressed receiver sensitivity. They are not the required characteristic of the receiver

    4. Power budget is defined as the different between the Rx sensitivity and the Tx output power of the interface.

    5. Path penalty is intended as the power penalty of the interface between back-to

    back and the maximum applied dispersion

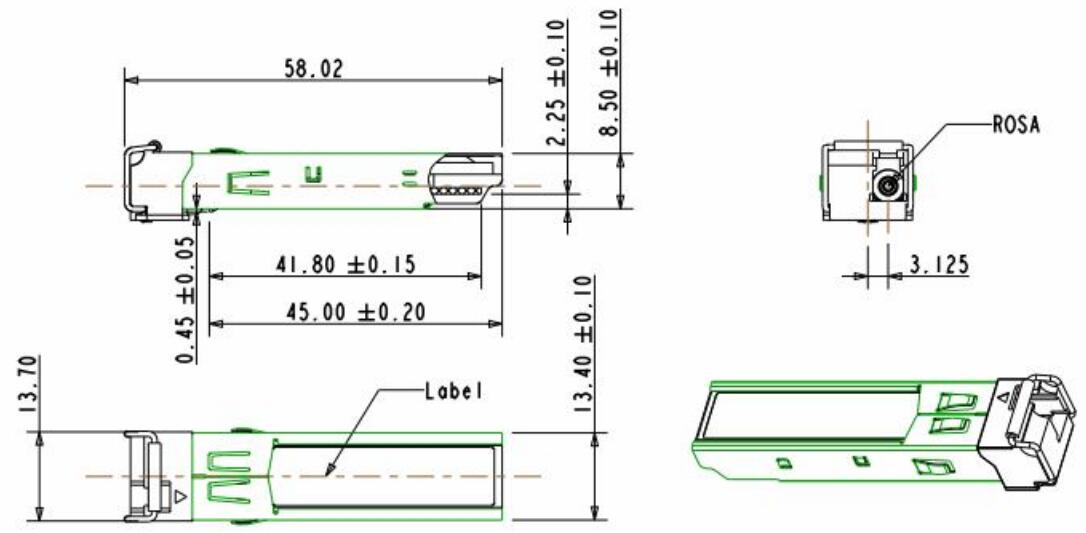

    Mechanical Dimensions
