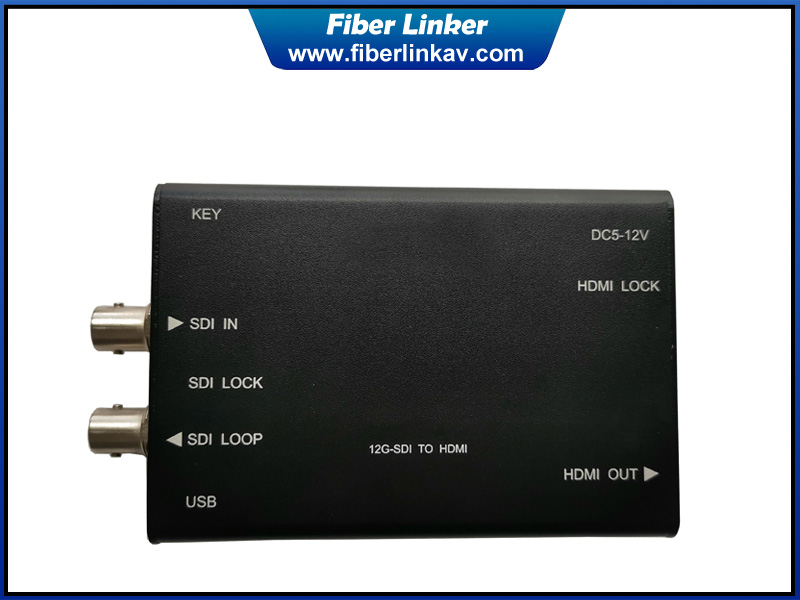

Broadcast Quality 4K 12G-SDI to HDMI converter

Home AV/IT Video Converter Broadcast Quality 4K 12G-SDI to HDMI con

Broadcast Quality 4K 12G-SDI to HDMI converter

  • Product Item:FL-SH4K
  • 4K@60Hz resolution
  • 12G-SDI input
  • HDMI2.0 output
  • 12G-SDI to HDMI converter
  • Category:Video Converter
  • Inquiry Send Email

    Description

    Description


    12G-SDI to HDMI converter is 4K level video signal converter based on SMPTE2082 12G-SDI broadcast digital signal and full 4K@60Hz HDMI2.0 signal. Built-In SDI Signal Equalizer.The Highest Resolution Is Up To 3840*2160/60Hz.The picture is Clearer and the visual effect is stronger. Auto-detection of the source type(12G,6G,3G,HD,SD) with firmware upgradation by MINI-USb port

    The device uses pure hardware architecture with fast startup, low power consumption and no delay output. It can be widely used in professional broadcast television equipment, medical equipment, high-definition conference systems, high-definition teaching equipment, signal transmission, security monitoring and multimedia advertising applications. For signals that comply with the SMPTE standard, the device automatically detects the output and the input signal remains at one point without additional settings

    Features

    1. 12G-SDI input, Compatible with 6G-SDI, 3G-SDI, HD-SDI, SD-SDI
    2. HDMI2.0 version output, compatible with lower
    3. Max resolution up to 3840X2160@60Hz
    4. Support SDI local loop out
    5. Bandwidth range from 270Mb/s to11.88Gb/s
    6. Automatically detect SDI input signal version
    7. Built-in SDI signal equalization, clock recovery
    8. 5V-12V DC power supply
    9. Support LED indicator status
    Specifications

    Mode

    12G-SDI to HDMI2.0

    Size

    Shell: 10.3x7.1cm

    PCB: 10x6.7cm

    Input

    12G-SDI

    SDI Impedance

    75Ω BNC

    Bandwidth

    11.88Gbps

    SDI Format

    12G-SDI, 6G-SDI, 3G-SDI,HD-SDI,SD-SDI

    Output

    HDMIX1, SDIX1

    HDMI Impedance

    100Ω

    Resolution

    12G-SDI formats:4k@50/59.94/60fps

    6G-SDI formats:4k@ 23.98/24/25/29.97/30fps

    3G-SDI formats:1080p@50/59.94/60fps

    HD-SDI formats:1080p@23.98/24/25/29.97/30fps

    1080i@50/59.94/60fps. 720p@50/59.94/60fps

    SD-SDI formats: 625i(PAL)@25fps , 525(NTSC)i@30fps

    Audio

    Up to 8 channels, 24-bit, 48kHz

    Bit Depth

    10/12bit

    Color Space

    4:2:2 YCbCr

    4:2:0 YCbCr

    4:4:4 YCbCr

    4:4:4 RGB

    Signal amplitude

    800mV±10%

    Repeater Function

    Yes

    Plug and Play

    Yes

    Power Supply

    5V to 12V DC

    Power

    <5.5W

    Working Tem

    0℃~50℃ no condensation

    Storage Tem

    -20℃~50℃

    Work Humidity

    20%~70%RH

    Storage Humidity

    0%~90%RH no condensation

    Application


    Remote OB Van/Truck Video Feeds, Broadcast Studio Camera Feeds, TV station/video conference, broadcast live transmission, Medical/Surgical Room Broadcast, Building to Building video conference, video wall controller, commend center.

    Diagram
