Description
Description

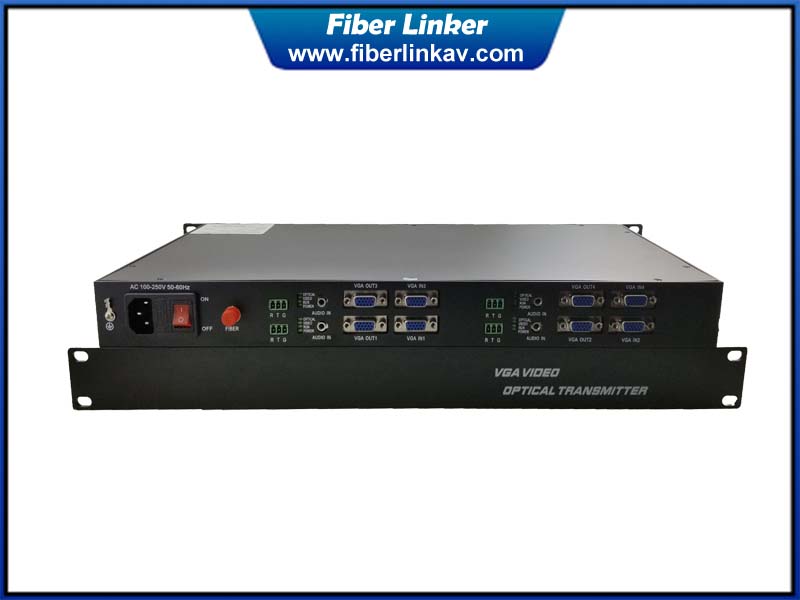

This 4 channels VGA Fiber Converter consists of the transmitter and the receiver which could transmit 4 VGA video signals over single core fiber optic cable. It uses CWDM uncompressed technology solution and has CWDM MUX and Demux inside the rack mount. It could extend video upto 80KM over optical cable. The standard distance is 20KM. It is also optional RS232 data, USB for keyboard and mouse function.
Features
1.All-digital, CWDM uncompressed, high-definition optical transmission
2.Compliance with the VGA standard protocol
3.Support Independent analog audio
4.Support local loop in transmitter end
5.Optional RS232 and USB for Keyboard and Mouse
6.Automatic identification and configure various display modes
7.The highest resolution to 1080P @ 60Hz, and compatible with lower resolution
8.Single / multi-mode fiber transmission, SFP module
9.Built-in ESD protection circuitry, can effectively prevent electrostatic damage
10.Site installation: easy, plug and play, no need to set
Specification
|
Transmitter |
4 VGA in and 4 VGA out |
|
Receiver |
4 VGA out |
|
Support Video Format |
1920*1080/60Hz,1280*1024/60Hz， 1280*768/60Hz，1280*720/60Hz, 1024*768/60Hz,800*600/60Hz, |
|
Bandwidth |
3Gbps |
|
Transmission distance |
The default is 20KM for single mode, 300meter for multimode， optional max is 80KM |
|
Input and output audio interface |
3.5MM Audio |
|
Support input and output audio formats |
44.1K,48K,96K,176K,192K |
|
Serial port baud rate(one-way) |
115200 and following adaptively |
|
Fiber Port |
FC |
|
Wavelength |
CWDM |
|
Input Power |
90 to 240VAC |
|
Power Consumption |
VGA Transmitter 4W VGA Receiver 4W |
|
Dimensions |
1U rack mount |
|
Operating Temperature Range |
-30 to +70°C |
|
Operating humidity range |
5 to 90 % RH (no condensation) |
|
Package |
Carton 2 with TX and RX |
|
Weight |
8kg for transmitter and receiver |
Diagram
