2-way VGA Fiber Converter over single optic cable

Home Fiber Optic VGA Fiber Converter 2-way VGA Fiber Converter over single op

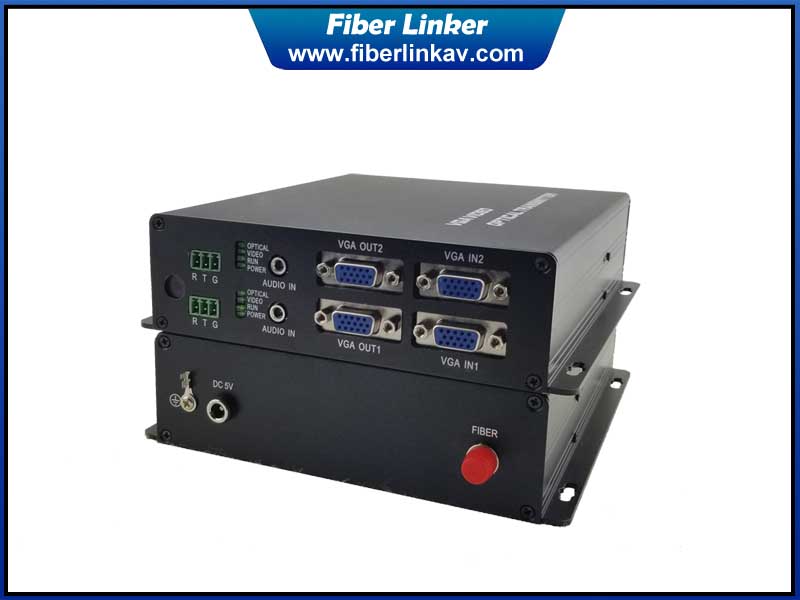

2-way VGA Fiber Converter over single optic cable

  • Product Item:FL302
  • Uncompressed VGA Fiber Optic Extender
  • 2-ch VGA over Single Core
  • Portable Housing
  • OEM 1 to 16 channels over CWDM
  • Category:VGA Fiber Converter
  • Inquiry Send Email

    Description

    Description

    This VGA fiber converter could extend 2 channels of VGA computer signal to a long distance over single core fiber optic cable. It adopts uncompressed CWDM technology with 3Gb bandwidth for each VGA path. There is no delay in VGA video transmission and no ghost in video picture. Using single core fiber cable saves the fiber sources in projects and small housing for 2-ch VGA also spare more space for user.

    Features

    1. All-digital, uncompressed, high-definition optical transmission, 2-ch VGA over fiber

    2. Compliance with the VGA standard protocol, single core optic cable. FC or ST

    3. Support Independent analog audio

    4. Support local loop in transmitter end

    5. Optional RS232 and USB for Keyboard and Mouse

    6. Automatic identification and configure various display modes

    7. The highest resolution to 1080P @ 60Hz, and compatible with lower resolution

    8. Single / multi-mode fiber transmission, SFP module

    9. Built-in ESD protection circuitry, can effectively prevent electrostatic damage

    10. Site installation: easy, plug and play, no need to set

    Specification


    Transmitter

    2 VGA in and 2 VGA out

    Receiver

    1VGA out

    Support Video Format

    1920*1080/60Hz,1280*1024/60Hz,

    1280*768/60Hz,1280*720/60Hz,

    1024*768/60Hz,800*600/60Hz,

    Bandwidth

    3Gbps

    Transmission distance

    The default is 20KM for single mode, 300meter for multimode, optional max is 80KM

    Input and output audio interface

    3.5MM Audio

    Support input and output audio formats

    44.1K,48K,96K,176K,192K

    Serial port baud rate(one-way)

    115200 and following adaptively

    Fiber Port

    LC/SFP

    Wavelength

    1310nm/1550nm

    Input Power

    DC5V

    Power Consumption

    VGA Transmitter   4W

    VGA Receiver      4W

    Dimensions

    Long*Wide*High(mm)167X113X56

    Operating Temperature Range

    -30 to +70°C

    Operating humidity range

    5 to 90 % RH (no condensation)

    Weight

    3kg for transmitter and receiver

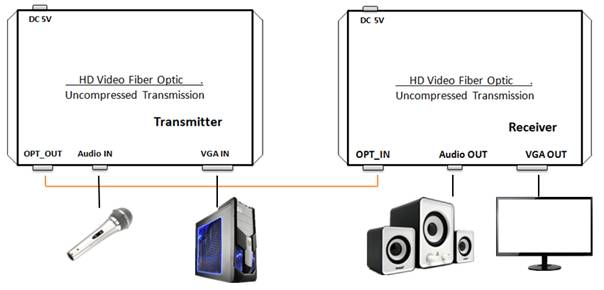

    Transmission Diagram
