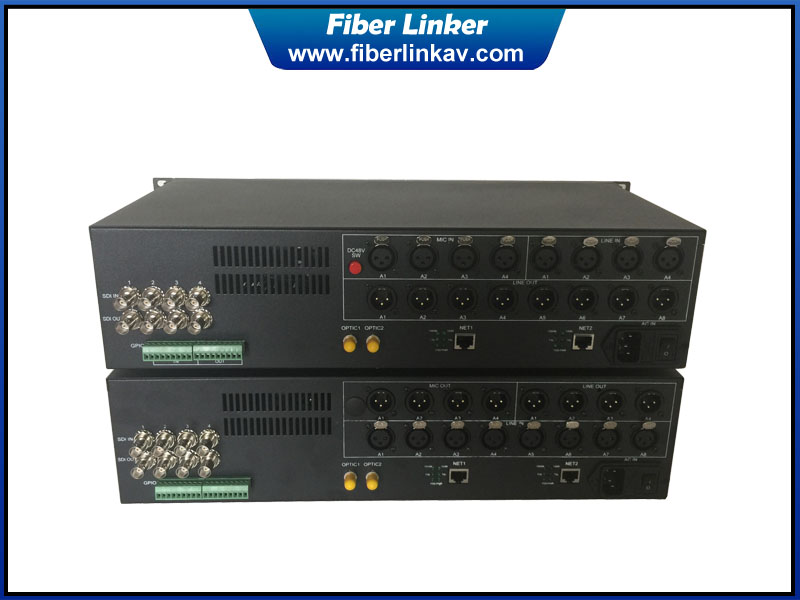

Two-way 3G-SDI Fiber Optic Extender with Phantom, Line, Data, Ethernet

Home Telecast AV Broadcast SDI Fiber Optic Extender 3G-SDI Fiber Optic Extender Two-way 3G-SDI Fiber Optic Extender with

Two-way 3G-SDI Fiber Optic Extender with Phantom, Line, Data, Ethernet

  • Product Item:FLS44PAM
  • Broadcast Quality Level
  • Compatible with DVB-ASI
  • Support Phantom Mic
  • Support Balance audio, Tally, Gigabit Ethernet
  • Category:3G-SDI Fiber Optic Extender
  • Inquiry Send Email Manual Download

    Description

    Description

    Two-way 3G-SDI Fiber Optic Extender with Phantom, Line, Data, Ethernet supports  4-ch bidirectional 3G-SDI digital video signal, 4-ch forward phantom mic audio , 4-ch forward balance XLR audio, 12-ch reverse balance XLR audio,2-ch duplex contact closure and 2-ch gigabit Ethernet over dual core optical cable.  It is compatible with HD-SDI, SD-SDI, ASI, TS stream. We could OEM SDI fiber box according to your special request

    Features

    1. Multiple functional SDI fiber box for obvan

    2. Compatible with HD-SDI, SD-SDI, DVB-AST

    3. Bandwidth range from 19.4Mb/s to 2.97Gb/s

    4. SMPTE 424M (2.97Gb/s) clock recovery

    5. support all popular standards for digital video transport such as SMPTE 424M, SMPTE 292M, and SMPTE 259M, SMPTE      297M working at 3G-SDI, HD-SDI, SD-SDI, ASI respectively

    6. Built-in CWDM system, SFP modules for each path

    7. Support automatic cable equalization based on the data rate detected

    8. LED status indicators monitor the critical parameters

    9. We could make it as your requested specifications

    Specification

    SDI Input

    Number

    4 input on TX and 4 input on RX

    TV signal standard

    SMPTE 424M,292M,259M,297M,305M,310M, M2S, DVB-ASI, DVB-SSI and other Telecom/Datacom rate(19.4Mb/s – 2.97Gb/s)

    Reflection loss

    >15DB

    Equilibrium

    0-100m @ 2.97Gb/s

    Connector

    75Ω BNC

    SDI Output

    Number

    4 input on TX and 4 input on RX

    Signal level

    800mV nominal

    Rise/fall time

    200Ps nominal

    Overshoot

    <10% amplitude

    Reflection loss

    > 15dB

    Jitter

    < 0.2UI

    Connector

    75Ω BNC

    Others

    2-ch duplex 10/100/1000Mpbs RJ45 , 4-ch MIC,  16 Line audio in two way, 2-ch bidirectional contact closure.

    Fiber Optic

    Channel

    2

    Type/Distance

    Single-mode/20KM standard, optional max 80KM

    Wavelength

    CWDM

    Connector

    FC/PC(ST/PC optional)

    Output Power

    About +5dB to +8dB

    Receiver sensitivity

    -8dB for 20KM,optional max is -24dB

    Power and Environmental

    Operating temperature

    -40℃~+45℃

    Power Supply

    90VAC to 245VAC

    Power Consumption

    12W

    EMI/RFI

    FCC Part 15 Class A, EU EMC standard

    MTBF

    >100000 hours

    Other

    Rack mount

    3U

    Weight

    8Kg (TX+RX)

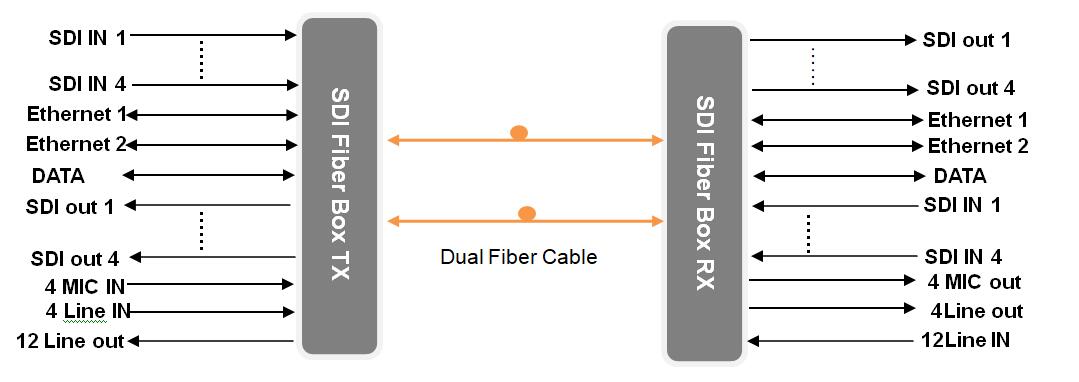

    Diagram
