Tactical ODVA Optical Fiber Cable and Assemblies

Home Fiber Optic HDTV & Military Tactical Fiber Series Tactical ODVA Optical Fiber Cable & Assemblies Tactical ODVA Optical Fiber Cable and As

Tactical ODVA Optical Fiber Cable and Assemblies

  • Product Item:ODVA
  • ODVA fiber cable
  • ODVA adapter
  • Tactical fiber cable
  • ODVA FTTA assemblies
  • Category:Tactical ODVA Optical Fiber Cable & Assemblies
  • Inquiry Send Email Manual Download

    Description

    Descriptioin

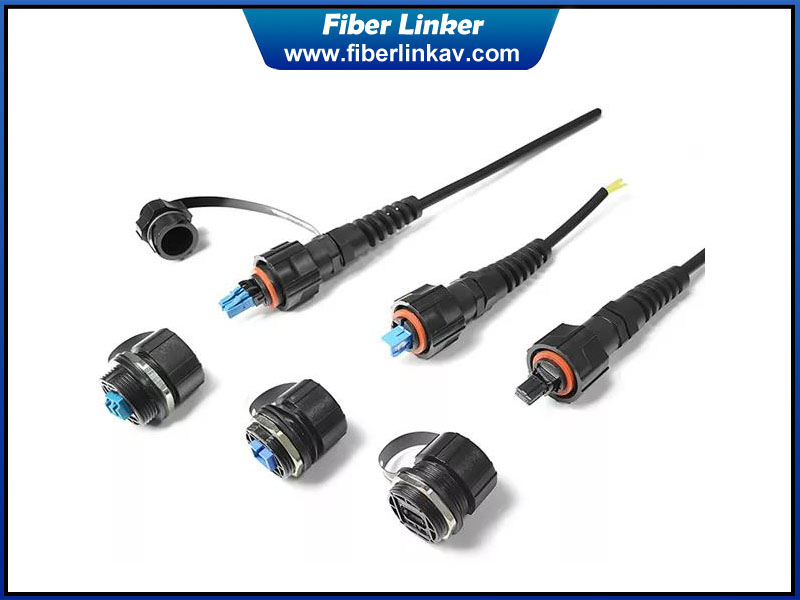

    The ODVA SC/LC/MPO/MTP tactical fiber cable and adapter could support IP67 water proof and IP67 environmental sealing ratings. This type of fiber cable is the ideal choice for a low cost and easy to use industrial solution like fiber to the Antenna (FTTA), or any other harsh environmental applications. The dust cap is well enough to protect ruggedized patch cords from exposure of elements or accidental damage . ODVA harsh environment cable assemblies are widely used for fixed or mobile applications and reliably transfer data to a long distance

    Features

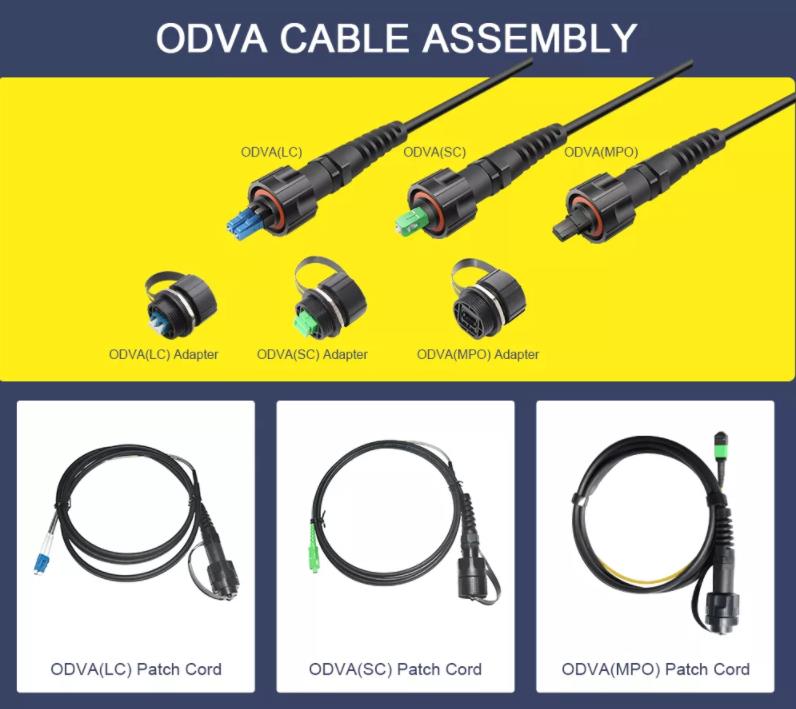

    1.We supply ODVA fiber cable with LC/SC/MPO, ODVA adapter, ODVA jumper, ODVA terminal box
    2.Support IP67 Waterproof for harsh industrial or outdoor environment
    3.Support salt-mist proof, and EMI protection
    4.Quick-release quarter-turn bayonet locking to panel mount connector.
    5.Thread the locking mechanism can ensure long-term reliable connection
    6.High current carrying capability. Cable to cable and cable to receptacle connection.
    7.Protective cap with tether available.

    Applications

    ● Outdoor harsh environment fiber optic communications use
    ● Outdoor communication device is connected
    ● Military communication devices
    ● Oil, mining communication connection
    ● The wireless Remote base station
    ● Video surveillance systems
    ● Fiber sensing
    ● Railway signal control using
    ● Intelligent substation station communication

    Specifications

    Insertion Loss

    ≤1.00dB(Typical≤1.50dB)(SM)

    ≤1.00dB(Typical≤0.20dB)(MM)

    Return Loss

    SM

    ≥50dB

    Mechanical

    Plug

    ≤500N(main cable)



    Socket

    ≤30N(branch cable)

    Fiber

    SM/MM

    1C, 2C, 8C, 12C or 24C

    Cable OD

    4.0mm/5.0mm/7.0mm

    Outer Sheath

    TPU or LSZH

    Anti-push Unit

    KEVLAR

    Fiber Type

    9/125,  50/125,  62.5/125

    Fiber Outer

    9/125/250um fiber

    Tensile Strength

    Short term: 600N, Long term: 200N

    Operature Temp

    -45℃ to 85℃

    IP Rate

    IP67
