Seamless UHD 4K@60Hz HDMI DP Video Switcher With Multiview Function

Home AV/IT HDMI Matrix Switcher Seamless UHD 4K@60Hz HDMI DP Video Switc

Seamless UHD 4K@60Hz HDMI DP Video Switcher With Multiview Function

  • Product Item:FL0502PS
  • Full 4K HDMI2.0
  • Seamless Switch
  • Support HDbaseT output
  • Support Multiviewer function
  • Category:HDMI Matrix Switcher
  • Inquiry Send Email Manual Download

    Description

    Description

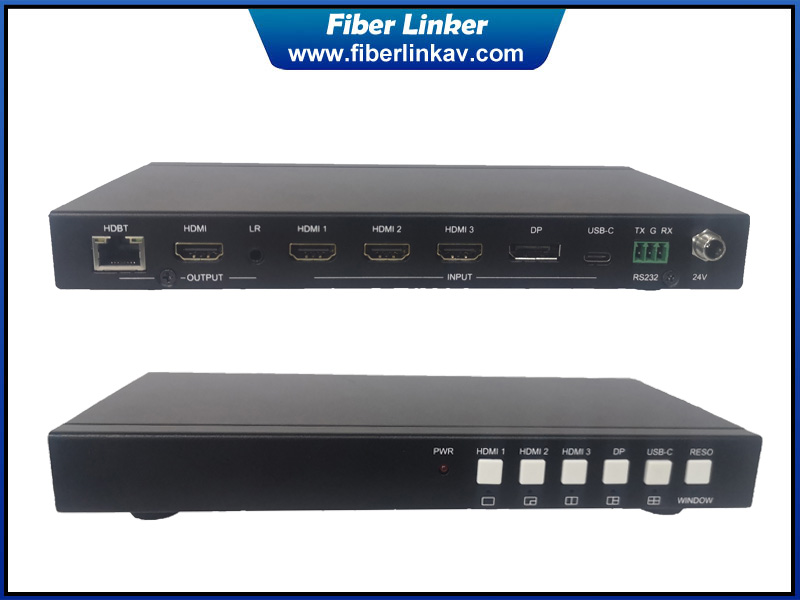

    Seamless UHD 4K@60Hz HDMI DP Video Switcher With Multiview Function is a HDMI 2.0 and DP 1.2 Seamless Video Switcher with Multiview function. It supports 3x HDMI, 1x DP and 1x USB-C (video only) inputs, one HDMI and one HDBaseT video mirror output. One 3.5mm audio jacket can output analogue stereo audio. User can use Front Buttons or RS232 commands to control the switcher. This video switcher is the nice choice for small smart video conference room and projector link.

    Features

    Seamless Switching on single display window mode

    Support 5 Multiview display modes

    Support HDMI 2.0,DP 1.2 input

    Scaling output with multiple resolution options, up to 3840x2160@60

    Extensive EDID and HDCP control

    HDBaseT transmission length up to 70m @1080p, or 40m @4K

    Support PCM and bitstream audio format up to 5.1 channel

    Audio extraction, 3.5mm L/R output

    Provide 24V/10watt PSE ( POC ) for HDBaseT receiver

    Support firmware upgrade with U disk by side of the swither

    Multiview Function

    The Switcher support 5 Multiview display modes: SINGLE, PIP, PBP, 3xWIN, 4Xwin

    Users can select different operations for different Multiview modes as following:

    SINGLE and 4xWIN: Inputs selection

    PBP and 3xWIN: Inputs selection, Display Ratio selection

    PIP: Inputs selection, Display Ratio selection, Sub window size and position selection
