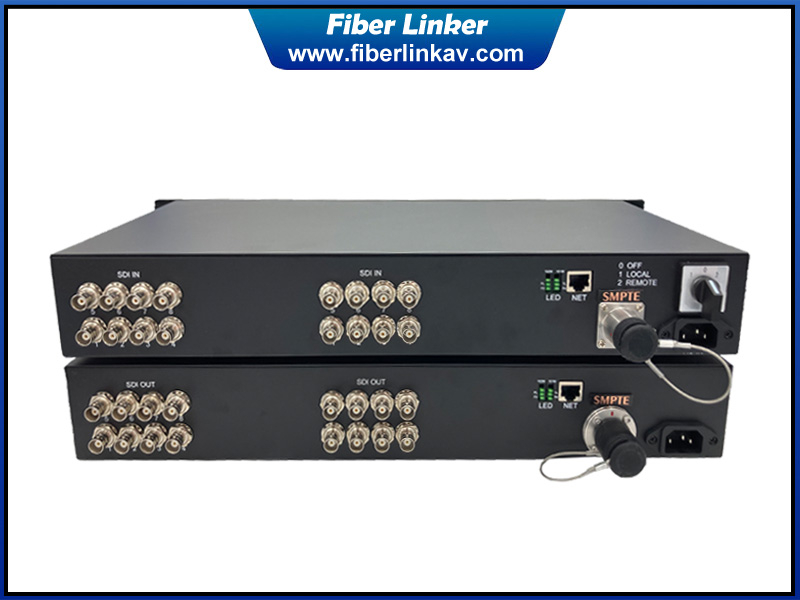

Remote Power SMPTE LEMO 3G-SDI Fiber Extender with Gigabit Ethernet Network

Home Telecast AV Broadcast SDI Fiber Optic Extender 3G-SDI Fiber Optic Extender Remote Power SMPTE LEMO 3G-SDI Fiber Ext

Remote Power SMPTE LEMO 3G-SDI Fiber Extender with Gigabit Ethernet Network

  • Product Item:FLS160PS
  • Broadcast Quality Level
  • Compatible with DVB-ASI
  • Uncompressed CWDM Solution
  • SMPTE311M/304M LEMO Connector for fiber and remote power
  • Category:3G-SDI Fiber Optic Extender
  • Inquiry Send Email Manual Download

    Description

    Description

    This 3G-SDI fiber optic extender has LEMO compatible 3K.93C SMPTE311M/SMPTE304M connector. It could use FUW-PUW assembly HDTV hybrid fiber cable to transmit 16 channels of SDI camera signal and Ethernet network to remote area like OB VA. This SMPTE fiber converter could be up to 2KM over SMPTE cable and 20KM over PUW/PUW to LC/SC/ST/FC pure fiber optic cable. Our

    Our SDI optical network gears have been widely used in our domestic and overseas for broadcast TV transmission system. We could do SDI extender over fiber by CWDM, DWDM and TDM uncompressed solution with data, external audio Ethernet, tally and other functions. The fiber connectors could be ST, FC, SC, LC, SMPTE, LEMO type. We welcome any OEM request for SDI over fiber series.

    Features

    1. 8-ch bidirectional 3G-SDI/ASI video with embedded audio and   1000M/100M Ethernet

    2. Compatible with HD-SDI, SD-SDI, DVB-AST, could OEM 12G-SDI or 6G-SDI

    3. Bandwidth range from 19.4Mb/s to 2.97Gb/s

    4. SMPTE 424M (2.97Gb/s) clock recovery

    5. support all popular standards for digital video transport such as SMPTE 424M, SMPTE 292M, and SMPTE 259M, SMPTE      297M working at 3G-SDI, HD-SDI, SD-SDI, ASI respectively

    6. Built-in CWDM system, SFP modules for each path, SMPTE311/304M 3K.93C connector for fiber optic

    7. Support automatic cable equalization based on the data rate detected

    8. Support remote power supply from receiver to transmitter. Receiver has self-detect for protection

    9. We could make it as your requested specifications

    Specification

    SDI Input

    Number

    8 input on TX and 8 input on RX

    TV signal standard

    SMPTE 424M,292M,259M,297M,305M,310M, M2S, DVB-ASI, DVB-SSI and other Telecom/Datacom rate(19.4Mb/s – 2.97Gb/s)

    Reflection loss

    >15DB

    Equilibrium

    0-100m @ 2.97Gb/s

    Connector

    75Ω BNC

    SDI Output

    Number

    16 output on RX

    Signal level

    800mV nominal

    Rise/fall time

    200Ps nominal

    Overshoot

    <10% amplitude

    Reflection loss

    > 15dB

    Jitter

    < 0.2UI

    Connector

    75Ω BNC

    Ethernet

    1-ch duplex 10/100/1000Mpbs RJ45

    Fiber Optic

    Channel

    dual

    Type/Distance

    Single-mode/20KM for pure fiber optic able, 2KM over SMPTE cable

    Wavelength

    CWDM 18 wavelength

    Connector

    SMPTE311/304M LEMO connector

    Output Power

    About +5dB to +8dB

    Receiver sensitivity

    -8dB for 20KM,optional max is -24dB

    Power and Environmental

    Operating temperature

    -40℃~+45℃

    Power Supply

    90VAC to 245VAC, TX box could be powered by remote RX box over SMPTE cable

    Power Consumption

    12W

    EMI/RFI

    FCC Part 15 Class A, EU EMC standard

    MTBF

    >100000 hours

    Other

    Rack mount

    1.5U

    Weight

    8Kg (TX+RX)

    Diagram
