Mini Rattler 3G-SDI Fiber Extender Kit with USB power supply

Home Telecast AV Broadcast SDI Fiber Optic Extender 3G-SDI Fiber Optic Extender Mini Rattler 3G-SDI Fiber Extender Kit w

Mini Rattler 3G-SDI Fiber Extender Kit with USB power supply

  • Product Item:FLS10R2
  • Broadcast Quality Level
  • Compatible with DVB-ASI
  • Uncompressed CWDM Solution
  • Overseas Large Integrator Application
  • Category:3G-SDI Fiber Optic Extender
  • Inquiry Send Email Manual Download

    Description

    Description

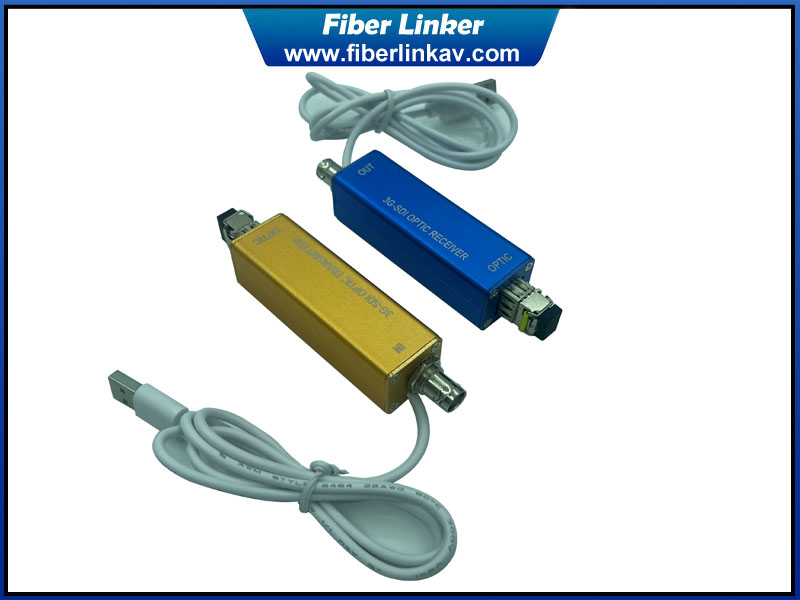

    This is Mini Rattler 3G-SDI Fiber Extender Kit with USB power supply to extender 3G-SDI or HD-SDI/ASI signal to a long distance over signle core fiber optic cable. It includes SDI SFP optical transceiver module which could make you more easily to change the SFP module to CWDM wavelength or DWDM wavelength for your MUX system. Beijing Fiber Linker could OEM most configurations of SDI fiber optic extender like 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI. We also could add additional functions of external analog or digital AES audio, MADI audio, tally, data, genlock function, Ethernet IP with/without POE. Our kits are widely used in broadcast camera link transmission system, Obvan truck, TV station.

    Features

    1. Support SMPTE-425M(3G-SDI), SMPTE-292M(HD-SDI) and SMTPE-259M(SD-SDI)

    2. Compact small size, easy to install

    3. Data rate from 19.4Mbps up to 2.97Gb/s

    4. SMPTE425M (2.97Gb/s) clock recovery

    5. support all popular standards for digital video transport such as SMPTE 425M, SMPTE 292M, and SMPTE 259M, SMPTE 297M working at 3G-SDI, HD-SDI, SD-SDI, ASI respectively

    6. +5V USB power supply, or 5.5mm DC jack with pigtail

    7. Support automatic cable equalization based on the data rate detected

    8. LED status indicators monitor the critical parameters

    9. Optional CWDM/DWDM wavelength

    Specification

    SDI Input

    Number

    1

    TV signal standard

    SMPTE425M, 292M,259M,297M,305M,310M, M2S, DVB-ASI, DVB-SSI and other Telecom/Datacom rate (19.4Mb/s – 2.97Gb/s)

    Reflection loss

    >15DB

    Equilibrium

    0-100m @ 2.97Gb/s

    Connector

    75Ω BNC male

    SDI Output

    Number

    1

    Signal level

    800mV nominal

    Rise/fall time

    200Ps nominal

    Overshoot

    <10% amplitude

    Reflection loss

    > 15dB

    Jitter

    < 0.2UI

    Connector

    75Ω BNC  male

    Fiber Optic

    Channel

    1

    Type/Distance

    Single-mode/20KM standard, optional max 80KM

    Wavelength

    1310nm standard, optional CWDM 16 wavelength

    Connector

    LC/PC(ST/PC optional)

    Output Power

    About -6dB to +1dB

    Receiver sensitivity

    -8dB for 20KM,  optional max is -24dB

    Power and Environmental

    Operating temperature

    -40℃~+45℃

    Power Supply

    +5V

    Power Consumption

    3W

    EMI/RFI

    FCC Part 15 Class A, EU EMC standard

    MTBF

    >100000 hours

    Other

    Size

    80*25*25mm

    Weight

    1Kg (TX+RX)
