HDMI Matrix Switch over IP with video wall controller function

Home AV/IT VGA DVI HDMI Matrix AV over IP HDMI Matrix Switch over IP with video wa

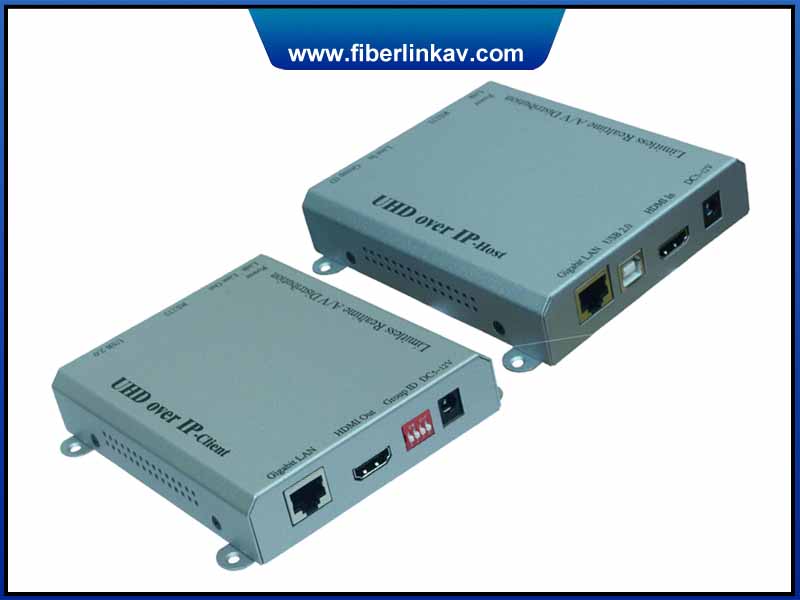

HDMI Matrix Switch over IP with video wall controller function

  • Product Item:FL4353, FL4350
  • AV over IP Matrix
  • Input node and Receiver node
  • work with Gigabit network switch
  • have video wall splicing function
  • Category:VGA DVI HDMI Matrix AV over IP
  • Inquiry Send Email

    Description

    Description

    HDMI Matrix AV over IP is based on video lossless compression technology and 1000M Ethernet technology,it solves the functions of video and audio transmission, network matrix, image splicing, and kvm; Allowing customers to get a brand-new experience that is stable and reliable, clear and sharp images, and easy to operate. It supports 1000M optical fiber / network port to choose either, support network matrix switching function; solve the tedious of traditional matrix wiring and supports image stitching function, decentralization, make system construction easier. The IP Matrix  also support KVM mouse and keyboard, three-screen linkage, sliding screen (Seat management function); Mouse and keyboard latency is less than 30 milliseconds. Fast speed experience; support mouse and keyboard, cross-screen roaming, sliding screen function; used for command center seat management system

    Features

    1. Limitless A/V Distribution including one‐to‐one, one‐to‐many, many‐to‐one and many‐to‐many matrix switch.

    2. Video Wall (up to 8x16)

    3. Video Scaler (like 4K in/1080P out, 1080P in/4K out)

    4. Video Rotation for 180/270 degree

    5. KM over IP (for KVM application)

    6. USB over IP (for all kinds of USB HID devices)

    7. Audio over IP (automatically switch off the HDMI audio)

    8.HDMI audio extraction to the line out on Client

    Specification


    Host

    Client

    Size

    12.3x10.3x2.5(h) cm, 400g

    12.3x10.3x2.5(h) cm, 400g

    Ethernet Port

    UTP/STP 1000Mbps (8K Jumbo Frame required)

    Protocol

    IP, UDP, TCP, ICMP, IGMP

    HDMI Port*

    19 pin type A female

    RS232 Port

    DB‐9 Male

    DC Jack (Power)

    ψ2.0/DC5V, 2A

    Audio Jack (LINE IN/OUT)

    3.5mm


    USB Port

    Type‐B USB2.0

    Type‐A USB2.0

    Power LED (Blue)

    ‐ Blinking: power on and the unit is booting up.


    ‐ On: power on and the unit is active


    Link LED (Yellow)

    ‐ Blinking: 1) the unit is connecting with Host or Client. 2) the HDMI


    source is removed.



    ‐ On: all the connections are working.


    LAN Bandwidth

    850Mbps max. for each source

    Max. Supported Timing

    2160p 30Hz @30fps

    Max Distance

    120M (UTP) between 2 devices (Host/Client/Ether Switch)

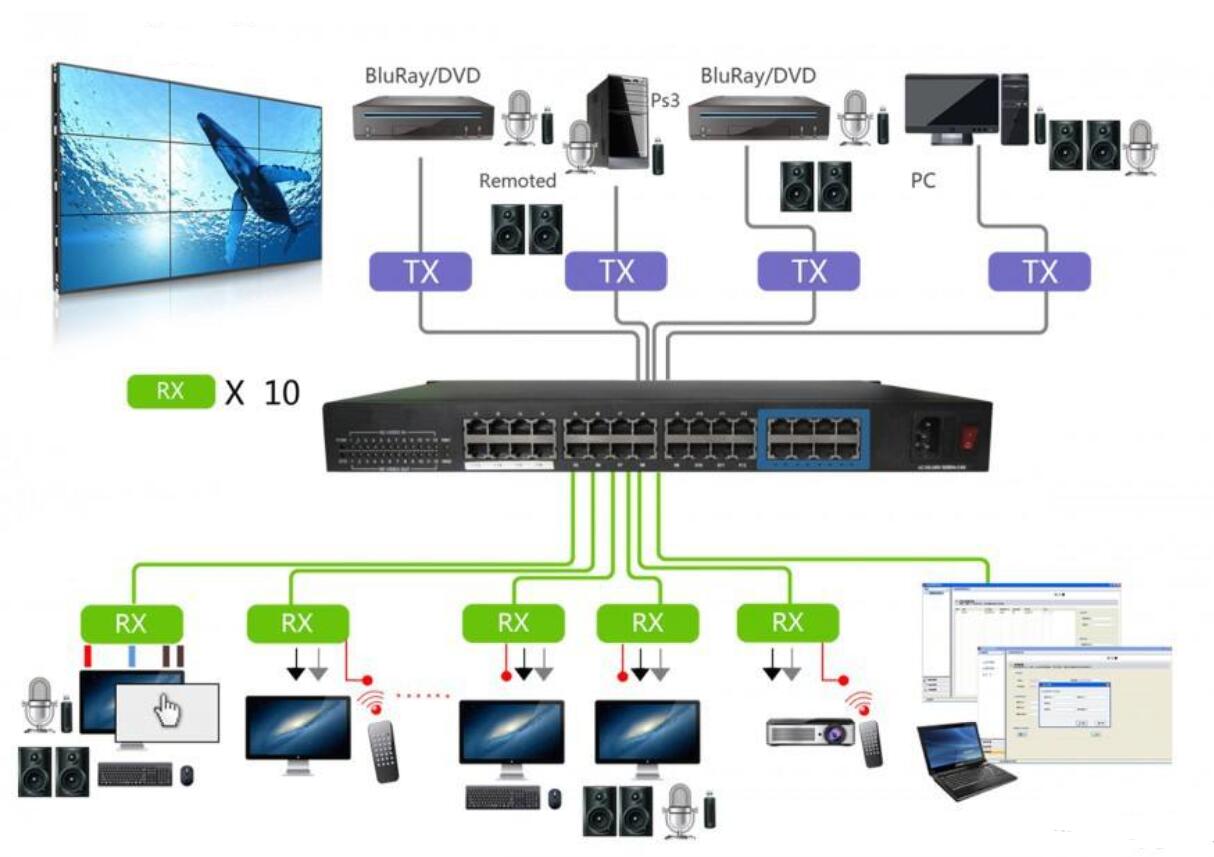

    Diagram
