100Meter HDMI2.0 Hybrid Fiber Optic Cable

Home Fiber Optic DVI USB DP HDMI Optical Fiber Cable HDMI Hybrid Fiber Optic Cable 100Meter HDMI2.0 Hybrid Fiber Optic Cabl

100Meter HDMI2.0 Hybrid Fiber Optic Cable

  • Product Item:FL100H
  • HDMI Hybrid Fiber Optic Cable
  • Up to 300meter
  • HDMI2.0 4K@60Hz
  • Hybrid Opitcal Cable
  • Category:HDMI Hybrid Fiber Optic Cable
  • Inquiry Send Email

    Description

    Description

    HDMI2.0 hybrid fiber optic cable (AOC) is high performance, low power consumption and low cost HDMI AOC cable.  Use optical fiber to replace copper wire as the high-speed signal transmission medium. It can perfectly transmit 4k@60HZ UHD HDMI2.0 image up to max 300meters. Compared with the traditional copper wire, AOC is much longer, softer, more slim, with better signal quality and perfect EMI/EMC feature. Compared with other HDMI optical fiber transmission solution, HDMI AOC is easy to use, has perfect compatibility, and no external power supply needed.
    Features

    1. Supports HDMI resolutions to 4K@60Hz@4:4:4
    2. Plug and Play, No need external power supply
    3. Compatible with HDMI 2.0 standard.
    4. Support HDCP2.2@ARC, support HDR 100meter
    5. Self-detecting function for EDID information
    6. 18Gbps bandwidth, No loss of signal
    7. Hybrid optical cable with fiber and copper wire
    8. PIN gold plated, shell gold plated
    9. Thinner, lighter and softer than conventional copper cable
    10. Operating temperature:-40℃ to 70℃
    11. Minimum bending radius 20mm
    12. Max tension force: 100N
    13. Max transmission length could be 300meter

    Specification

    Optional Cable Length

    20m / 30m / 40m / 50m / 70m / 100m/150m/200m/250/300m
    Or customize for ultra-long length

    Interface

    HDMI2.0 type A pluggable - HDMI type A pluggable

    Data Rate

    Support 4k UHD display

    Power

    No external power needed

    Power Consumption

    250mW

    Cable Diameter

    2.9mmx5.0mm

    Bend Radius

    20mm

    Crush

    200N

    Tensile Performance

    100N

    Operating Temperature

    -40 to 70°C

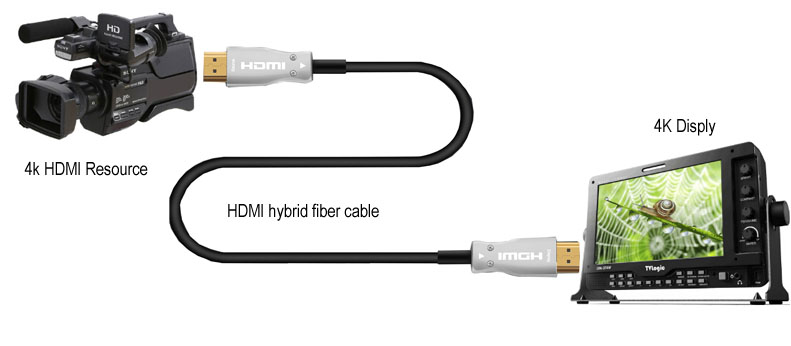

    Diagram
