Description
Description

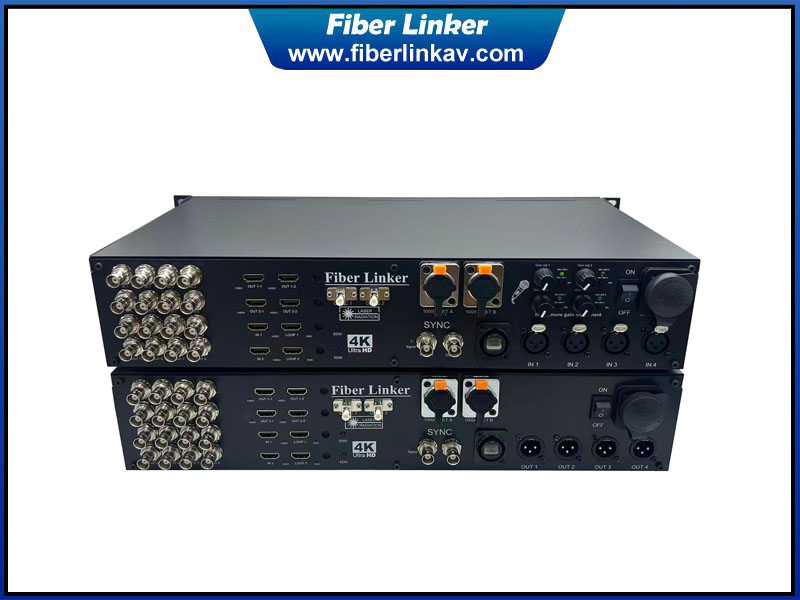

The model FLS88HAPG is 3G-SDI fiber extender or named as SDI to fiber converter. It has multiple functions with SDI video signal, HDMI video signal, Genlock signal, analog audio, and Ethernet over opticalCon quad fiber connector. Our SDI fiber optic extender has been widely used in our domestic and overseas for broadcast TV transmission system. We could do SDI extender over fiber by CWDM, DWDM and TDM uncompressed solution with data, SYNC, USB, external audio Ethernet, tally and other functions. The fiber connectors could be ST, FC, SC, LC, SMPTE, LEMO type. We welcome any OEM request for SDI over fiber series.
Features
1.8-ch forward 3G-SDI and 8-ch reverse 3G-SDI
2.2-ch forward and 2-ch reverse HDMI2.0 with loop
3.Support two separate Gigabit Ethernet
4.Support 4 analog line audio
5.Support 1-ch Genlock
6.SDI range from 19.4Mb/s to 2.97Gb/s
7.SMPTE 424M (2.97Gb/s) clock recovery
8.SMPTE 292M, 259M, 296M, 297M, 372M, 424M, 425M
9.Support automatic cable equalization based on the data rate detected
10.LED status indicators monitor the critical parameters
11.OpticalCon Quad fiber connenctor with reversed CWDM LC
12.Support OEM configuration according to real needs
13.2U rack mount
Specifications
SDI Input
Number
8 input on TX box, 8 output on RX box
TV signal standard
SMPTE ST 424, SMPTE ST 425, SMPTE ST 292, SMPTE ST 259, DVB-ASI
Reflection loss
>15DB
Equilibrium
0-100m @ 2.97Gb/s
Connector
75Ω BNC
SDI Output
Number
8 input on TX box, 8 output on RX box
Signal level
800mV nominal
Rise/fall time
200Ps nominal
Overshoot
<10% amplitude
Reflection loss
> 15dB
Jitter
< 0.2UI
Connector
75Ω BNC
HDMI
2-ch bidirectional with loop
HDMI2.0 version, support max 4k2k@60Hz 4:4:4
Genlock
1-ch unidirectional with loop
BNC, Tri-level and BB
Ethernet
RJ45 Connector
2-ch separate 1000M bandwidth
Audio
XLR connector
4-ch unidirectional analog balance audio
CWDM Reserved
2 LC fiber ports
CWDM wavelength
Fiber Optic
Connector
opticalCon Quad
Type/Distance
20KM
Wavelength
CWDM
Output Power
About +5 dB to +1dB
Fiber Loss
8 dB for 20KM
Power and Environmental
Operating temperature
-40℃～＋45℃
Power Supply
110 to 245VAC
Power Consumption
About 24W
EMI/RFI
FCC Part 15 Class A, EU EMC standard
MTBF
>100000 hours
Other
Size
2U rack mount
Weight
7Kg /pcs

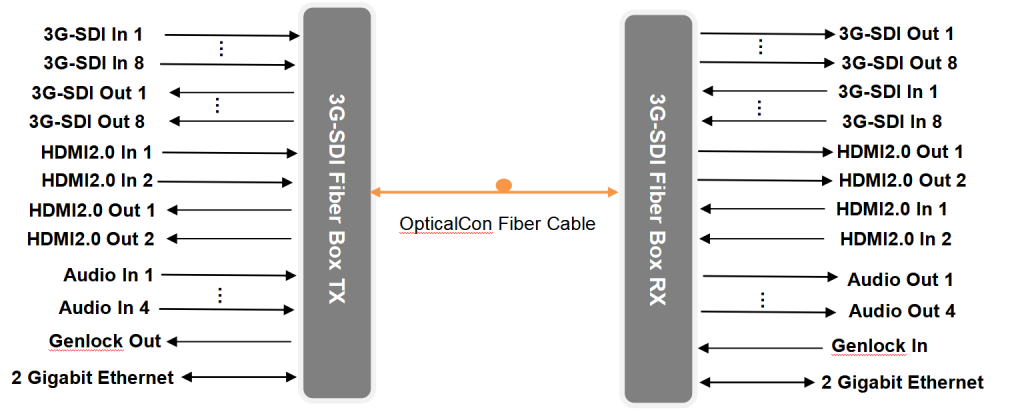

Diagram
