8-ch Bidirectional 3G-SDI Fiber Converter over SMPTE FUW-PUW HDTV Cable

Home Telecast AV Broadcast SDI Fiber Optic Extender 3G-SDI Fiber Optic Extender 8-ch Bidirectional 3G-SDI Fiber Converte

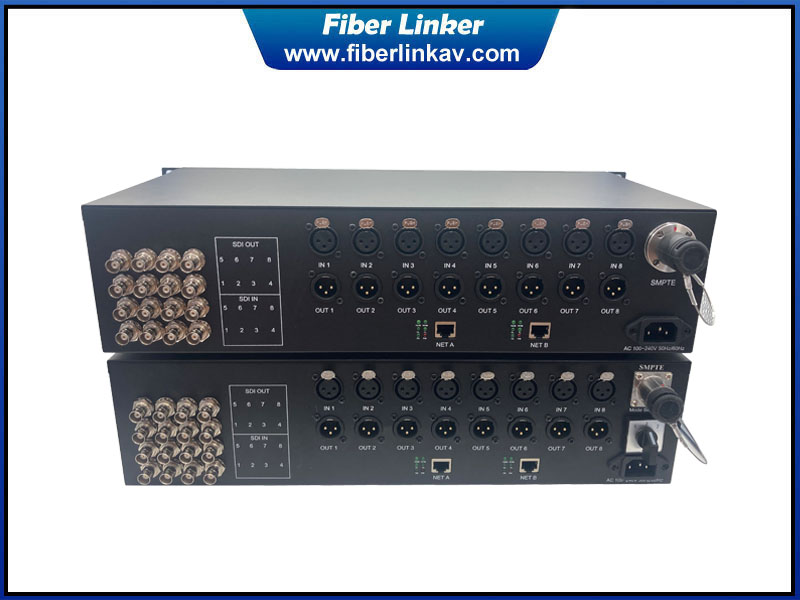

8-ch Bidirectional 3G-SDI Fiber Converter over SMPTE FUW-PUW HDTV Cable

  • Product Item:FLS88PSA
  • 8 channels bidirectional 3G-SDI over SMPTE
  • SMPTE FXW and EDW HDTV connector
  • Support bidirectional audio and Ethernet
  • Support FUW-PUW HDTV Hybrid Fiber cable
  • Category:3G-SDI Fiber Optic Extender
  • Inquiry Send Email Manual Download

    Description

    Description

    Fiber Linker company has been in video audio transmission system solution for over 10 years. This 3G-SDI fiber converter support 8-ch bidirectional 3G-SDI video signal with 8-ch bidirectinal XLR analog line audio and Ethernets over FXW and EDW connector.  SDI SMPTE FXW box support remote power supply to SDI SMPTE EDW box over a long FUW-PUW HDTV hybrid fiber cable. Our SDI fiber optic extender has been widely used overseas for Obvan transmission, TV television, live production and other broadcast projects. We could do SDI extender over fiber by CWDM, DWDM and TDM uncompressed solution with data, external audio Ethernet, tally, SYNC, Genlock and other functions. The fiber connectors could be ST, FC, SC, LC, SMPTE, LEMO type.

    Features

    1.8-ch forward 3G-SDI and 8-ch reverse 3G-SDI
    2.Support 2-ch Separate Gigabit Ethernet
    3.Support 8 forward and 8 reverse analog line audio
    4.Compatible with 3G-SDI, HD-SDI, SD-SDI
    5.Bandwidth range from 270Mb/s to 11.88Gb/s
    6.SMPTE ST 2082-1 (11.88Gb/s) clock recovery
    7.SMPTE 292M, 259M, 296M, 297M, 372M, 424M, 425M
    8.Support automatic cable equalization based on the data rate detected
    9.LED status indicators monitor the critical parameters
    10.SMPTE304M/SMPTE311M FXW and EDW connector
    11.Support remote power supply from EDW to FXW end
    12.Support OEM configuration according to real needs
    13.Optional CWDM or DWDM solution
    Specifications

    SDI Input

    Number

    8 input on TX box, 8 input on RX box

    TV signal standard

    SMPTE ST 424, SMPTE ST 425, SMPTE ST 292, SMPTE ST 259

    Reflection loss

    >4DB @12G

    Equilibrium

    >50M @ 12Gb/s

    Connector

    75Ω BNC

    SDI Output

    Number

    8 output on RX box, 8 output on TX box

    Signal level

    800mV nominal

    Rise/fall time

    <135ps @3G-SDI

    Overshoot

    <10% amplitude

    Reflection loss

    > 15dB

    Jitter

    < 0.5UI

    Connector

    75Ω BNC

    Ethernet

    RJ45 Connector

    2-ch Separate 1000M bandwidth

    Audio

    XLR connector

    8-ch bidirectional analog balance audio

    Fiber Optic

    Connector

    3K.93C FXW and EDW

    Type/Distance

    800meter with SMPTE hybrid fiber cable

    Wavelength

    CWDM

    Pure Fiber Distance

    10KM

    Output Power

    About +3 dB to -5dB

    Fiber Loss

    4 dB

    Power and Environmental

    Operating temperature

    -40℃~+45℃

    Power Supply

    110 to 245VAC and remote power supply

    Power Consumption

    About 12W

    EMI/RFI

    FCC Part 15 Class A, EU EMC standard

    MTBF

    >100000 hours

    Other

    Size

    2.5U rack mount

    Weight

    11Kg (TX+RX)

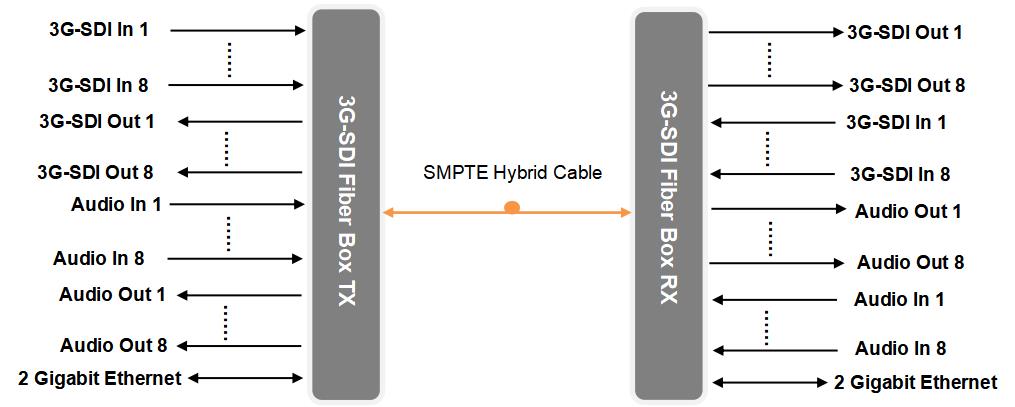

    Diagram
