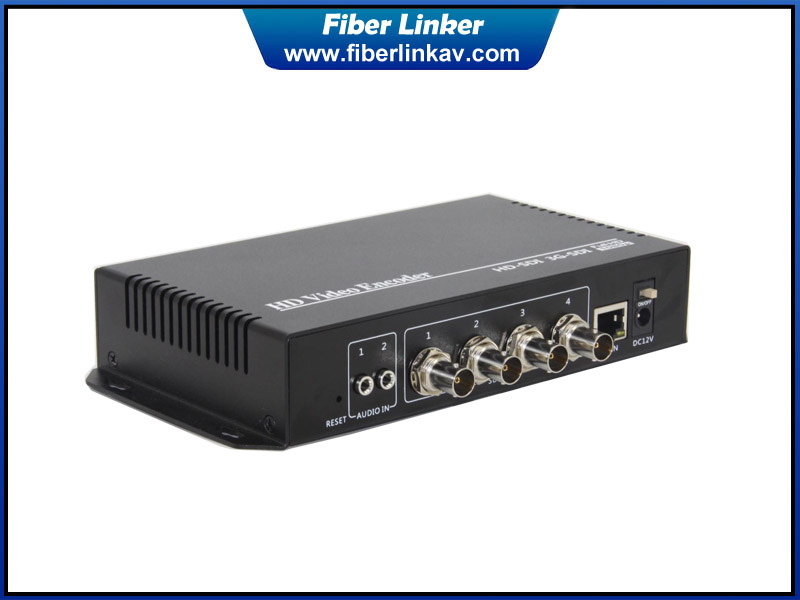

4 Channel IPTV H.265 SDI Encoder

Home Telecast AV Video Encoder 4 Channel IPTV H.265 SDI Encoder

4 Channel IPTV H.265 SDI Encoder

  • Product Item: FL-ES4500S
  • H.265 SDI Encoder
  • H.264 SDI Encoder
  • 4 channels SDI over IP
  • IPTV live media box
  • Category:Video Encoder
  • Inquiry Send Email Manual Download

    Description

    Description

    4 channel IPTV H.265 SDI Video Encoder is a professional HD audio & video live encoding device with powerful functionality. It supports H.265/H.264 encoding with 4 streams data, and equipped with 4 SDI channels input. It  supports H.265/H.264 main profiles video code format and AAC/MP3 audio code format.

    Its high integration and cost-effective design make this device widely used in the variety of field such as hotel IPTV system, live streaming broadcast, streaming media server etc. Also, the encoder works with the online live broadcast platform, such as YouTube, Ustream, Twitter, Facebook, etc.
    Not only single channel, we also produce multichannel SDI/HDMI video encoder which is packed with 1U /3U box. For 3U rack, support max 16pcs encoder cards to be installed.

    Features

    1.Support 4 channel 1080P 60fps SDI video
    2. H.265/H.264 main profile video code
    3.Support external audio input
    4.4 streams can transmit with different protocols
    5.0.16~32Mbps bit rate adjustable
    6.Support MP3/ AAC Advanced Audio Coding format quality
    7.Audio support left and right channels, support volume adjustment
    8.1000M network interface uses full duplex mode
    9.RTMP/RTMPS/SRT/RTSP/UDP/RTP/HTTP/HLS/FLV/TS/ONVIF protocols
    10.WEB Manager,CGI Command
    11.Support network remote management and upgrade.
    12.Supports mainstream and multi-protocol sub-stream output
    13.Support output resolution setting independently
    14.Low network delay, less than 200ms

    Specifications

    Video

    Input interface

     4x HD/3G-SDI

    Support resolution

    1920x1080@60P/50p,1920x1080@60i/50i/1280x720@60p/50p 720x576i/720x480i

    Encoding

     H.265 HEVC,H.264/AVC Baseline/Main/High Profile Level 4.2

    Video encoding

     H.264 Baseline Profile, H.264 Main Profile, H.264 High Profile

    Encoding Output FPS

     1080P60

    Data Rate

     0.16Mbps~32Mbps

    Rate Control

     CBR/VBR

    GOP Structure

    IBBP

    Advanced Pretreatment

    De-interlacing, Image Enhancement,Noise Reduction, Sharpening

    Latency Time

    100ms

    Audio

    Input

    4xSDI,2x3.5mm

    Encoding

    AAC/AAC+/MP3/MP2/AC3/G.711A/U

    Sampling rate

    44100/48000 Hz

    Bit-rate

    32K/48K/64K/96K/128K/160K/192K/384K

    Sampling precision

    24 bit

    Network

    RJ45

     10M/1000M Ethernet port

    Program streaming

     HTTP UTP RTSP RTMP HLS FLV UDP unicast/multicast ONVIF

    Control Panel

     WEB Manager,CGI Command

    Firmware Update

     Enable by uploading files to the dashboard

    General

    Dimension (W×L×H)

    230x150x44mm

    Packing Box(WxLxH)

    300x220x60mm

    Net Weight/Gross Weight

    0.5kg/1.2kg

    Temperature

    0-45(work),-20-80(storage)

    Power

    12V DC 2A

    Consumption

    15w

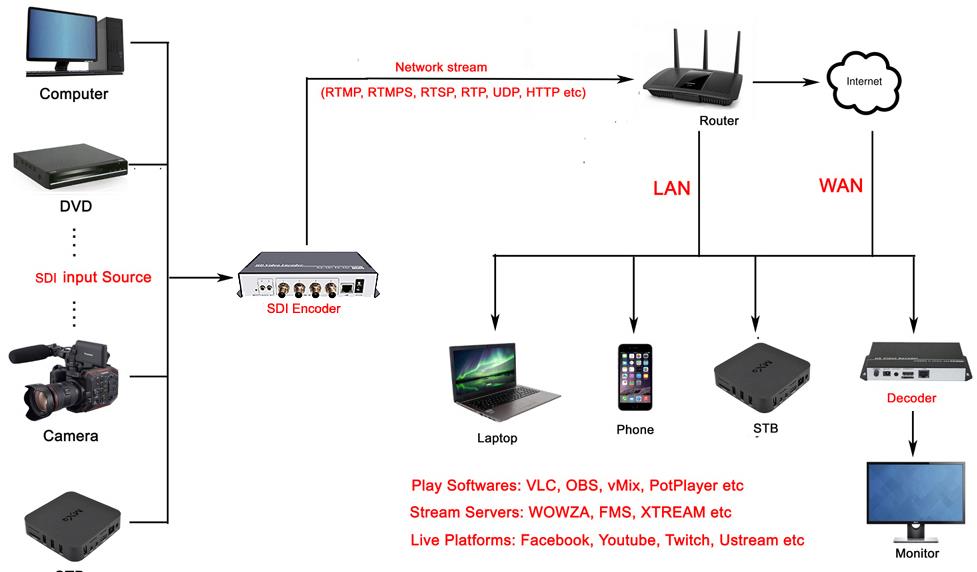

    Digram
