2MPX AHD CVI TVI Fiber Converter with 1 channel

Home Fiber Optic Analog HD Video Fiber Converter AHD CVI TVI Fiber Converter 2MPX AHD CVI TVI Fiber Converter with 1

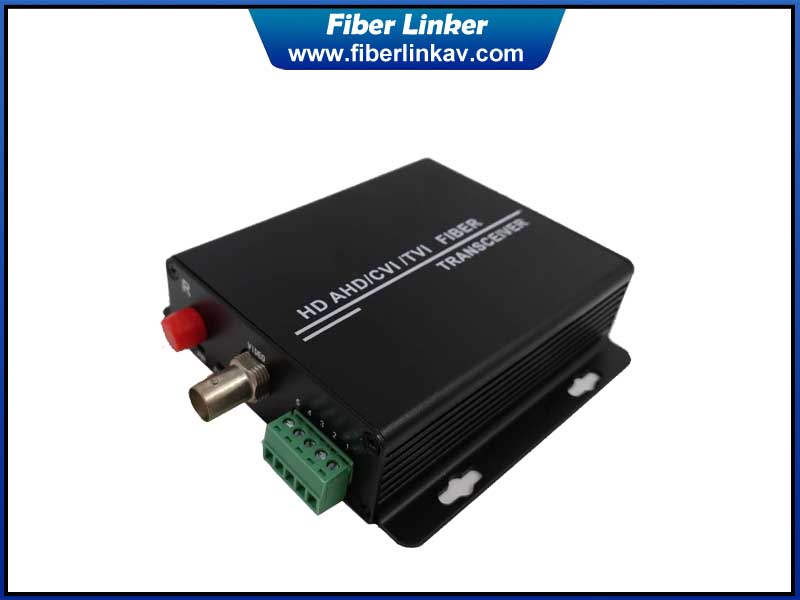

2MPX AHD CVI TVI Fiber Converter with 1 channel

  • Product Item:FL501
  • TVI/CVI/AHD/CVBS in one
  • 2MPX
  • Optional 5MPX
  • optional RS232, 422, 485
  • Category:AHD CVI TVI Fiber Converter
  • Inquiry Send Email

    Description

    Description

    HD TVI/CVI/AHD/CVBS 4 in 1 Video to Fiber Converter can simultaneously transmit 1 channel HD TVI/CVI/AHD/CVBS video over one single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment.HD TVI/CVI/AHD/CVBS Video to fiber converters adopt the advanced uncompressed HD composite video and high velocity digital optical transmission

    Features

    1. Non-compression coding technology
    2. Automatically identify formats of input videos
    3. Support transmission of HD TVI/CVI/AHD/CVBS signal and controlling data simultaneously though fiber optic cable
    4. DC 5V power supply
    5. Support 720p/25、720p/30、720p/50、720p/60、1080p/25、1080p/30 videos etc
    6. Through LED indicators to inform its functional mode
    7. Industrial wide range of operational temperature
    8. Plug and play, simple installation
    9. We could do 5MPX TVI/CVI/AHD fiber converter for your choice

    Specification

    Optic

    Fiber Connector

    FC/ST/SC

    Distance

    20KM (Single-mode fiber), 1KM(multimode fiber)

    Wavelength

    1310nm, 1550nm, or CWDM Wave

    Fiber Power/Receiver Sensitivity

    -9~ +3dBm/-5 to -24dBm

    Video

    Video Interface Number

    1 channel BNC

    Tx Input level/ Rx Output level

    >500mVp-p / 1-1.2Vp-p

    Bandwidth of Video

    50M(720P)  100M(1080P)

    Differential Phase/ Gain

    ≤ 2 / ≤ 2%

    Input/Output Impedance

    75 Ω

    Surge Protection

    10/700us:(1-1.5kv)

    Sampling Digit / Frequency

    10 Bit / 60Mhz

    Data

    Serial Signal

    1-ch reverse RS485 ( RS232, RS422 optional)

    Baud Rate

    0-400Kbps  terminal block

    Others

    Working Temperature

    -40℃~+85℃

    Relative Humidity

    0-95% ( no condensation)

    MTBF

    ≥100 000 hours

    Power Suppl

    DC5V

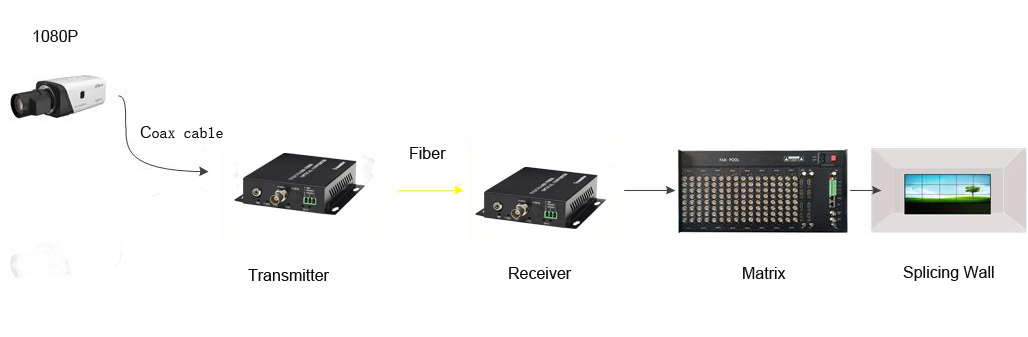

    Diagram
