2-ch Forward Broadcast Audio Fiber Extender with Analog XLR

Home Telecast AV Audio Fiber Optic Extender 2-ch Forward Broadcast Audio Fiber Exten

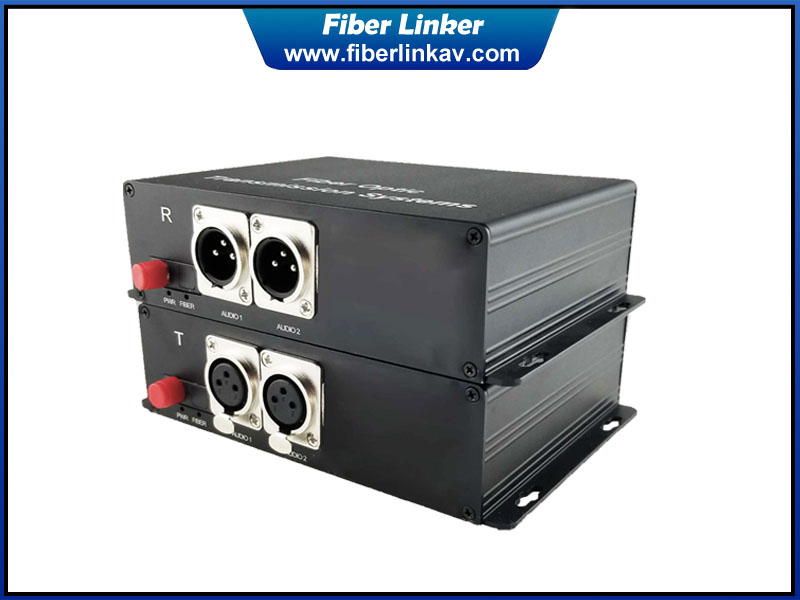

2-ch Forward Broadcast Audio Fiber Extender with Analog XLR

  • Product Item:FLA20
  • Broadcast audio over fiber
  • 2-ch forward analog audio
  • single core fiber transmission
  • Optional max 64 channels
  • Category:Audio Fiber Optic Extender
  • Inquiry Send Email Manual Download

    Description

    Description

    The broadcast analog audio fiber extender is to transmit 2-ch unidirectional balance audio over single core optical fiber caber to a long distance. This extender contains an electrical to optical converter and an optical to electrical converter. It takes most advantage of fiber cable anti-interference and reliability to make sure the original source audio could be transmitted to a remote place. We could supply analog audio or digital AES/EBU audio fiber box with different configurations according to your actual project request. We could use CWDM and CWDM to make multiple channels transmitted over single core fiber cable

    Features

    1. 2-ch forward audio over single core fiber
    2. Balanced analog audio with XLR connector
    3. Broadcast quality level with high integration and stability
    4. FPGA solution, digital coding/decoding and clock recovery technology
    5. Automatic high-pass filtering, isolation of DC offset
    6. Intelligent noise control system for soft rising or falling slant waves and analog noise with 100dB SNR in blast-free operation
    7. Single fiber, ST/SC/FC/LC fiber port optional
    8. Single mode for 20KM standard, optional 100KM max
    9. LED status indicators monitor the critical parameters
    10. could be 64 channels of audio over single core fiber
    11. We could make it as your requested specifications like mixing with other SDI/DVI/HDMI/DP/VGA video signal

    Specifications

    Audio Number

    2 input on TX and 2 output on RX

    Audio physical interface

    Carnon head female/male

    Signal level

    0.5-4Vp-p

    Dynamic bandwidth

    101 dB

    Total harmonic distortion (THD)

    -90 dB

    Sampling frequency

    192 KHz

    Audio A/D sampling

    24 Bit

    Signal to noise ratio(SNR)

    100 dB

    Amplitude frequency characteristic

    ≤±0.5 dB

    Audio input/output impedance

    600 Ω balance

    Audio maximum input/output voltage

    0~4V /0~2.5V

    Audio gain

    ±0.1 dB

    Maximum input level

    ≥9.5 dBm

    Non-linear distortion

    ≤0.2%

    Fiber Channel

    1

    Wavelength

    1310nm&1470nm~1610nm(selection is based on device function)

    Tx fiber power

    >-7db

    Rx fiber sensitivity

    >-24db

    Fiber connector

    FC(SC,ST,LC optional)

    Operating temperature

    -20°C ~ 70°C

    Storage temperature

    -40°C ~ 85°C

    Relative humidity

    5 to 95%(non-condensing)

    Working life

    >100, 000hours

    Desktop

    DC 12V1A

    Rack

    AC 110~240V 50/60Hz

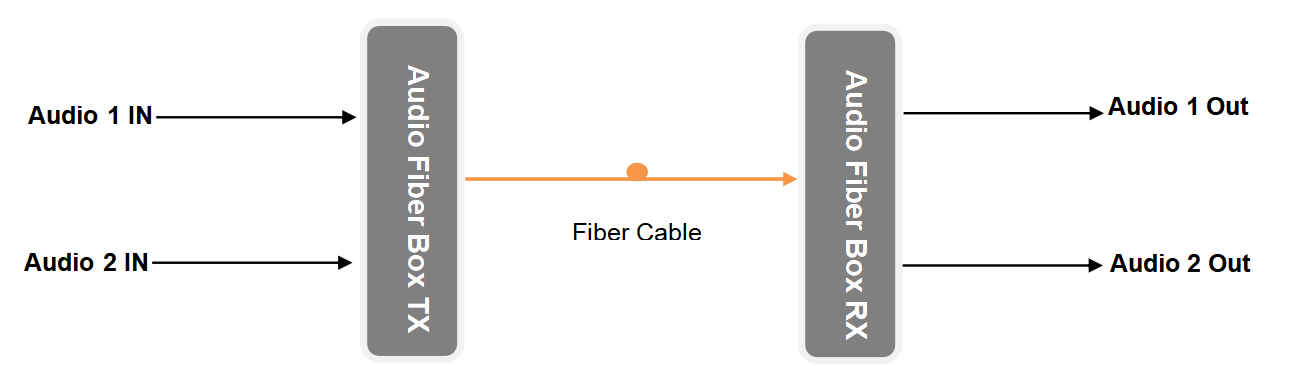

    Diagram
